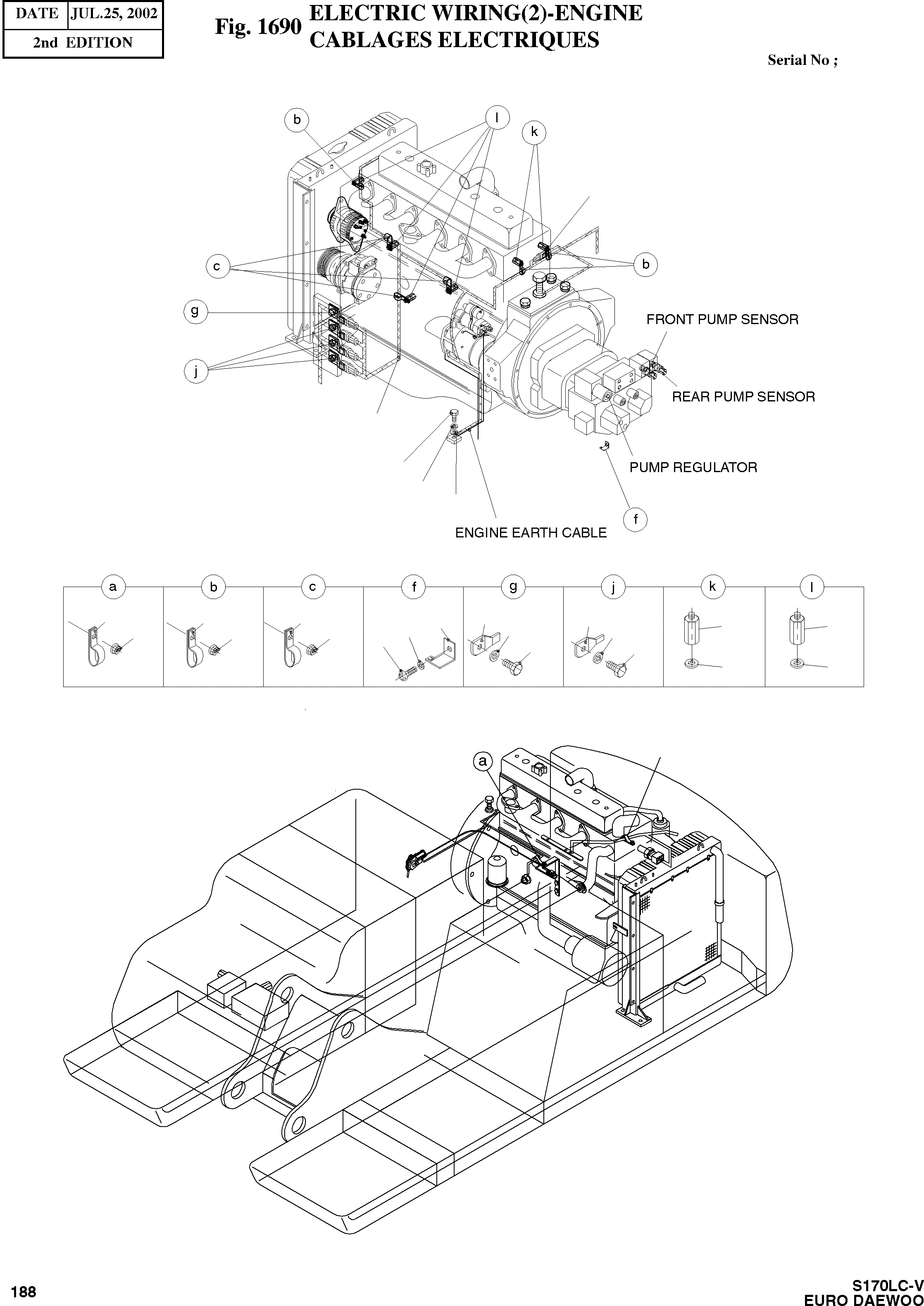

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-ENGINE BODY PARTS

-

500-00019A

ELECTRIC WIRING(2)-ENGINE

SC: D

-2шт.

3

530-00125

HARNESS;ENGINE

SERIAL: 1-50220

1шт.

3

530-00125A

HARNESS;ENGINE

SERIAL: 50221

1шт.

15

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

1шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

1шт.

17

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

18

2195-3500

BRACKET;HOUSING

desc: SUPPORT

1шт.

19

S3450953

SCREW M6X1.0X12

desc: VIS

1шт.

20

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER M6

1шт.

21

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

1шт.

22

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

24

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER M8

4шт.

25

2120-2151

BOLT;STUD

desc: BOULON A 6 PANS

4шт.

26

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

6шт.

34

2124-1509D1

CLIP ҐХ12/M8

desc: ATTACHE

1шт.

35

2124-1509D2

CLIP ҐХ18/M8

desc: ATTACHE

3шт.

36

2124-1509D3

CLIP ҐХ24/M8

desc: ATTACHE

3шт.

39

2121-1305

NUT M8X1.25

desc: ECROU

7шт.

43

120-00121

BOLT;STUD

desc: BOULON A 6 PANS

2шт.
