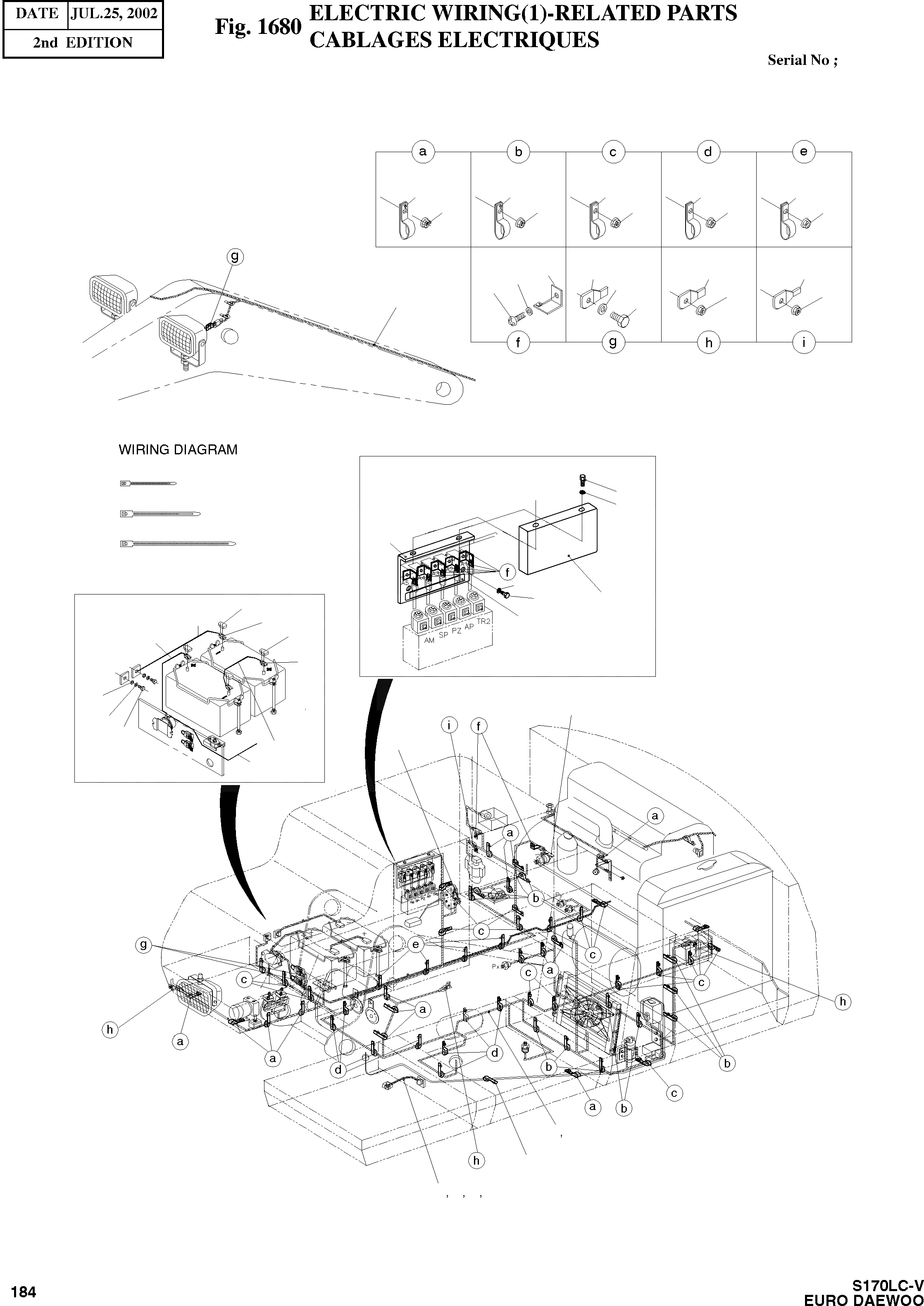

Запчасти Doosan Daewoo ELECTRIC WIRING(1)-RELATED PARTS BODY PARTS

-

500-00019A

ELECTRIC WIRING(1)-RELATED

SC: D

-2шт.

1

599-00008B

WIRING DIAGRAM

desc: DIAGRAMME DE CIRCUIT

1шт.

2

530-00029C

HARNESS;MAIN

desc: FAISCEAU

1шт.

2A

2548-1027

DIODE 3A

desc: . DIODE

15шт.

4

2530-1609D1

HARNESS;WORKING LAMP

desc: FAISCEAU

1шт.

5

2530-1400

HARNESS;PRESS SWITCH

desc: FAISCEAU

1шт.

6

2550-1014D1

TERMINAL;BATTERY(+)

desc: COSSE DE BATTERIE(+)

2шт.

7

2550-1014D2

TERMINAL;BATTERY(-)

desc: COSSE DE BATTERIE

2шт.

8

2160-1212

CAP;BATT. TERMINAL(+)

desc: CHAPEAU DE CAOUTCHOUC

2шт.

9

2160-1213

CAP;BATT. TERMINAL(-)

desc: BOUCHON

2шт.

10

2553-1275D22

CABLE;BATT-EARTH 60B-L400

desc: CABLE BATTERIE A BATTERIE

1шт.

11

2553-1275D6

CABLE;BATT-BATT 60R-L250

desc: CABLE

1шт.

12

2553-1275D32

CABLE;BATT-BATT RELAY

desc: CABLE

1шт.

13

2553-1275D45

CABLE;BATT RY-STARTER 60R-L3550

desc: CABLE

1шт.

14

2553-1275D5

CABLE;FL PLATE-EARTH 60B-L300

desc: CABLE

1шт.

15

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

4шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

4шт.

17

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

18

2195-3500

BRACKET;HOUSING

desc: SUPPORT

8шт.

19

S3450953

SCREW M6X1.0X12

desc: VIS

7шт.

20

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER M6

7шт.

21

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

7шт.

22

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

1шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

24

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER M8

4шт.

27

2891-1406A

PLATE

desc: PLAQUE

1шт.

28

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

29

S5102503

WASHER;SPRING

desc: RONDELLE GROWER M8

2шт.

30

621-00254B

COVER

desc: CAPOT

1шт.

31

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

32

S5102503

WASHER;SPRING

desc: RONDELLE GROWER M8

2шт.

33

2190-3268A

PLATE

desc: PLAQUE

1шт.

34

2124-1509D1

CLIP ҐХ12/M8

desc: ATTACHE

14шт.

35

2124-1509D2

CLIP ҐХ18/M8

desc: ATTACHE

11шт.

36

2124-1509D3

CLIP ҐХ24/M8

desc: ATTACHE

18шт.

37

2124-1509D4

CLIP ҐХ30/M8

desc: ATTACHE

8шт.

38

2124-1509D5

CLIP ҐХ36/M8

desc: ATTACHE DE TUYAU

4шт.

39

2121-1305

NUT M8X1.25

desc: ECROU

51шт.

40

2124-1622D1

CLIP;BAND L146

desc: ATTACHE

10шт.

41

2124-1622D2

CLIP;BAND L200

desc: ATTACHE

30шт.

42

2124-1622D3

CLIP;BAND L280

desc: ATTACHE

10шт.
