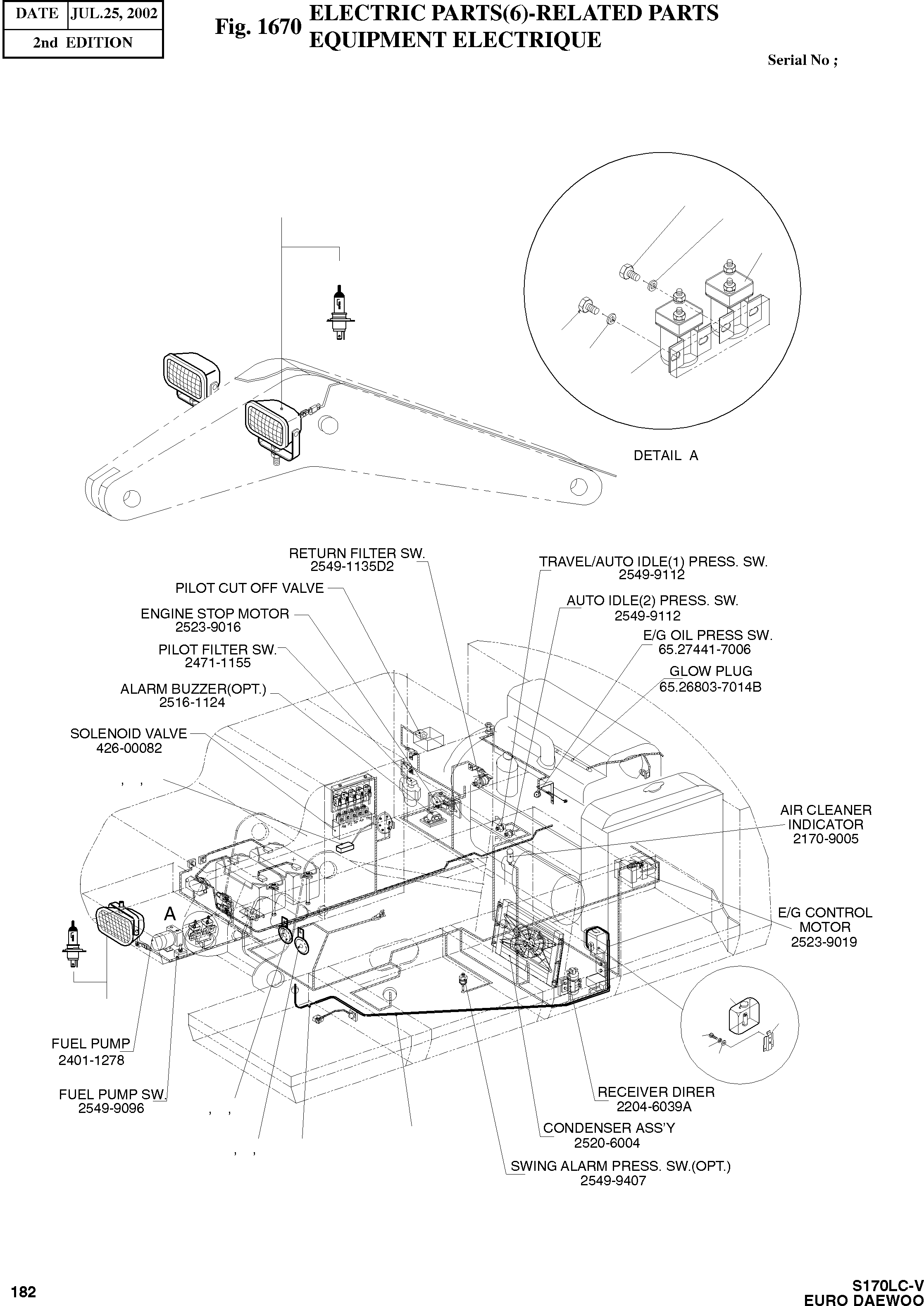

Запчасти Doosan Daewoo ELECTRIC PARTS(6)-RELATED PARTS BODY PARTS

-

500-00018A

ELECTRIC PARTS(6)-RELATED PARTS

SC: D

-2шт.

15

2544-1022

RELAY;PREHEAT

desc: RELAIS DEMARREUR

1шт.

16

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

17

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER M6

2шт.

18

2544-1022

RELAY;STARTER

desc: RELAIS DEMARREUR

1шт.

19

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

20

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER M6

2шт.

21

2554-9005A

WASHER;WINDOW 4000L

desc: RONDELLE

1шт.

22

2195-1534

BRACKET

desc: SUPPORT

1шт.

23

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

24

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER M6

2шт.

25

S5010313

WASHER;PLAIN M6

desc: RONDELLE

2шт.

26

2415-1018

ADAPTER;HOSE

desc: RACCORD ADAPTATEUR

1шт.

27

2185-1681D1

TUBE;CORRUGATE 4M

desc: FLEXIBLE

1шт.

28

2534-1160

LAMP;HEAD 24V 70W

desc: PROJECTEUR DE FLENCHE

1шт.

28A

2515-1022D1

BULB;HALOGEN 24V 70/75W

desc: . AMPOULE

1шт.

29

2534-1160

LAMP;HEAD 24V 70W

desc: PROJECTEUR DE FLENCHE

2шт.

29A

2515-1022D1

BULB;HALOGEN 24V 70/75W

desc: . AMPOULE

1шт.

30

2516-9018

HORN(H.F)

desc: AVERTISSEUR

1шт.

31

2516-9019

HORN(L.F)

desc: AVERTISSEUR

1шт.

32

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

33

S5102503

WAHSER;SPRING M8

desc: RONDELLE GROWER M8

2шт.

36

2547-9035

SENSOR;FUEL

desc: CAPTEUR

1шт.

37

S3450833

SCREW M5X0.8X12

desc: VIS

6шт.

38

S5100203

WASHER;SPRING M5

desc: RONDELLE GROWER M5

6шт.
