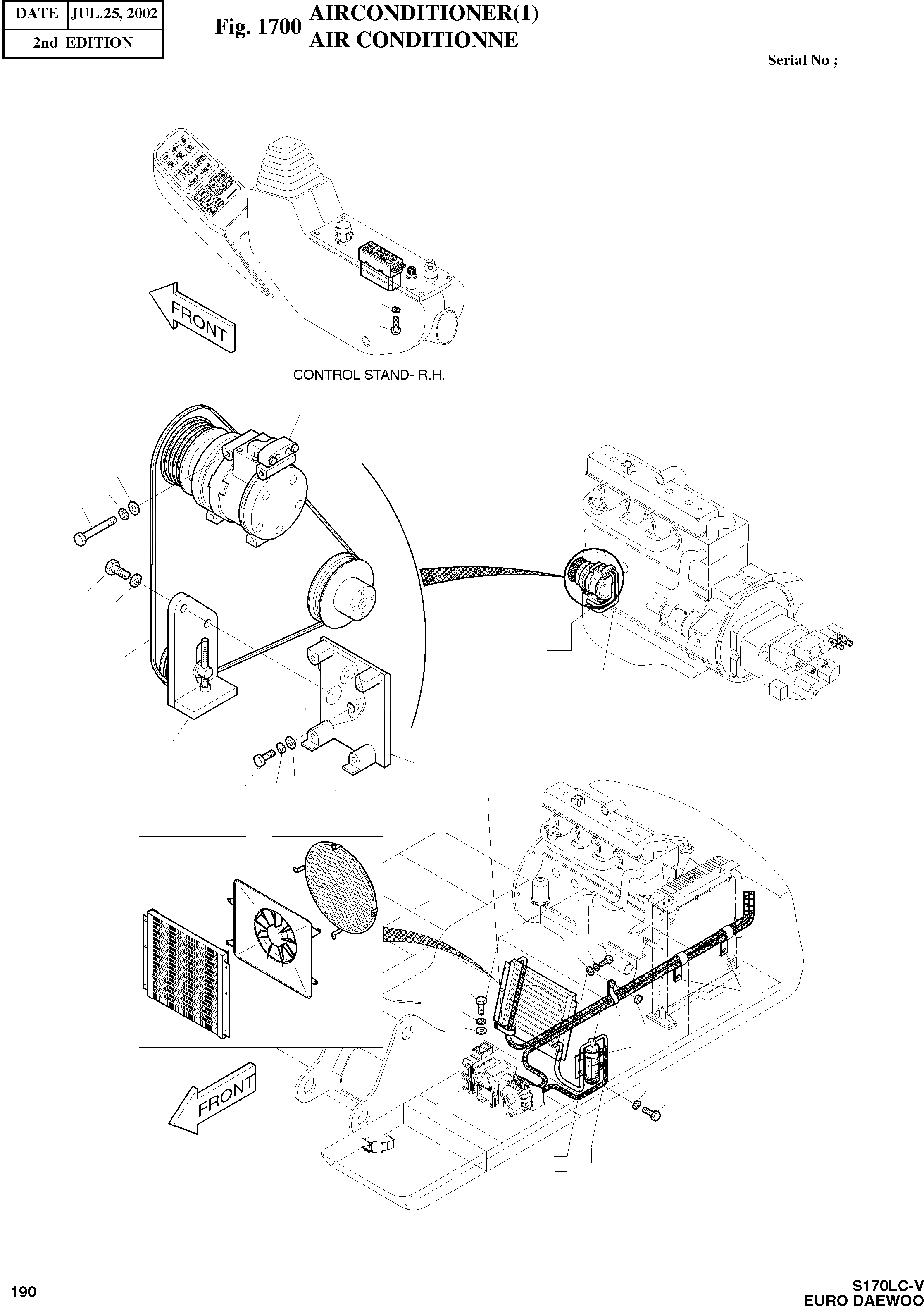

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

920-00005A

COOLER & HEATER ASS'Y

SC: D

-2шт.

1

2543-9031A

PANEL;AIRCON CONTROL

desc: PANEL

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN M4

desc: RONDELLE PLATE

4шт.

4

2208-6013B

COMPRESSOR 10PA 15C(4PK)

desc: COMPRESSEUR

1шт.

5

S0557153

BOLT M8X1.25X90

desc: BOULON A 6 PANS

4шт.

6

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER M8

4шт.

7

S5010513

WASHER;PLAIN M8

desc: RONDELLE M8

4шт.

8

2197-1798B

BRACKET;COMPRESSOR

desc: SUPPORT

1шт.

9

S0712153

BOLT M10X1.25X28

desc: BOULON A 6 PANS

4шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

4шт.

11

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

12

2107-6006

PULLEY ASS'Y;IDLE 4PK

desc: ENSEMBLE POULIE FOU

1шт.

13

S0759853

BOLT M10X1.25X115

desc: BOULON A 6 PANS

2шт.

14

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

2шт.

15

2106-1019D10

BELT;V 4PK 990L

desc: COURROIE-V

1шт.

16

2185-1706

HOSE;DISCHARGE L2580

desc: FLEXIBLE

1шт.

16A

2180-6088

O-RING(COMP) ҐХ11/T2.4

desc: . JOINT TORIQUE

1шт.

16B

2180-6089

O-RING(COND) ҐХ10.77/T1.78

desc: . JOINT TORIQUE

1шт.

17

2185-1703B

HOSE;SUCTION L2795

desc: FLEXIBLE

1шт.

17A

2180-6086

O-RING(COMP) ҐХ14.8/T2.4

desc: . JOINT TORIQUE

1шт.

17B

2180-6087

O-RING(EVA) ҐХ13.9/T1.78

desc: . JOINT TORIQUE

1шт.

18

2520-6004

CONDENSER ASS'Y

desc: ENSEMBLE COMPRESSEUR

1шт.

18A

2520-6005

CONDENSER CORE ASS'Y

desc: . ENSEMBLE COMPRESSEUR

1шт.

18B

2538-6018

MOTOR ASS'Y;FAN 24V 160W

desc: . MOTEUR

1шт.

18C

2520-6006

NET;CONDENSER

desc: . ENSEMBLE COMPRESSEUR

1шт.

19

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

6шт.

20

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

6шт.

21

S5010613

WASHER;PLAIN M10

desc: RONDELLE

6шт.

22

2185-1697D2

HOSE;LIQUID(1) L430

desc: FLEXIBLE

1шт.

22A

2180-6090

O-RING ҐХ6.07/T1.78

desc: . JOINT TORIQUE

2шт.

23

2185-1698D1

HOSE;LIQUID(2) L1115

desc: FLEXIBLE

1шт.

23A

2180-6090

O-RING ҐХ6.07/T1.78

desc: . JOINT TORIQUE

2шт.

24

2204-6039A

RECEIVER DRIER

desc: RESERVOIR DESSICATEUR

1шт.

25

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

26

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER M8

2шт.

28

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

6шт.

29

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER M8

6шт.

30

2114-1058D29

WAHSER

desc: RONDELLE

6шт.

38

2124-1509D5

CLIP ҐХ36/M8

desc: ATTACHE DE TUYAU

1шт.

39

2124-1509D6

CLIP ҐХ42/M8

desc: ATTACHE

2шт.

40

2121-1305

NUT M8X1.25

desc: ECROU

2шт.

42

2124-1509D2

CLIP ҐХ18/M8

desc: ATTACHE

1шт.
