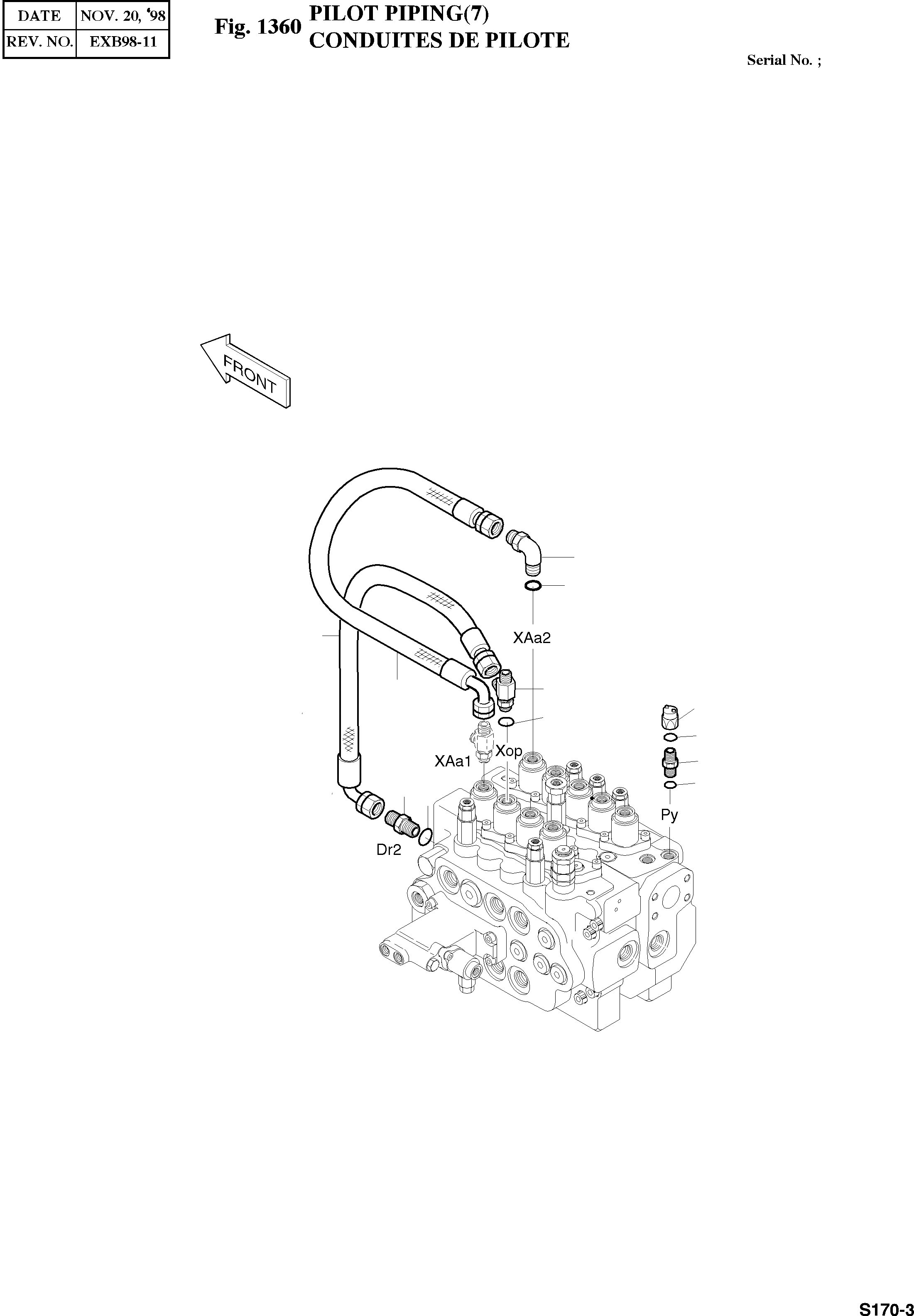

Запчасти Doosan Daewoo PILOT PIPING(7) UPPER STRUCTURE

-

2400-1750

PILOT PIPING

SERIAL: 1-53

-

2400-1882

PILOT PIPING

SERIAL: 54

28

2181-1951D1

TEE PF1/4(O)XPF1/4XPF1/4

desc: TE

1шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

4шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD

1шт.

31

2181-1702D4

ELBOW 90ЎЈ PFO1/4XPF1/4

desc: COUDE

1шт.

34

2181-2337D1

REDUCER 2-PF1/4

desc: REDUCTEUR

1шт.

35

2549-1135D1

SWITCH;PRESSURE

desc: INTERRUPTEUR

1шт.

35

2549-9112

SWITCH;PRESSURE

desc: INTERRUPTEUR

1шт.

45

2184-1061D4

HOSE PF1/4-405L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1046D215

HOSE PF1/4-320L

desc: TUYAU FLEXIBLE

1шт.
