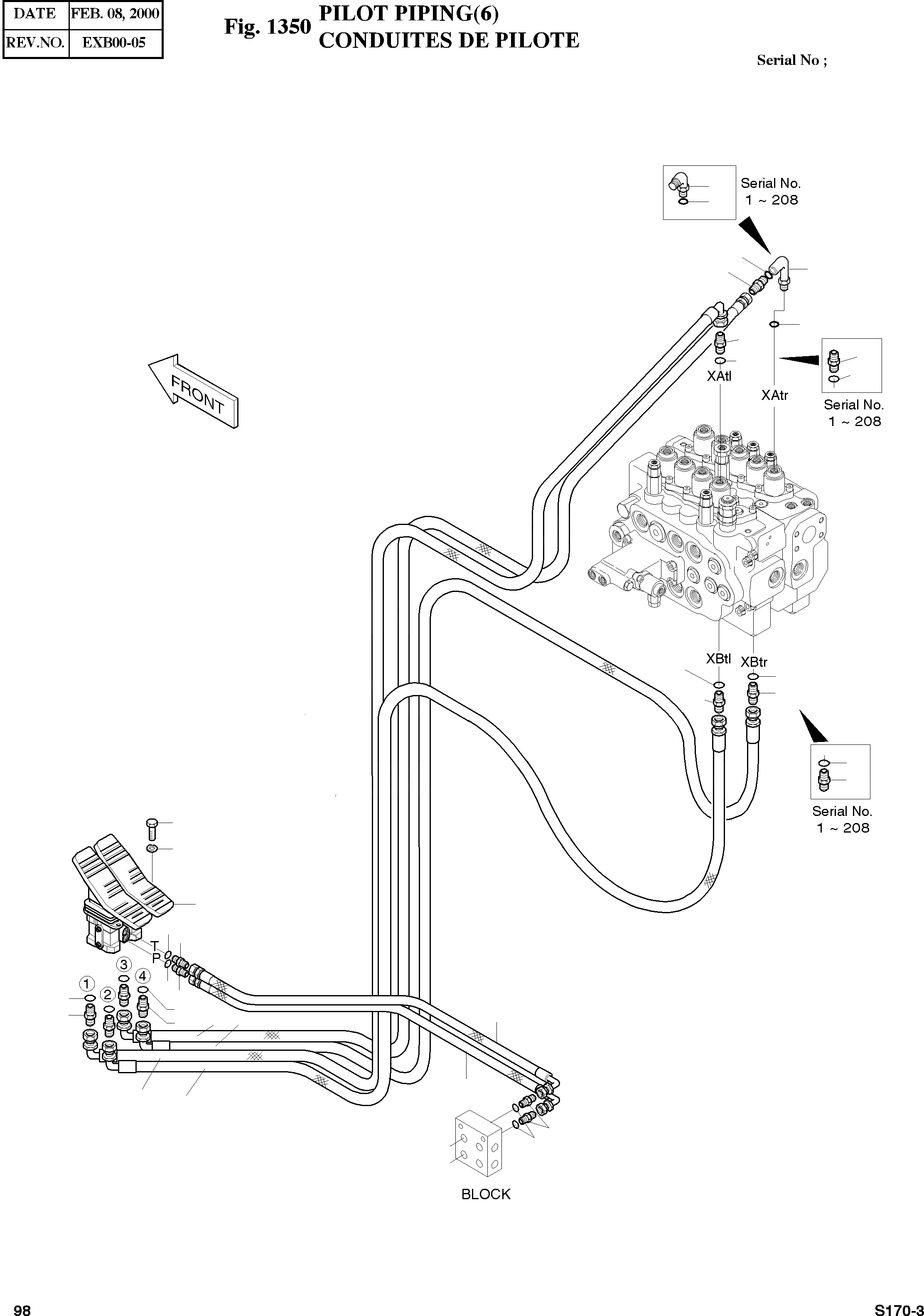

Запчасти Doosan Daewoo PILOT PIPING(6) UPPER STRUCTURE

-

2400-1750

PILOT PIPING

SERIAL: 1-53

-

2400-1882

PILOT PIPING

SERIAL: 54

5

2420-9292

VALVE;REMOTE CONTROL

SERIAL: 1-208

1шт.

5

420-00001

VALVE;REMOTE CONTROL

SERIAL: 209

1шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

29

S8000111

O-RING P11

SERIAL: 1-208

12шт.

29

S8000111

O-RING P11

SERIAL: 209

13шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

SERIAL: 1-208

9шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

SERIAL: 209

7шт.

31

2181-1702D4

ELBOW 90ЎЈ PFO1/4XPF1/4

SERIAL: 1-208

1шт.

43

2471-1133

FILTER;ADAPTER

desc: RACCORD

1шт.

47

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

48

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1061D51

HOSE PF1/4-2800L

desc: TUYAU FLEXIBLE

1шт.

87

2184-1046D188

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1046D135

HOSE PF1/4-2500L

desc: TUYAU FLEXIBLE

1шт.

89

2184-1046D194

HOSE PF1/4-2800L

desc: TUYAU FLEXIBLE

1шт.

123

2181-2822D21

ADAPTER

SERIAL: 209

4шт.

124

2181-2295D4

ELBOW

SERIAL: 209

1шт.
