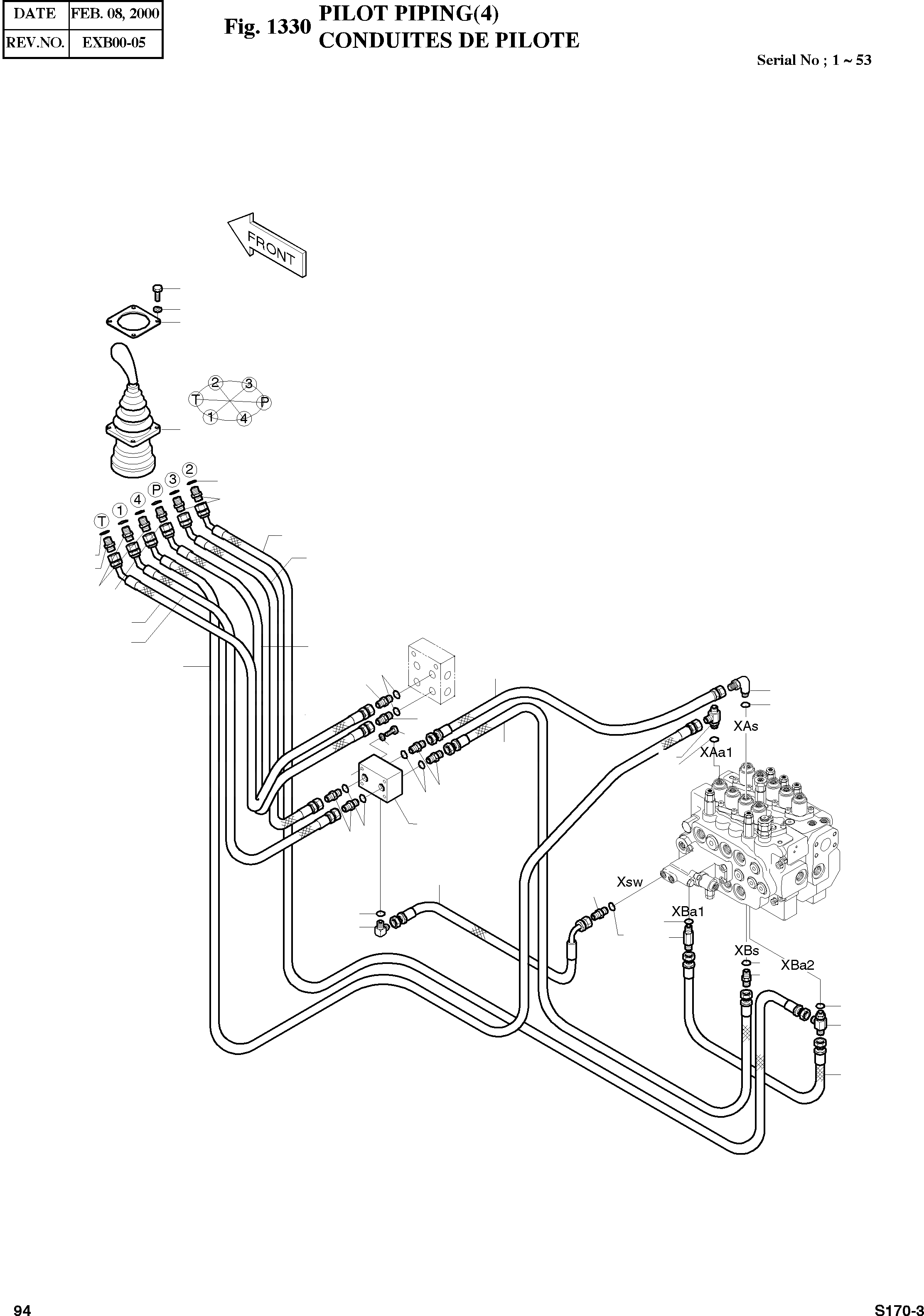

Запчасти Doosan Daewoo PILOT PIPING(4) UPPER STRUCTURE

-

2400-1750

PILOT PIPING

SERIAL: 1-53

1

2420-9523

VALVE;REMOCON(L.H.)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

3

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

10

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

13

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

14

2420-9158

BLOCK;VALVE

desc: CLAPET BALADEUR

1шт.

15

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

28

2181-1951D1

TEE PF1/4(O)XPF1/4XPF1/4

desc: TE

2шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

19шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD

11шт.

31

2181-1702D4

ELBOW 90ЎЈ PFO1/4XPF1/4

desc: COUDE

1шт.

44

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

4шт.

50

2184-1045D61

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1045D105

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D172

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1249D28

HOSE (S-120)3/8 1820L

desc: TUYAU FLEXIBLE

1шт.

77

2184-1249D28

HOSE (S-120)3/8 1820L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1249D7

HOSE (S-120)1/4 3100L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1249D6

HOSE (S-120)1/4 3300L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1249D15

HOSE (S-120)1/4 1400L

desc: TUYAU FLEXIBLE

1шт.

81

2184-1249D15

HOSE (S-120)1/4 1400L

desc: TUYAU FLEXIBLE

1шт.

109

2420-9378A

VALVE;SHOCKLESS

desc: VANNE

1шт.
