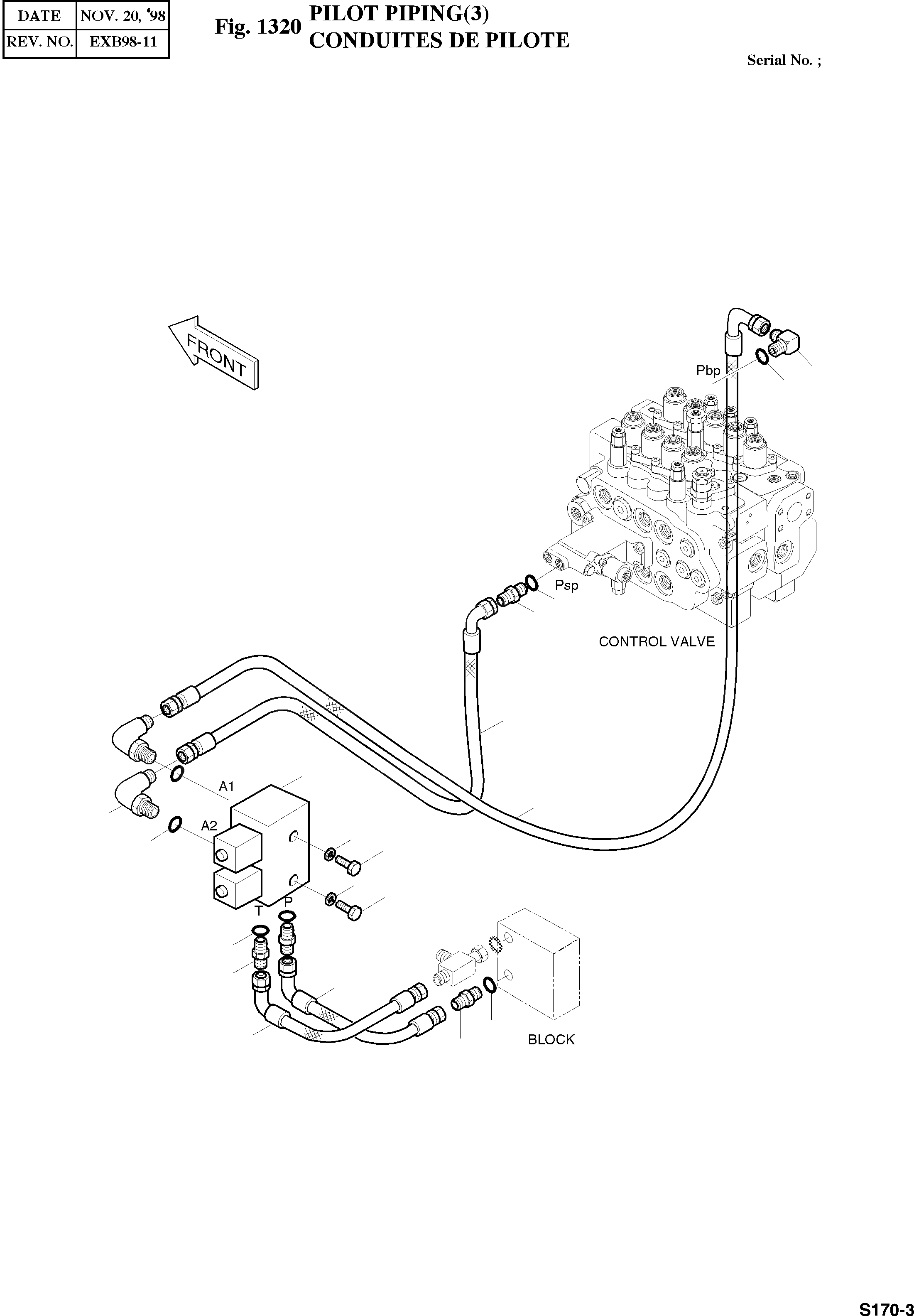

Запчасти Doosan Daewoo PILOT PIPING(3) UPPER STRUCTURE

-

2400-1750

PILOT PIPING

SERIAL: 1-53

-

2400-1882

PILOT PIPING

SERIAL: 54

8

2420-9313

VALVE;E.P.P.R

desc: VANNE

1шт.

9

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

2шт.

10

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

7шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD

4шт.

31

2181-1702D4

ELBOW 90ЎЈ PFO1/4XPF1/4

desc: COUDE

2шт.

40

2181-1702D4

ELBOW 90ЎЈ PFO1/4XPF1/4

SERIAL: 1

1шт.

54

2184-1046D153

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1046D149

HOSE PF1/4-1800L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1046D146

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1046D153

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.
