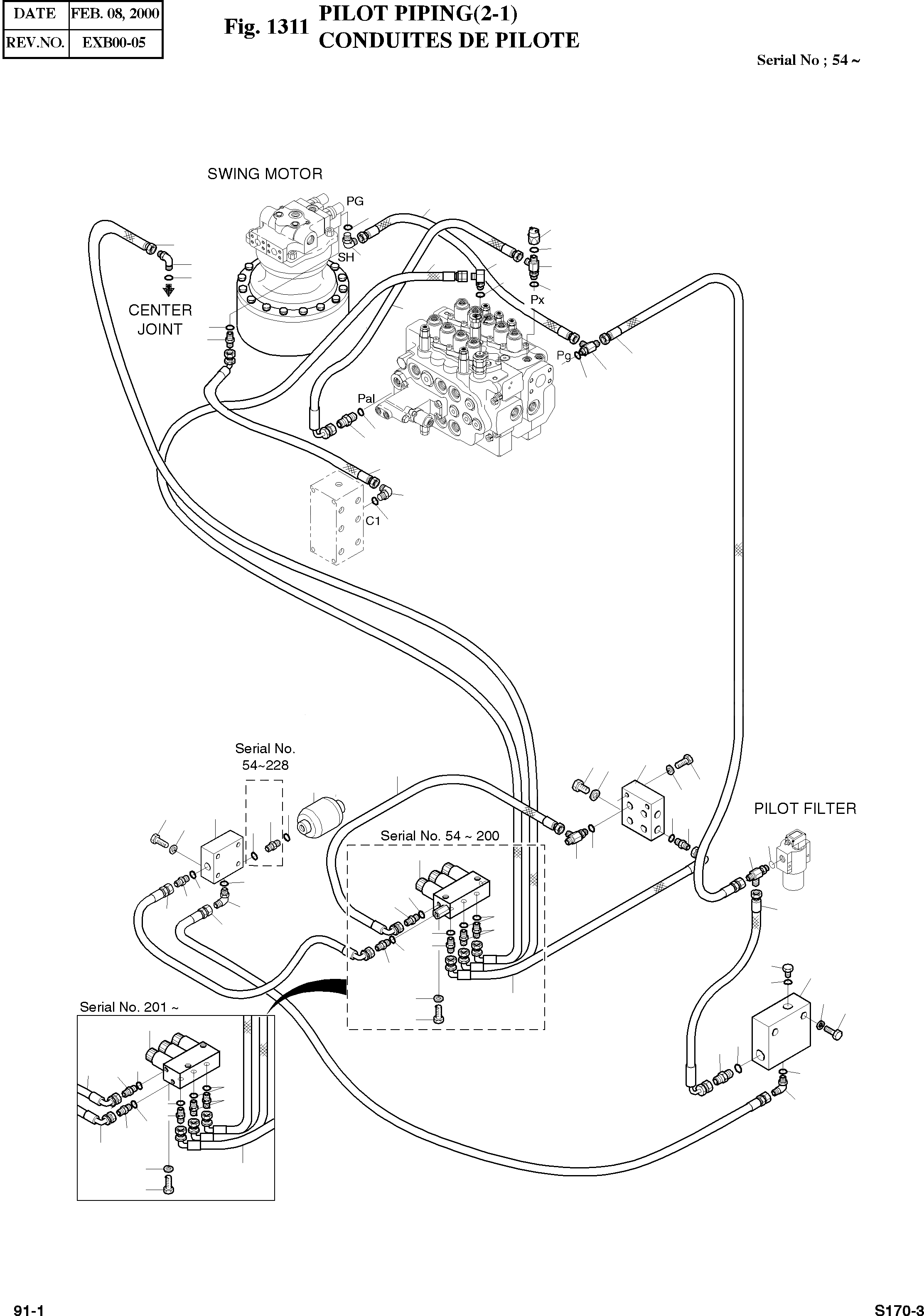

Запчасти Doosan Daewoo PILOT PIPING(2-1) UPPER STRUCTURE

-

2400-1882

PILOT PIPING

SERIAL: 54

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

10

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

6шт.

12

2420-9323C

VALVE;SOLENOID

SERIAL: 54-200

1шт.

12

2420-9323E

VALVE;SOLENOID

SERIAL: 201

1шт.

15

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

4шт.

16

2423-1316

BLOCK

desc: BLOC

1шт.

17

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

19

2181-1951D8

TEE PF1/2(O)XPF1/2XPF1/4

desc: TE

1шт.

23

2460-9033

ACCUMULATOR 0.32L

SERIAL: 54-228

1шт.

23

2460-9057

ACCUMULATOR

SERIAL: 229

1шт.

24

2181-2256A

ADAPTER PF1/2(O)XPF1/2

SERIAL: 54-228

1шт.

25

S8180321

RING;SEAL

SERIAL: 54-228

1шт.

26

2181-1126D6

ADAPTER PF1/2(O)XPF1/2

desc: RACCORD

2шт.

27

S8000181

O-RING P18

REP_PNO: 8202-014

7шт.

28

2181-1951D1

TEE PF 1/4(O)XPF1/4XPF1/4

desc: TE

2шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

13шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD

6шт.

31

2181-1702D4

ELBOW PF1/4(O)XPF1/4

desc: COUDE

3шт.

32

2181-1126D7

ADAPTER PF3/8(O)XPF3/8

desc: RACCORD

1шт.

33

2181-2636

TEE PF1/4(O)XPF1/4XPT1/4

desc: TE

1шт.

35

2549-9112

SWITCH;PRESSURE 19Ўѕ0.5K

desc: INTERRUPTEUR

1шт.

37

2181-1126D23

ADAPTER PF1/2(O)XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

38

2181-1950D3

PLUG PF(O)1/2

desc: BOUCHON

2шт.

41

2181-1126D54

ADAPTER PF3/8(O)XPF1/2

desc: COUDE EN S

1шт.

42

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

49

2184-1046D189

HOSE PF1/4-710L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

63

2184-1046D146

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1045D55

HOSE PF1/4-990L

desc: TUYAU FLEXIBLE

1шт.

83

2184-1045D55

HOSE PF1/4-990L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1046D162

HOSE PF1/4-920L

desc: TUYAU FLEXIBLE

1шт.

95

2184-1061D90

HOSE PF3/8-600L

desc: TUYAU FLEXIBLE

1шт.

96

2184-1036D159

HOSE PF1/2-900L

desc: TUYAU FLEXIBLE

1шт.

99

2184-1026D367

HOSE PF1/2-3800L

desc: TUYAU FLEXIBLE

1шт.

101

2420-9356

BLOCK;CHECK VALVE

desc: BLOC

1шт.

102

2181-1702D2

ELBOW 90ЎЈ PF(O)1/2XPF1/2

desc: COUDE

2шт.

106

2423-1447

BLOCK;VALVE

desc: BLOC DE VANNE

1шт.

107

2184-1036D18

HOSE 1/2.500L

desc: TUYAU FLEXIBLE

1шт.

108

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.
