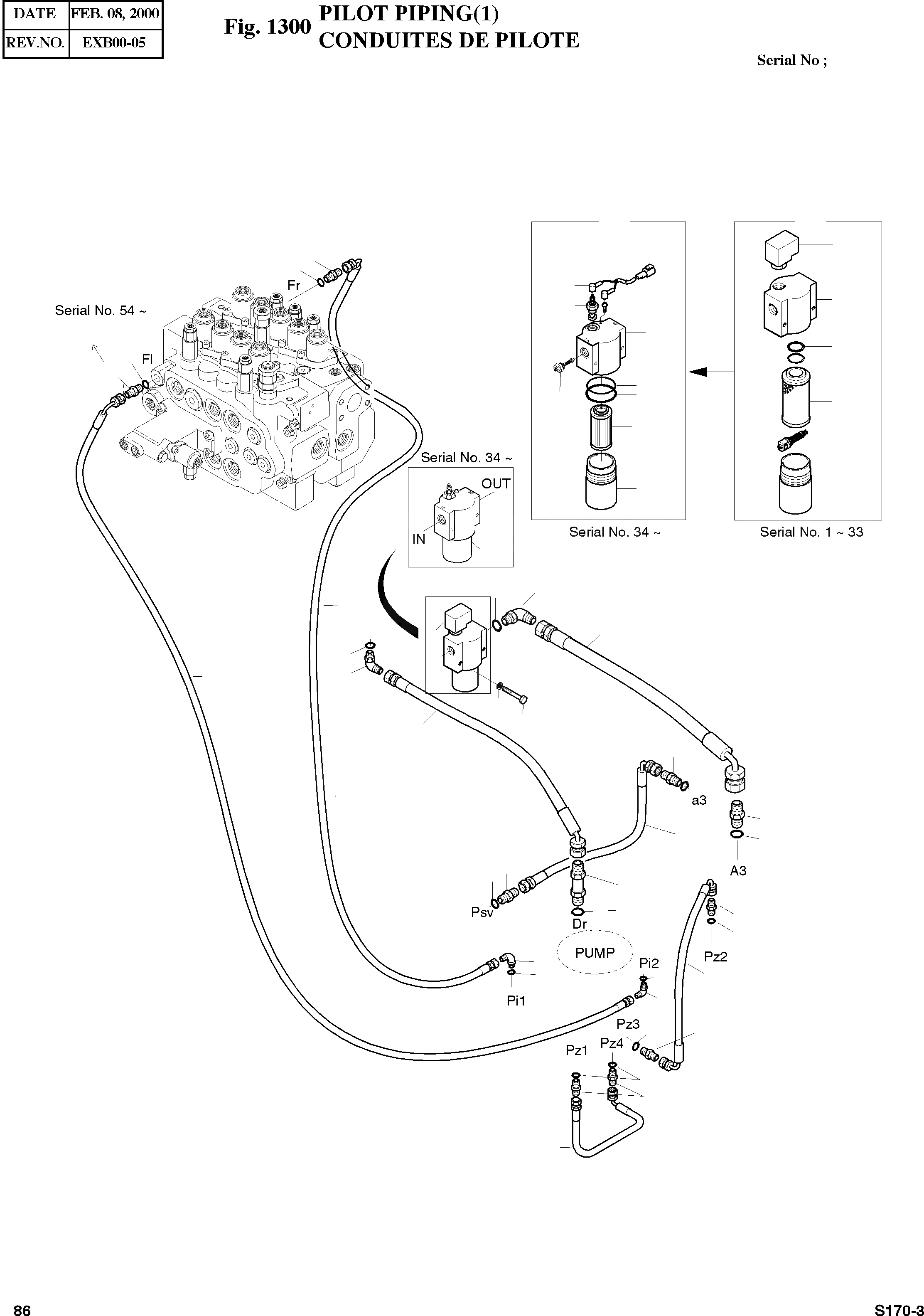

Запчасти Doosan Daewoo PILOT PIPING(1) UPPER STRUCTURE

-

2400-1750

PILOT PIPING

SERIAL: 1-53

-

2400-1882

PILOT PIPING

SERIAL: 54

20

2471-9026

FILTER;PILOT

SERIAL: 1-33

1шт.

20A

Y-3738-01

BODY

SC: D

1шт.

20B

Y-3738-02

VALVE ASS'Y

desc: . ENSEMBLE DE VANNE

1шт.

20C

2474-9041

ELEMENT

desc: . ELEMENT FILTRANT

1шт.

20D

Y-3738-04

O-RING

desc: . JOINT TORIQUE

1шт.

20E

Y-3738-05

RING;BACK UP

desc: . BAGUE

1шт.

20F

2472-7003

CASE

desc: . CARTER

1шт.

20G

Y-4117

ELECTRIC INDICATOR

desc: . INDICATEUR

1шт.

20

2471-1153

FILTER;PILOT

SERIAL: 34

1шт.

20A

HEAD

SC: D

1шт.

20B

2472-7003

CASE

desc: . CARTER

1шт.

20C

2471-1154

ELEMENT;PILOT FILTER

desc: . ELEMENT FILTRANT

1шт.

20D

2426-1237

BYPASS VALVE

desc: . VANNE

1шт.

20E

2471-1155

INDICATOR

desc: . INDICATEUR

1шт.

20F

Y-3738-04

O-RING

desc: . JOINT TORIQUE

1шт.

20G

Y-3738-05

RING;BACK UP

desc: . BAGUE

1шт.

20H

2530-1735

HARNESS;PILOT FILTER

desc: . FAISCEAU

1шт.

21

S0553753

BOLT M6X1.0X55

desc: BOULON A 6 PANS

2шт.

22

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

26

2181-1126D6

ADAPTER PF1/2(O)XPF1/2

desc: RACCORD

1шт.

27

S8000181

O-RING P18

REP_PNO: 8202-014

2шт.

29

S8000111

O-RING P11

REP_PNO: 8202-009

10шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

SERIAL: 1-53

8шт.

30

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

SERIAL: 54

7шт.

31

2181-1702D4

ELBOW 90ЎЈ PFO1/4XPF1/4

desc: COUDE

2шт.

51

2184-1046D132

HOSE PF1/4-590L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1046D73

HOSE PF1/4-1900L

SERIAL: 1-53

1шт.

59

2184-1052D11

HOSE PF1/4-1950L

SERIAL: 54

1шт.

68

2184-1061D185

HOSE PF1/4-480L

desc: TUYAU FLEXIBLE

1шт.

69

2184-1046D215

HOSE PF1/4-320L

desc: TUYAU FLEXIBLE

1шт.

70

2184-1036D81

HOSE PF3/4-650L

desc: TUYAU FLEXIBLE

1шт.

98

2184-1036D16

HOSE PF1/2-700L

desc: TUYAU FLEXIBLE

1шт.

102

2181-1702D2

ELBOW PFO1/2 PF1/2

desc: COUDE

1шт.

105

2181-1702D1

ELBOW PF3/4

desc: COUDE

1шт.

110

2181-1126D118

ADAPTER;S PFO.PF1/4

SERIAL: 54

1шт.

111

2181-1126D1

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD

1шт.

111

2181-2650

ADAPTER;LONG PF3/4

desc: RACCORD

1шт.

112

S8000241

O-RING P24

desc: JOINT TORIQUE

2шт.
