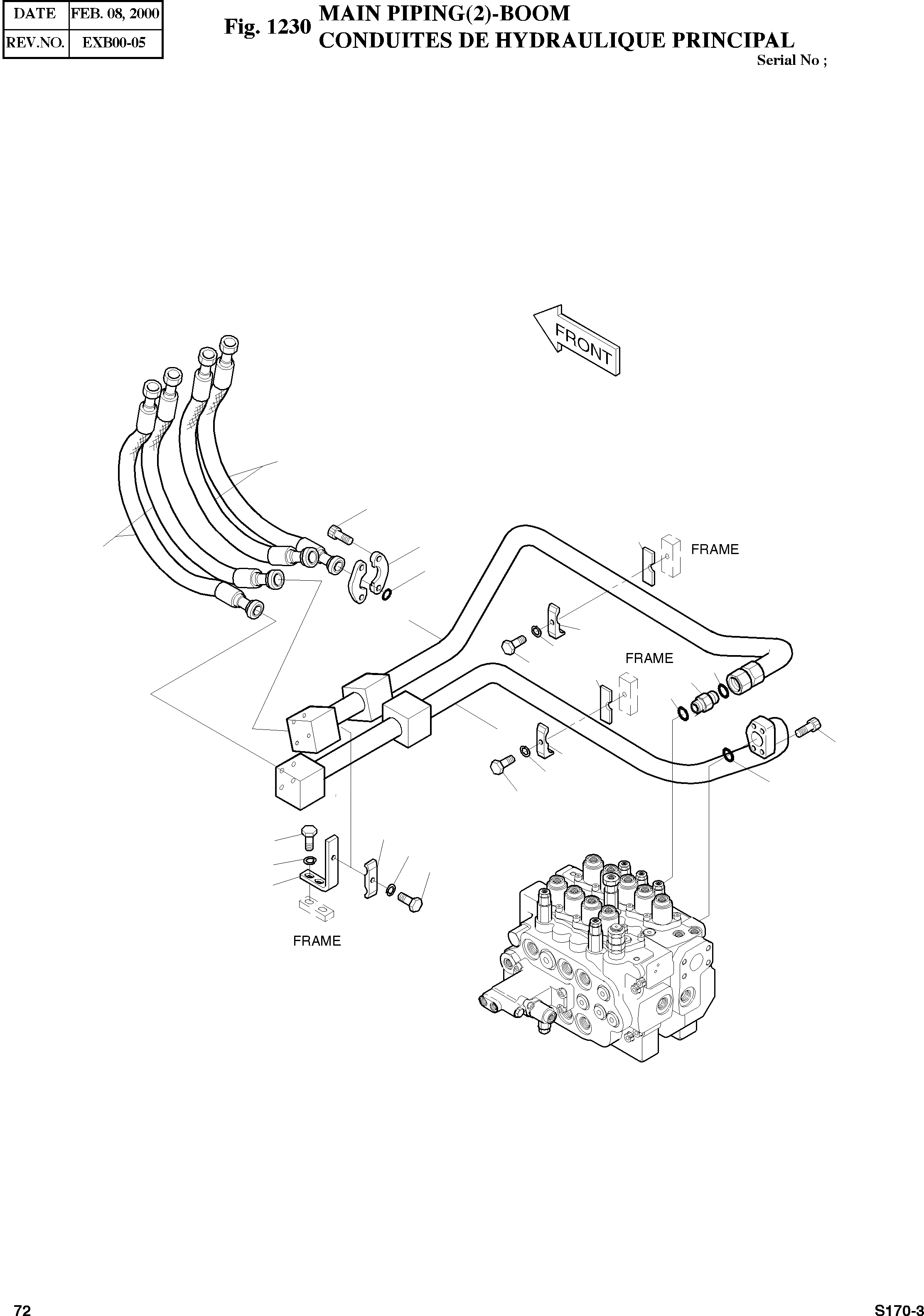

Запчасти Doosan Daewoo MAIN PIPING(2)-BOOM UPPER STRUCTURE

-

2400-1842

MAIN PIPING

SC: D

2

2124-1025D6

CLAMP

desc: ATTACHE DE TUYAU

1шт.

12

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

14

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

15

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

3шт.

18

2180-1026D2

O-RING SAE 3/4

desc: JOINT TORIQUE

4шт.

22

2181-4133D5

ADAPTER PFO.ORS 3/4

SERIAL: 1-143

1шт.

22

2181-2627D1

ADAPTER PFO3/4. UNF1 3/16-12

SERIAL: 144

1шт.

23

S8030121

O-RING 1 3/16-12

desc: JOINT TORIQUE

1шт.

24

S8000231

O-RING 3/4

REP_PNO: 0207-001

1шт.

26

2195-3657

BRACKET

desc: SUPPORT

1шт.

28

2114-1685

SHIM

desc: CALE

2шт.

32

2181-9079

FLANGE;SPLIT SAE 3/4

desc: FLASQUE EN DEUX PARTIES

4шт.

42

2193-1353A

PIPE;WELD(BOOM)

desc: CONDUITE

1шт.

43

2184-1229D1

HOSE (S-S)1 3-16-12UN900L

desc: TUYAU FLEXIBLE

4шт.

51

2140-1351A

PIPE;WELD

desc: CONDUITE

1шт.

52

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

16шт.

58

S2212761

BOLT;SOCKET M10X1.5X55

desc: BOULON A 6 PANS

4шт.

59

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

1шт.

63

2124-1026D2

CLAMP;PIPE

desc: FIXATION DE TUYAU

2шт.
