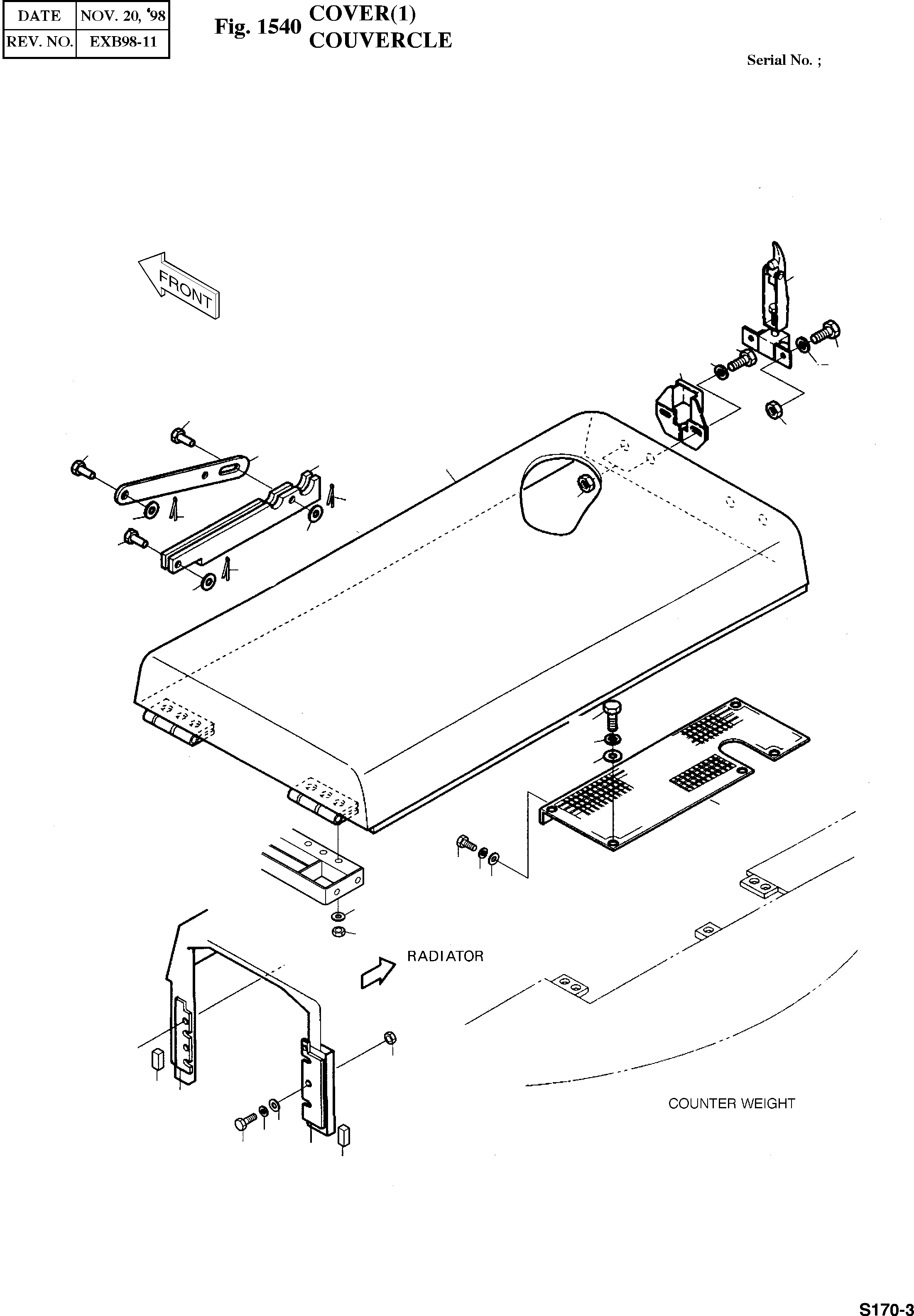

Запчасти Doosan Daewoo COVER(1) UPPER STRUCTURE

-

2621-3413

UPPER COVER ASS'Y

desc: COUVERCLE

1шт.

1

2621-3410A

COVER;ENGINE

desc: COUVERCLE

1шт.

1A

1.162-00001

RUBBER;CUSHION

desc: . CAOUTCHOUC

1шт.

6

2621-3417

COVER;MUFFLER

desc: COUVERCLE

1шт.

7

2621-3420

COVER;RADIATOR

desc: COUVERCLE

1шт.

8

2621-3421

COVER;RADIATOR

desc: COUVERCLE

1шт.

9

2161-2120

POLYUETHANE FOAM

desc: EPONGE

2шт.

10

2155-4013A

LINK

desc: ARTICULATION

1шт.

11

2155-4014A

LINK

desc: ARTICULATION

1шт.

12

2123-1057D3

PIN

desc: BROCHE

3шт.

13

S5010713

WASHER M12

SERIAL: 1-3

3шт.

14

S5735471

PIN;SPLIT

desc: GOUPILLE FENDUE

3шт.

15

2125-9025

CATCH;BONNET

desc: LOQUET

2шт.

16

S0508753

BOLT M8X1.25X18

desc: BOULON A 6 PANS

4шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

8шт.

18

S4012533

NUT M8

desc: ECROU

8шт.

19

S0555753

BOLT M8X1.25X25

SERIAL: 1-3

11шт.

19

S0555753

BOLT M8X1.25X25

SERIAL: 4

4шт.

21

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

5шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

11шт.

23

S5010613

WASHER M10

desc: RONDELLE PLATE

11шт.

26

S0512153

BOLT M10X1.5X30

desc: BOULON A 6 PANS

6шт.

27

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

6шт.

28

S4012733

NUT M12X1.75

desc: ECROU

6шт.

30

S4012633

NUT M10X1.5

desc: ECROU

6шт.
