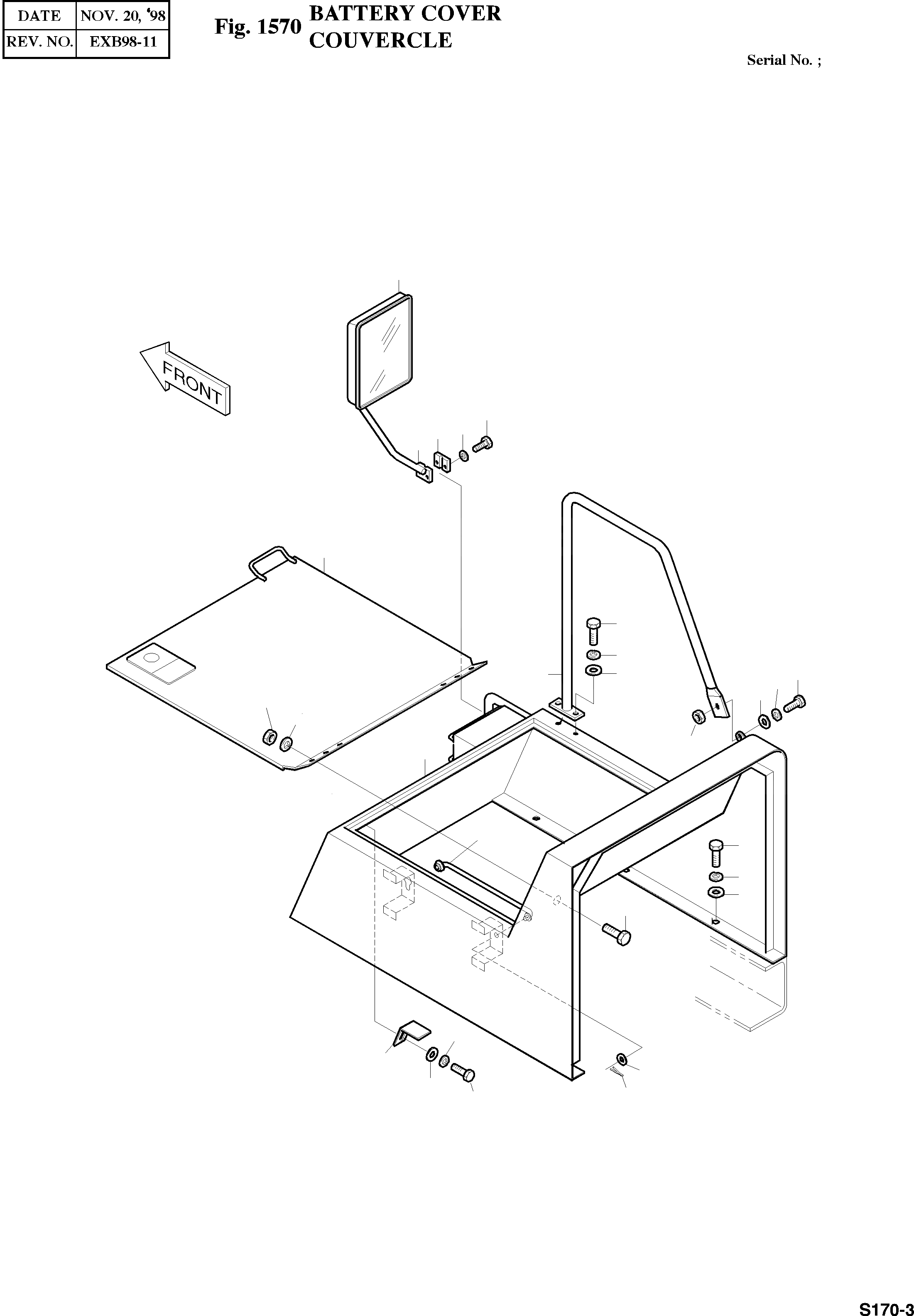

Запчасти Doosan Daewoo BATTERY COVER UPPER STRUCTURE

-

2621-3430

BATTERY COVER ASS'Y

desc: ENSEMBLE DE COUVERCLE

1шт.

1

2621-3429A

COVER;BATTERY

desc: COUVERCLE

1шт.

1-1

2621-3419A

COVER;BATTERY

desc: . COUVERCLE

1шт.

1-2

2622-1396A

DOOR;BATTERY

desc: . PORTE

1шт.

1-5

2145-1179

STAY

desc: . ENTRETOISE

1шт.

1-9

2195-3429

BRACKET

desc: . SUPPORT

1шт.

1-10

2705-9002

PIN;LOCK

desc: . GOUPILLE DE BLOCAGE

1шт.

1-11

S5102503

WASHER;SPRING M8

desc: . RONDELLE ELASTIQUE

2шт.

1-13

S5102703

WASHER;SPRING M12

desc: . RONDELLE ELASTIQUE

6шт.

1-14

S5010513

WASHER M8

desc: . RONDELLE PLATE

2шт.

1-16

S5010713

WASHER M12

desc: . RONDELLE PLATE

1шт.

1-17

S0508653

BOLT M8X1.25X16

desc: . BOULON A 6 PANS

2шт.

1-21

S0515253

BOLT M12X1.75X30

desc: . BOULON A 6 PANS

6шт.

1-23

S4012733

NUT M12X1.75

desc: . ECROU

6шт.

2

2145-1191

STAY;MIRROR

desc: ENTRETOISE

1шт.

3

2903-9008

MIRROR;MAIN

desc: RETROVISEUR

1шт.

4

2124-1246

CLAMP

desc: ATTACHE DE TUYAU

1шт.

5

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

6

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

9шт.

7

S5010613

WASHER M10

desc: RONDELLE PLATE

9шт.

8

S0556153

BOLT M8X1.25X40

desc: BOULON A 6 PANS

2шт.

9

S0512053

BOLT M10X1.25X25

desc: BOULON A 6 PANS

8шт.

10

2145-1236

STAY;BATTERY COVER

SERIAL: 1-7

1шт.

10

2145-1236A

STAY;BATTERY COVER

SERIAL: 8

1шт.

11

S0512353

BOLT M10X1.25X35

desc: BOULON A 6 PANS

1шт.

12

S4012633

NUT M10X1.5

desc: ECROU

1шт.
