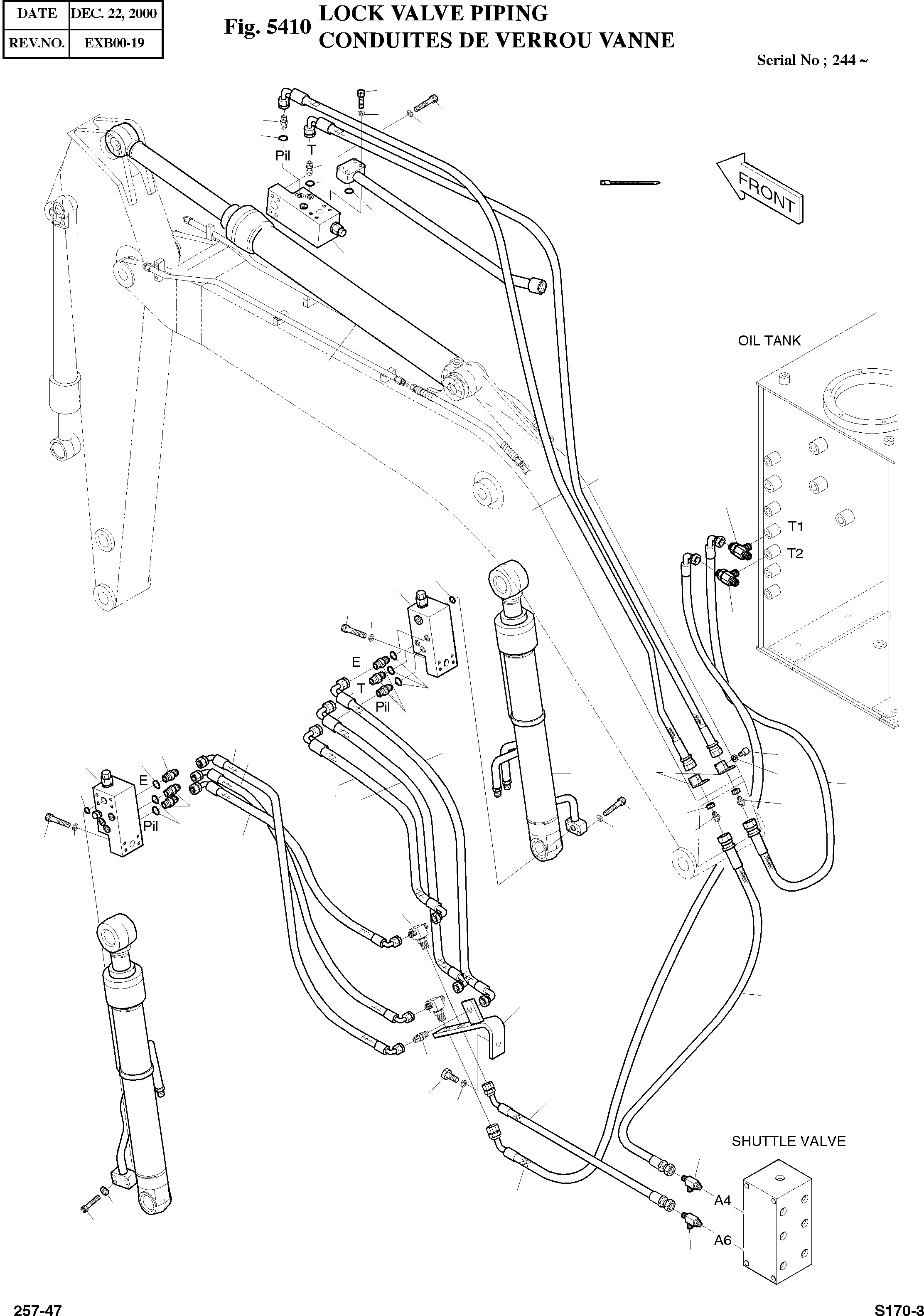

Запчасти Doosan Daewoo LOCK VALVE PIPING OPTION PARTS

-

400-00075

LOCK VALVE PIPING

SERIAL: 244

1шт.

1

420-00003A

VALVE;LOCK

desc: VERROU VANNE

3шт.

2

S2212661

BOLT;SOCKET M10X1.5X50

desc: BOULON A 6 PANS CREUX

24шт.

3

S5110611

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

4

S8000281

O-RING

desc: JOINT TORIQUE

3шт.

5

181-00007

ADAPTER PF1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

6

S0560961

BOLT M12X1.75X60

desc: BOULON A 6 PANS

2шт.

7

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.

8

197-00020

BRACKET

desc: SUPPORT

2шт.

9

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

1шт.

10

S4012733

NUT M12

desc: ECROU

2шт.

11

195-00013

BRACKET

desc: SUPPORT

1шт.

12

181-00020

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

13

181-00008

TEE PF1/4-PF1/4-PF3/8

desc: TE

2шт.

14

2181-1126D14

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

8шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

16

2124-1084D2

CLIP;BAND

desc: ATTACHE

25шт.

17

2181-1951D20

TEE PFO1/4-2XPF3/8

desc: TE

2шт.

18

2181-1951D16

TEE PFO1/4-2XPF3/8

desc: TE

1шт.

19

2184-1076D124

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

2шт.

20

2184-1076D123

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

2шт.

21

2184-1076D123

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

2шт.

22

2184-1046D260

HOSE PF1/4-4740L

desc: TUYAU FLEXIBLE

1шт.

23

2184-1046D261

HOSE PF1/4-4800L

desc: TUYAU FLEXIBLE

1шт.

24

2184-1060D227

HOSE PF3/8-1750L

desc: TUYAU FLEXIBLE

1шт.

25

2184-1045D243

HOSE PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1076D120

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1060D206

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

1шт.

28

2440-6491B

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE

1шт.

29

2440-6492B

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE

1шт.

30

2440-6490B

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

31

2181-2375D8

TEE PFO1/2-PF3/8-PF1/2

desc: TE

1шт.
