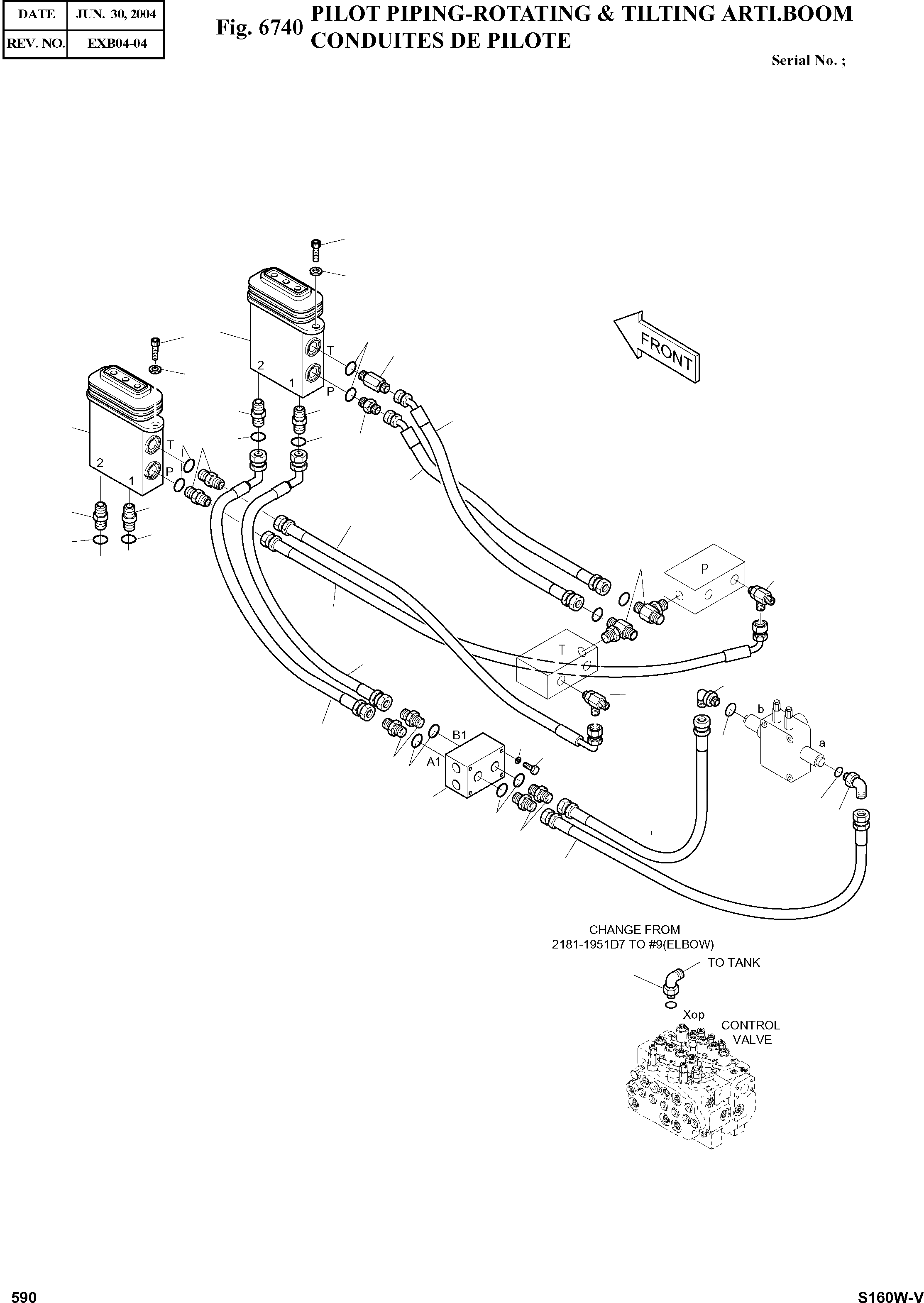

Запчасти Doosan Daewoo PILOT PIPING-ROTATING & TILTING ARTI.BOOM OPTION PARTS

-

K1000784

PILOT PIPING-ROTATING & TILTING ARTI.BOO

SC: D

-2шт.

1

420-00347

VALVE;PEDAL-ARTI

desc: VANNE

1шт.

2

S5110603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

3

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

4

2181-1126D85

ADAPTER

desc: ADAPTEUR

1шт.

5

420-00160

VALVE;PEDAL-ROTATING & TILTING

desc: VANNE

1шт.

6

2181-1126D122

ADAPTER

desc: ADAPTEUR

1шт.

7

S8000111

O-RING

desc: JOINT TORIQUE

14шт.

8

2181-1126D14

ADAPTER;S PFO1/4XPF1/4

desc: ADAPTEUR

10шт.

9

2181-1702D4

ELBOW PF1/4XPF1/4

desc: COUDE

3шт.

10

2420-9158

VALVE;SHUTTLE

desc: CLAPET BALADEUR

1шт.

11

S0556453

BOLT M8X1.25X55

desc: BOULON A 6PANS

2шт.

12

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

13

2184-1060D8

HOSE PF3/8-400L

desc: TUYAU FLEXIBLE

1шт.

14

DS2054214

HOSE PF3/8-330L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1045D148

HOSE PF1/4-1800L

desc: TUYAU FLEXIBLE

2шт.

16

2181-1951D19

TEE

desc: TE

2шт.

18

2181-2281D13

TEE

desc: TE

2шт.

19

2184-1046D32

HOSE PF1/4-480L

desc: TUYAU FLEXIBLE

1шт.

20

2184-1046D55

HOSE PF1/4-530L

desc: TUYAU FLEXIBLE

1шт.

21

2184-1046D44

HOSE 460L

desc: TUYAU FLEXIBLE

1шт.

22

2184-1046D68

HOSE 600L

desc: TUYAU FLEXIBLE

1шт.
