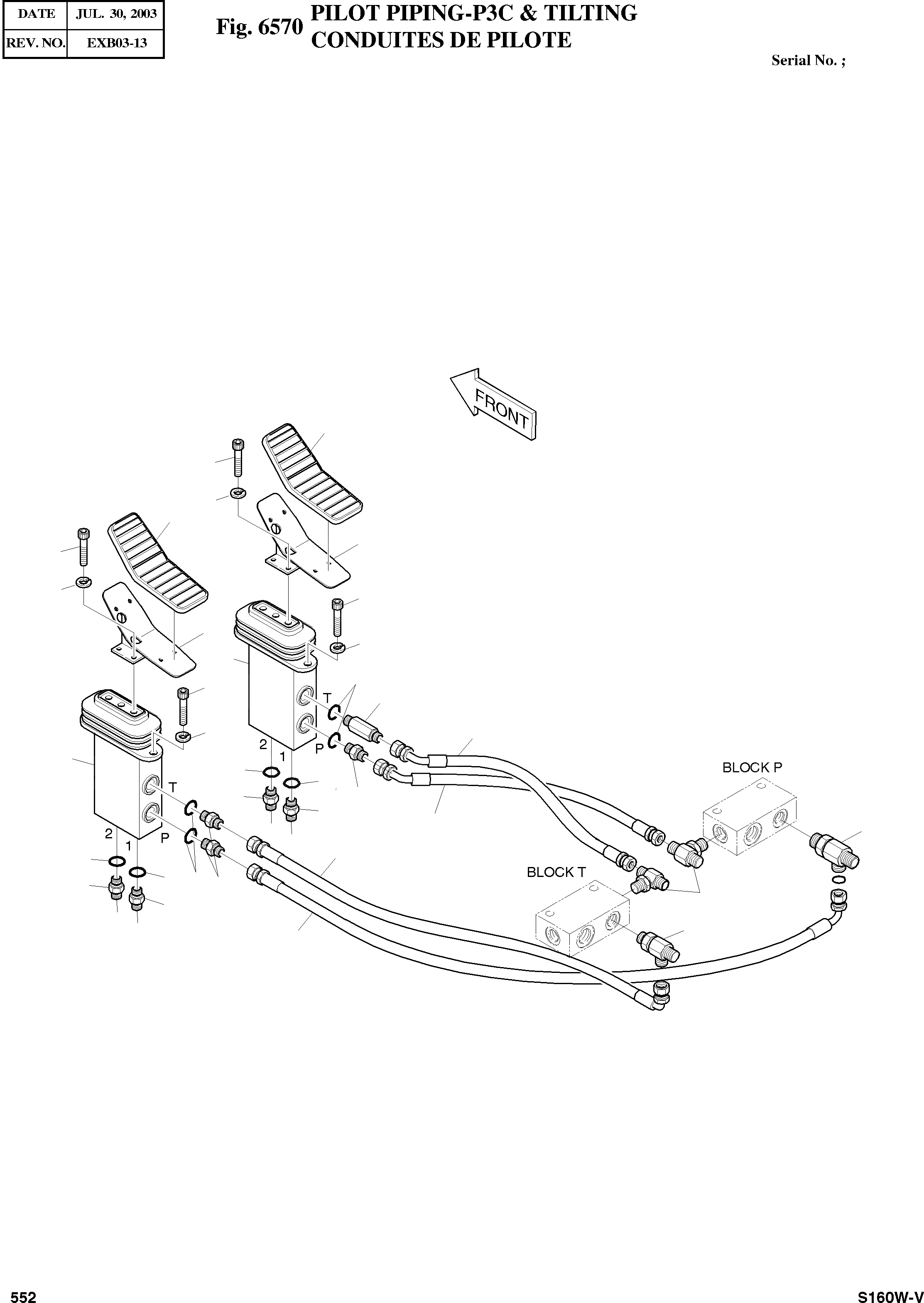

Запчасти Doosan Daewoo PILOT PIPING-P3C & TILTING OPTION PARTS

-

400-00799

PILOT PIPING-ROTATION & TILTING

SC: D

-2шт.

1

420-00160

VALVE;PEDAL

desc: VANNE

2шт.

2

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

3

S5110603

WASHER

desc: RONDELLE ELASTIQUE

8шт.

4

2197-1817

BRACKET;PEDAL(R.H)

desc: SUPPORT

2шт.

5

S2211866

BOLT;SOCKET M10X1.5X20

desc: BOULON A 6 PANS CREUX

4шт.

6

2161-2257

RUBBER;PEDAL

desc: CAOUTCHOUC

2шт.

7

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

6шт.

8

S8000111

O-RING 1/4

desc: JOINT TORIQUE

8шт.

9

2181-1126D85

ADAPTER PFO1/4-PF3/8

desc: ADAPTEUR

1шт.

10

2181-1126D122

ADAPTER PFO1/4-PF3/8

desc: ADAPTEUR

1шт.

11

2181-1951D19

TEE PFO1/2-PF1/2-PF1/4

desc: TE

2шт.

12

2181-2281D13

TEE PFO3/8-2PF3/8

desc: TE

2шт.

13

2184-1060D8

HOSE PF3/8-400L

desc: TUYAU FLEXIBLE

1шт.

14

DS2054214

HOSE PF3/8-330L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D63

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.
