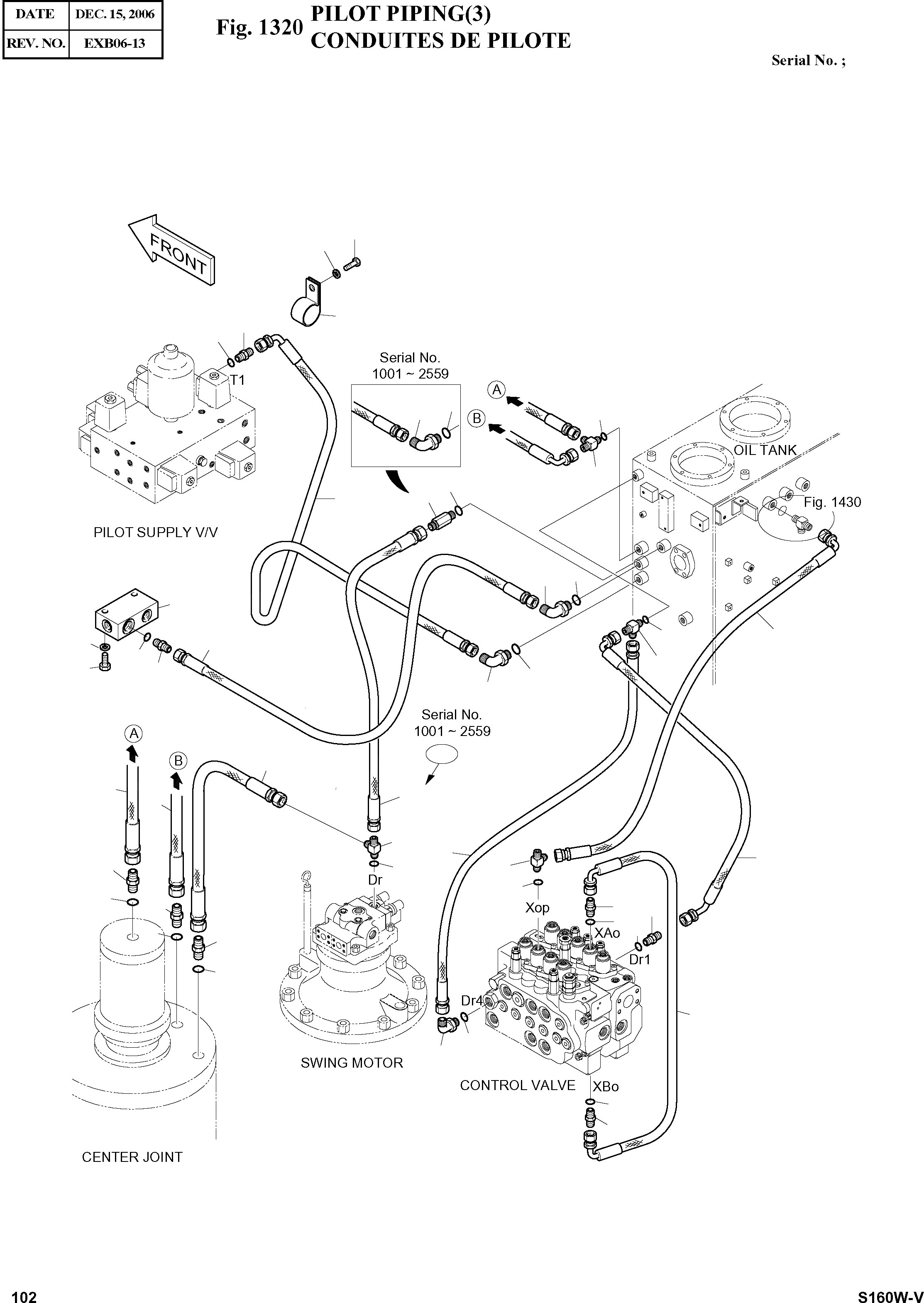

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

400-01165A

PILOT PIPING

SC: D

-2шт.

5

S8000181

O-RING

desc: JOINT TORIQUE

8шт.

8

S8000141

O-RING 3/8

desc: JOINT TORIQUE

5шт.

13

S8000111

O-RING 1/4

desc: JOINT TORIQUE

3шт.

14

2181-1126D14

ADAPTER

desc: ADAPTEUR

1шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

1шт.

21

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: ADAPTEUR

4шт.

25

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: ADAPTEUR

1шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

43

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

44

2181-1702D2

ELBOW PFO1/2-PF1/2

SERIAL: 1001-2559

3шт.

44

2181-1702D2

ELBOW PFO1/2-PF1/2

SERIAL: 2560

2шт.

46

2181-1951D6

TEE PFO3/8-PF3/8-PF1/4

desc: TE

1шт.

47

2181-1951D38

TEE PFO3/8-2PF1/2

desc: TE

1шт.

53

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: ADAPTEUR

1шт.

56

2181-1951D7

TEE PFO3/8-2-PF1/4

desc: TE

1шт.

58

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

2шт.

59

2423-1470

BLOCK

desc: BLOC

1шт.

87

2184-1036D187

HOSE PF1/2-1800L

desc: TUYAU FLEXIBLE

1шт.

89

2184-1026D358

HOSE PF1/2-600L

SERIAL: 1001-2559

2шт.

89

2184-1026D358

HOSE PF1/2-600L

SERIAL: 2560

1шт.

90

2184-1026D376

HOSE PF1/2-2500L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1046D142

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1061D82

HOSE PF3/8-400L

desc: TUYAU FLEXIBLE

1шт.

96

2184-1061D76

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

117

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

1шт.

142

2181-1126D96

ADAPTER PF3/8-PF1/4

desc: ADAPTEUR

1шт.

147

2184-1046D82

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

148

2184-1036D154

HOSE PF1/2-1100L

desc: TUYAU FLEXIBLE

1шт.

149

2184-1045D55

HOSE PF1/4-990L

desc: TUYAU FLEXIBLE

1шт.

150

2181-1951D19

TEE PFO1/2-PF1/2-PF1/4

desc: TE

1шт.

169

124-00209D4

CLIP

desc: CLIP

1шт.

179

2181-1126D83

ADAPTER

SERIAL: 2560

1шт.

180

2184-1026D18

HOSE

SERIAL: 2560

1шт.
