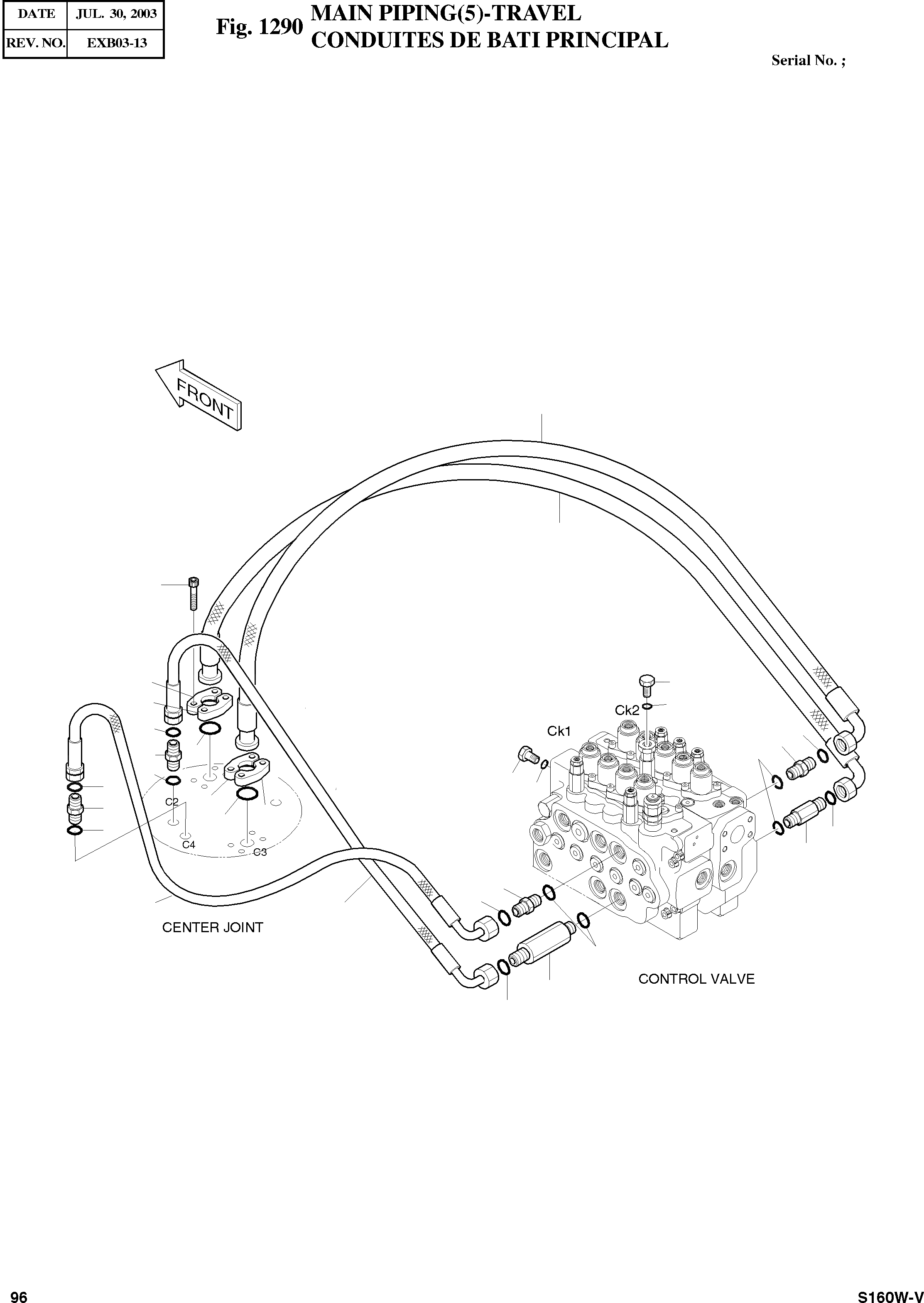

Запчасти Doosan Daewoo MAIN PIPING(5)-TRAVEL BODY PARTS

-

400-01166

MAIN PIPING

SC: D

-2шт.

3

2181-4133D3

ADAPTER PFO1/2-ORS1/2

desc: ADAPTEUR

2шт.

4

S8000181

O-RING 1/2

desc: JOINT TORIQUE

2шт.

7

2181-2627D8

ADAPTER PFO3/4O3/41/2

desc: ADAPTEUR

1шт.

23

2181-2627D1

ADAPTER PFO3/4-ORS3/4

desc: ADAPTEUR

1шт.

24

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

4шт.

27

S8030081

O-RING

desc: JOINT TORIQUE

4шт.

30

DS2013362

HOSE PF1/2-1250L

desc: TUYAU FLEXIBLE

1шт.

31

2181-2627D2

ADAPTER PFO3/4-ORS1/2

desc: ADAPTEUR

1шт.

35

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX

8шт.

43

S8000141

O-RING 3/8

desc: JOINT TORIQUE

2шт.

44

2181-1950D2

PLUG PFO3/8

desc: BOUCHON

2шт.

48

2181-2627D4

ADAPTER PFO3/4-ORS3/4

desc: ADAPTEUR

1шт.

49

2184-1201D17

HOSE(TRAVEL FWD)

desc: TUYAU FLEXIBLE

1шт.

50

2184-1201D18

HOSE(TRAVEL REV)

desc: TUYAU FLEXIBLE

1шт.

51

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

52

2181-9059

FLANGE;SPLIT

desc: BRIDE

2шт.

53

2181-9084

FLANGE;SPLIT

desc: BRIDE

2шт.

67

2184-1197D181

HOSE PF1/2-1300L

desc: TUYAU FLEXIBLE

1шт.
