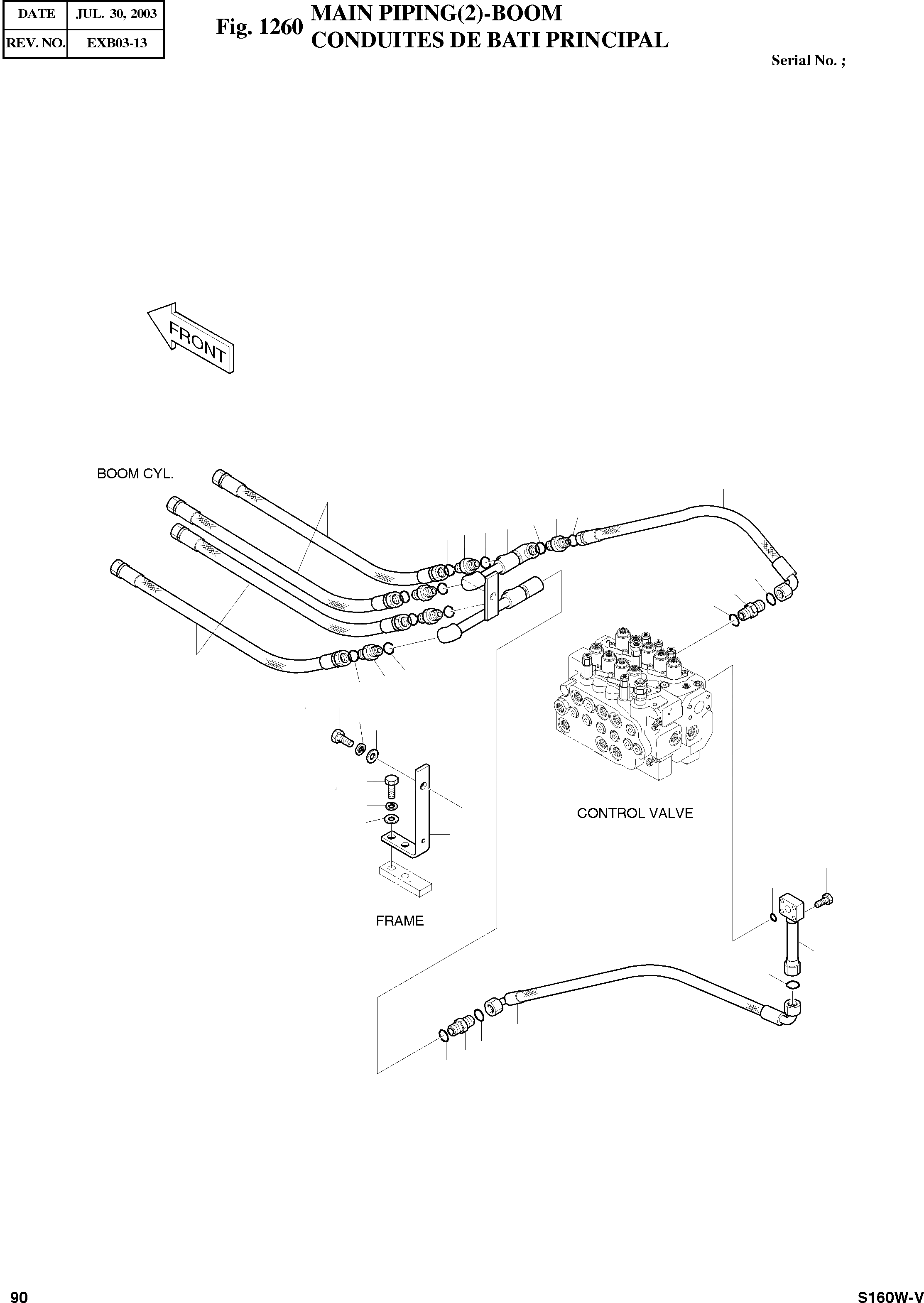

Запчасти Doosan Daewoo MAIN PIPING(2)-BOOM BODY PARTS

-

400-01166

MAIN PIPING

SC: D

-2шт.

3

2181-4133D3

ADAPTER PFO1/2-ORS1/2

desc: ADAPTEUR

4шт.

4

S8000181

O-RING 1/2

desc: JOINT TORIQUE

4шт.

5

2140-1237B

PIPE ASS'Y

desc: TUYAU

1шт.

11

195-01559

BRACKET

desc: SUPPORT

1шт.

12

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

13

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.

14

S5010713

WASHER M12

desc: RONDELLE

3шт.

15

S0560753

BOLT M12X1.75X50

desc: BOULON A 6 PANS

1шт.

16

S2212766

BOLT;SOCKET M10X1.5X55

desc: BOULON A 6 PANS CREUX

4шт.

21

2184-1197D73

HOSE ORS3/4-960L

desc: TUYAU FLEXIBLE

1шт.

23

2181-2627D1

ADAPTER PFO3/4-ORS3/4

desc: ADAPTEUR

3шт.

24

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

3шт.

27

S8030081

O-RING

desc: JOINT TORIQUE

4шт.

29

2140-1242A

PIPE

desc: TUYAU

1шт.

41

2184-1250D38

HOSE(BOOM)PF3/4-950L

desc: TUYAU FLEXIBLE

1шт.

51

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

54

DS2011287

HOSE(BOOM)PF1/2-600L

desc: TUYAU FLEXIBLE

2шт.

55

DS2011288

HOSE(BOOM)PF1/2-630L

desc: TUYAU FLEXIBLE

2шт.
