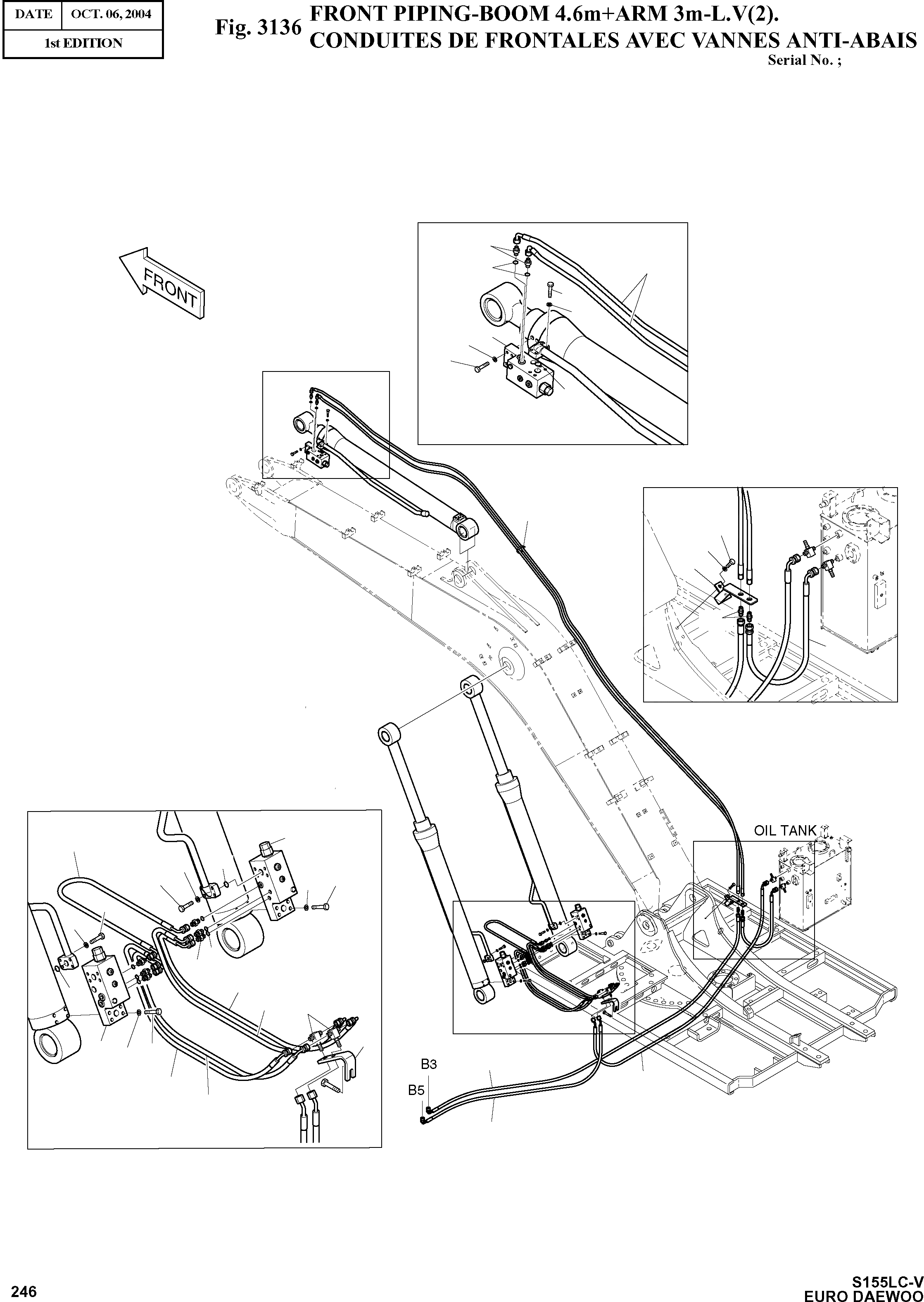

Запчасти Doosan Daewoo FRONT PIPING-BOOM 4.6M+ARM 3M-L.V.(2) FRONT PARTS

-

9400-1126

LOCK VALVE PIPING-4.6m BOOM

SC: D

-2шт.

28

S2212566

BOLT;SOCKET M10X1.5X45

desc: BOULON A 6 PANS CREUX

8шт.

35

9420-6018A

VALVE;LOCK

ICA: Y

3шт.

36

2181-1126D14

ADAPTER

desc: ADAPTEUR

2шт.

37

S8000111

O-RING

desc: JONT TORIQUE

8шт.

38

2124-1084D2

CLIP;BAND

desc: ATTACHE

15шт.

39

S5110603

WASHER

desc: RONDELLE ELASTIQUE

24шт.

40

S8000281

O-RING

desc: JONT TORIQUE

3шт.

41

195-00068

BRAKCET

desc: SUPPORT

1шт.

42

S0511953

BOLT M10x1.5x22

desc: BOULON A 6PANS

2шт.

43

181-00007

ADAPTER

desc: ADAPTEUR

2шт.

44

S2212666

BOLT;SOCKET M10X1.5X50

desc: BOULON A 6 PANS CREUX

16шт.

45

181-00008

TEE

desc: TE

2шт.

46

DS2059383

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1061D277

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

2шт.

48

2184-1036D405

HOSE PF1/4-5550L

desc: TUYAU FLEXIBLE

2шт.

49

2184-1036D25

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

50

2184-1076D54

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

1шт.

51

DS2058208

HOSE PF3/8-1850L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1046D273

HOSE PF3/8-810L

desc: TUYAU FLEXIBLE

1шт.

53

197-00068

BRACKET

desc: SUPPORT

1шт.

54

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

55

DS2059385

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

56

2181-1126D102

ADAPTER

desc: ADAPTEUR

6шт.
