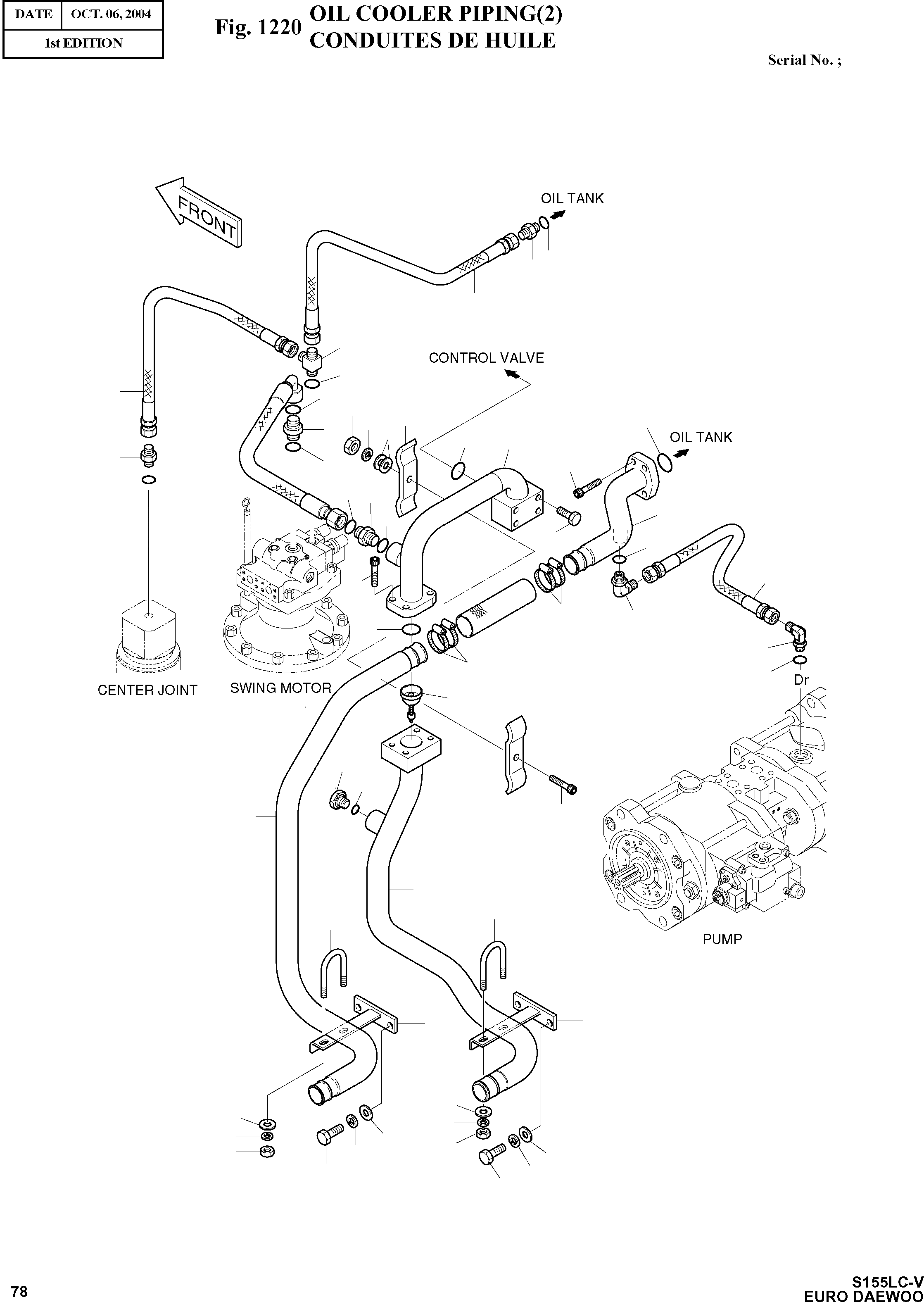

Запчасти Doosan Daewoo OIL COOLER PIPING(2) BODY PARTS

-

2400-1799A

OIL COOLER PIPING

SC: D

-2шт.

2

2140-1276A

PIPE

desc: TUYAU

1шт.

3

2140-1552

PIPE

desc: TUYAU

1шт.

4

2140-1277A

PIPE

desc: TUYAU

1шт.

5

2140-1225A

PIPE

desc: TUYAU

1шт.

9

2185-1776D2

HOSE 200L

desc: TUYAU FLEXIBLE

1шт.

11

2181-1126D6

ADAPTER PFO-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

12

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

13

2181-1951D24

TEE

desc: TE

1шт.

14

2184-1197D74

HOSE PF3/4-670L

desc: TUYAU FLEXIBLE

1шт.

16

2120-1413D12

BOLT;U

desc: BOULON A 6 PANS

2шт.

17

2124-1340D10

CLAMP

desc: ATTACHE DE TUBE

2шт.

19

2420-1124B

VALVE;BY-PASS

desc: CLAPET DE DERIVATION

1шт.

20

2181-2627D1

ADAPTER

desc: ADAPTEUR

1шт.

21

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

22

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

24

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

25

2184-1026D195

HOSE PF1/2-750L

desc: TUYAU FLEXIBLE

2шт.

30

S2215366

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS CREUX

8шт.

31

2180-1026D28

O-RING

desc: JOINT TORIQUE

2шт.

32

2180-1026D27

O-RING

desc: JOINT TORIQUE

1шт.

33

S0561453

BOLT M12X1.75X85

desc: BOULON A 6 PANS

4шт.

34

2197-1548B

BRACKET

desc: SUPPORT

2шт.

35

S0512153

BOLT M10X1.5X28

desc: BOULON A 6 PANS

4шт.

36

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

37

S4012733

NUT M12

desc: ECROU

5шт.

39

S8450053

CLAMP;HOSE

desc: COLLIER

4шт.

40

S2216061

BOLT;SOCKET M12X1.75X70

desc: BOULON A 6 PANS

1шт.

41

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

5шт.

42

2181-2633A

PLUG

desc: BOUCHON

1шт.

43

2181-1702D14

ELBOW

desc: COUDE

2шт.

44

2184-1026D161

HOSE

desc: TUYAU FLEXIBLE

1шт.

46

S8000241

O-RING

desc: JOINT TORIQUE

1шт.

47

S5010713

WASHER;PLAIN

desc: RONDELLE

4шт.

48

2181-2627D3

ADAPTER

desc: ADAPTEUR

1шт.

50

S5010613

WASHER;PLAIN

desc: RONDELLE

4шт.

51

2181-1126D83

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

1шт.
