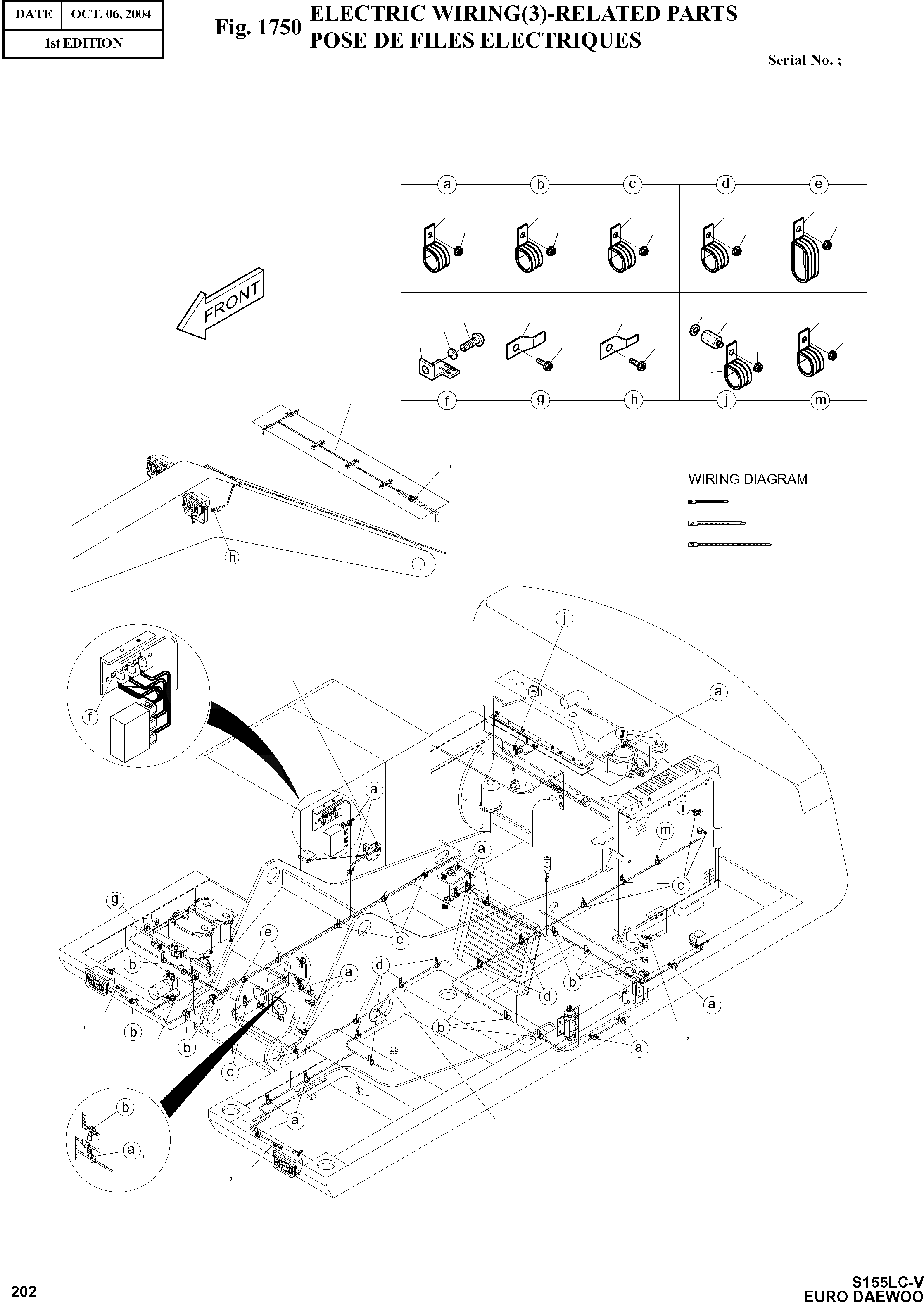

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-RELATED PARTS BODY PARTS

-

500-00263

ELECTRIC WIRING(3)

SC: D

-2шт.

1

599-00066A

WIRING DIAGRAM

SC: D

1шт.

2

530-00408A

HARNESS;MAIN

desc: FAISCEAU

1шт.

2A

2548-1026

DIODE ASS'Y

desc: . DIODE

7шт.

2B

548-00003A

DIODE ASS'Y

desc: . DIODE

1шт.

4

530-00311D4

HARNESS;WORKING LAMP

desc: FAISCEAU

1шт.

17

2195-3500

BRACKET;HOUSING

desc: SUPPORT

4шт.

18

S3450953

SCREW M6X1.0X12

desc: VIS

3шт.

19

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

20

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

3шт.

21

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

4шт.

22

2124-1509D1

CLIP D12/M8

desc: ATTACHE

18шт.

23

124-00208D2

CLIP D14/M8

desc: ATTACHE

18шт.

24

124-00208D3

CLIP D20/M8

desc: ATTACHE

5шт.

25

124-00208D4

CLIP D26/M8

desc: ATTACHE

7шт.

26

124-00209D1

CLIP 2-D20/M8

desc: ATTACHE

6шт.

27

2121-1305

NUT M8X1.25

desc: ECROU

59шт.

28

120-00276

BOLT M8X1.25X12

desc: BOULON A 6 PANS

3шт.

29

2120-2187

BOLT;STUD M8X1.25X20/M8

desc: BOULON A 6 PANS

1шт.

32

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

33

2124-1622D1

CLIP;BAND (146L)

desc: ATTACHE

10шт.

34

2124-1622D2

CLIP;BAND (200L)

desc: ATTACHE

30шт.

35

2124-1622D3

CLIP;BAND (280L)

desc: ATTACHE

10шт.

36

124-00208D7

CLIP;BAND

SERIAL: 50011

1шт.
