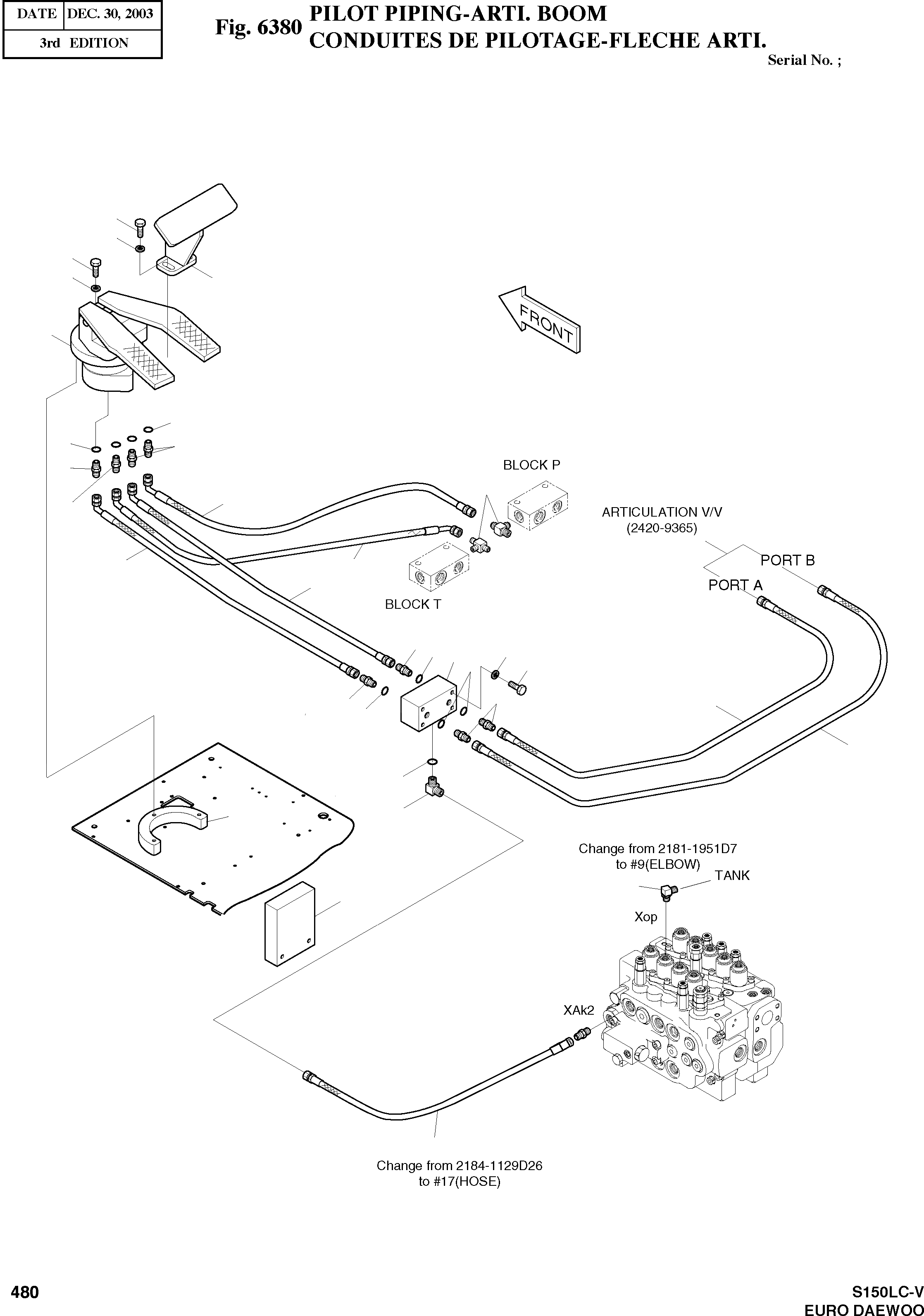

Запчасти Doosan Daewoo PILOT PIPING-ARTI. BOOM OPTION PARTS

-

9400-1062

PILOT PIPING FOR ARTI.BOOM

desc: CONDUITES DE PILOTAGE

-2шт.

1

2420-9412

VALVE;REMOCON

desc: VANNE COMMAND.DIST.

1шт.

2

S2205261

BOLT:SOCKET M6X30

desc: BOULON A 6 PANS CREUX

3шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER

3шт.

4

9195-1105

SUPPORT FOR PEDAL;OPTION

desc: SUPPORT;OPTION

1шт.

5

2181-1126D75

ADAPTER; PF1/4-LONG

desc: RACCORD

1шт.

6

S8180221

PACKING PF1/4

desc: RONDELLE D'ETANCHEITE

4шт.

7

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

8

2181-1126D14

ADAPTER;PF0 1/4-PF1/4

desc: RACCORD

8шт.

9

2181-1702D4

ELBOW(90ЎЖ);PF1/4

desc: COUDE

1шт.

10

2420-9158

SHUTTLE VALVE;BLOCK

desc: VANNE

1шт.

11

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER SPRING M8

desc: RONDELLE GROWER

2шт.

13

2184-1046D63

HOSE-500L

desc: TUYAU FLEXIBLE

3шт.

14

2184-1062D73

HOSE-460L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1045D107

HOSE-3800L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D134

HOSE-4100L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1045D175

HOSE-2650L

desc: TUYAU FLEXIBLE

1шт.

18

2181-2281D3

TEE; 3/8 - 1/4 -3/8

desc: TE

2шт.

19

S5100503

WASHER SPRING M8

desc: RONDELLE GROWER

2шт.

20

S0509063

BOLT M8x25

desc: BOULON A 6 PANS

2шт.

21

9195-1135

BRACKET STEP

desc: SUPPORT

1шт.

22

9195-1111

PLATE

desc: PLAQUE

1шт.
