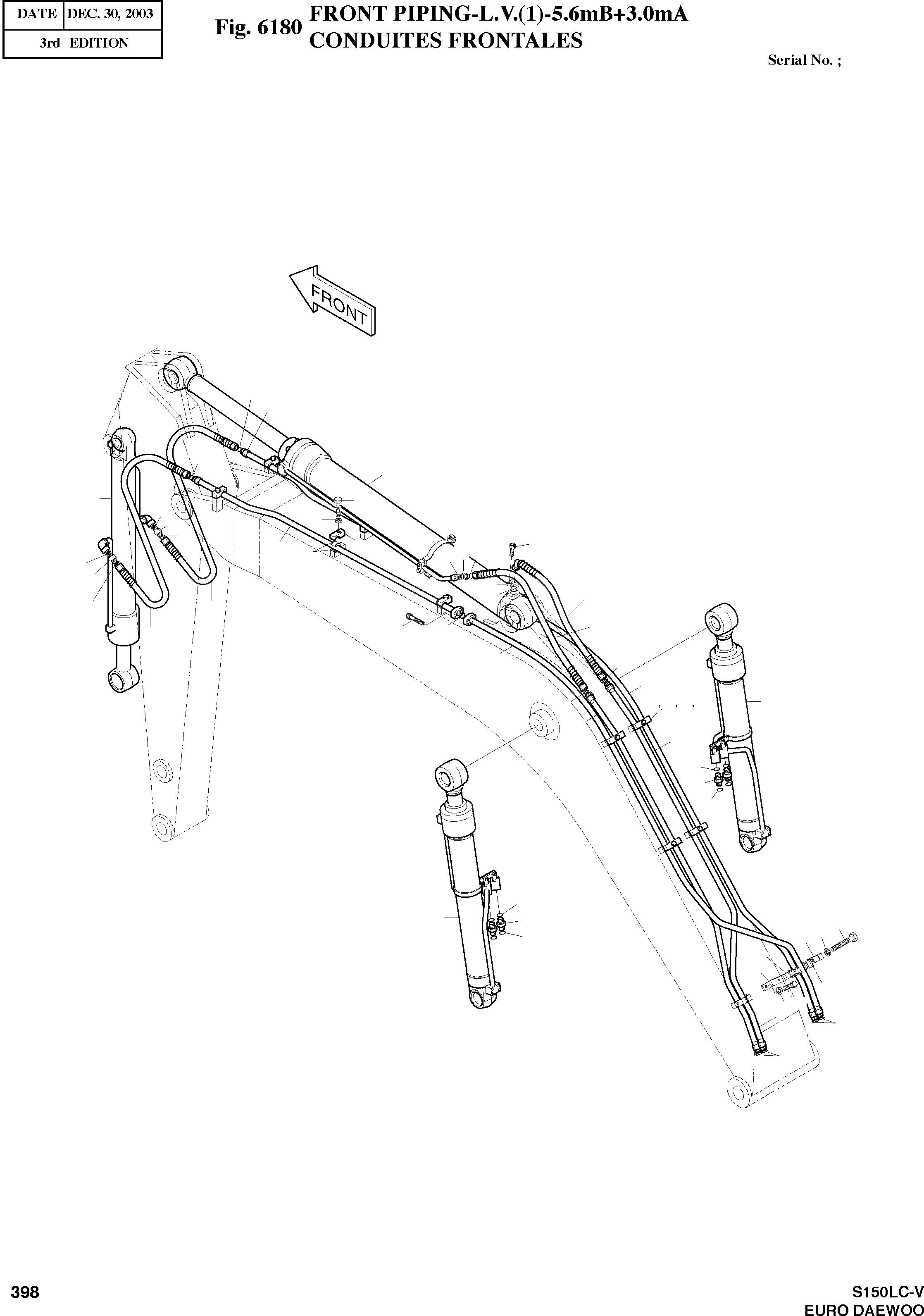

Запчасти Doosan Daewoo FRONT PIPING-L.V.(1)-5.6MB+3.0MA OPTION PARTS

-

400-00167

PIPING;FRONT

SC: D

-2шт.

1

2440-9354

CYLINDER;BOOM(L.H.)

desc: VERIN DE FLECHE

1шт.

2

2440-9355

CYLINDER;BOOM(R.H.)

desc: VERIN DE FLECHE

1шт.

3

2440-9232A

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

4

2440-9233B

CYLINDER;BUCKET

SERIAL: 1-50280

1шт.

4

440-00398

CYLINDER;BUCKET

SERIAL: 50281

1шт.

5

140-00139

PIPE;ARM CROWD

desc: TUYAU

1шт.

6

140-00140

PIPE;ARM DUMP

desc: TUYAU

1шт.

7

140-00141

PIPE;BUCKET CROWD

desc: TUYAU

1шт.

8

140-00142

PIPE;BUCKET DUMP

desc: TUYAU

1шт.

10

2140-1330

PIPE;BUCKET

desc: TUYAU

2шт.

11

2184-1200D1

HOSE-730L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1196D65

HOSE-870L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1196D68

HOSE-2100L

desc: TUYAU FLEXIBLE

2шт.

14

2197-1519A

BRACKET

desc: SUPPORT

2шт.

15

2124-1599

CLAMP- 3/4

desc: ATTACHE DE TUYAU

10шт.

17

2124-1601A

CLAMP- 3/4

desc: ATTACHE DE TUYAU

6шт.

18

2161-2250A

RUBBER

desc: CAOUTCHOUC

44шт.

20

2181-9079

FLANGE;SPLIT- 3/4

desc: FLASQUE EN DEUX PARTIES

2шт.

21

2181-2627D1

ADAPTER- UNF 1 3/16- PF 3/4

desc: RACCORD

3шт.

22

S8030121

O-RING

desc: JOINT TORIQUE

11шт.

23

S8000231

O-RING

desc: JOINT TORIQUE

3шт.

24

2181-4133D3

ADAPTER-UNF 1 3/18-PF 1/2

desc: RACCORD

4шт.

25

S8030081

O-RING

desc: JOINT TORIQUE

4шт.

26

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

27

2180-1026D2

O-RING

desc: JOINT TORIQUE

3шт.

28

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX M10X1.5X35

8шт.

29

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS

4шт.

30

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

2шт.

31

S0560853

BOLT M12X1.75X55

desc: BOULON A 6 PANS

12шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER M12

16шт.

33

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

2шт.
