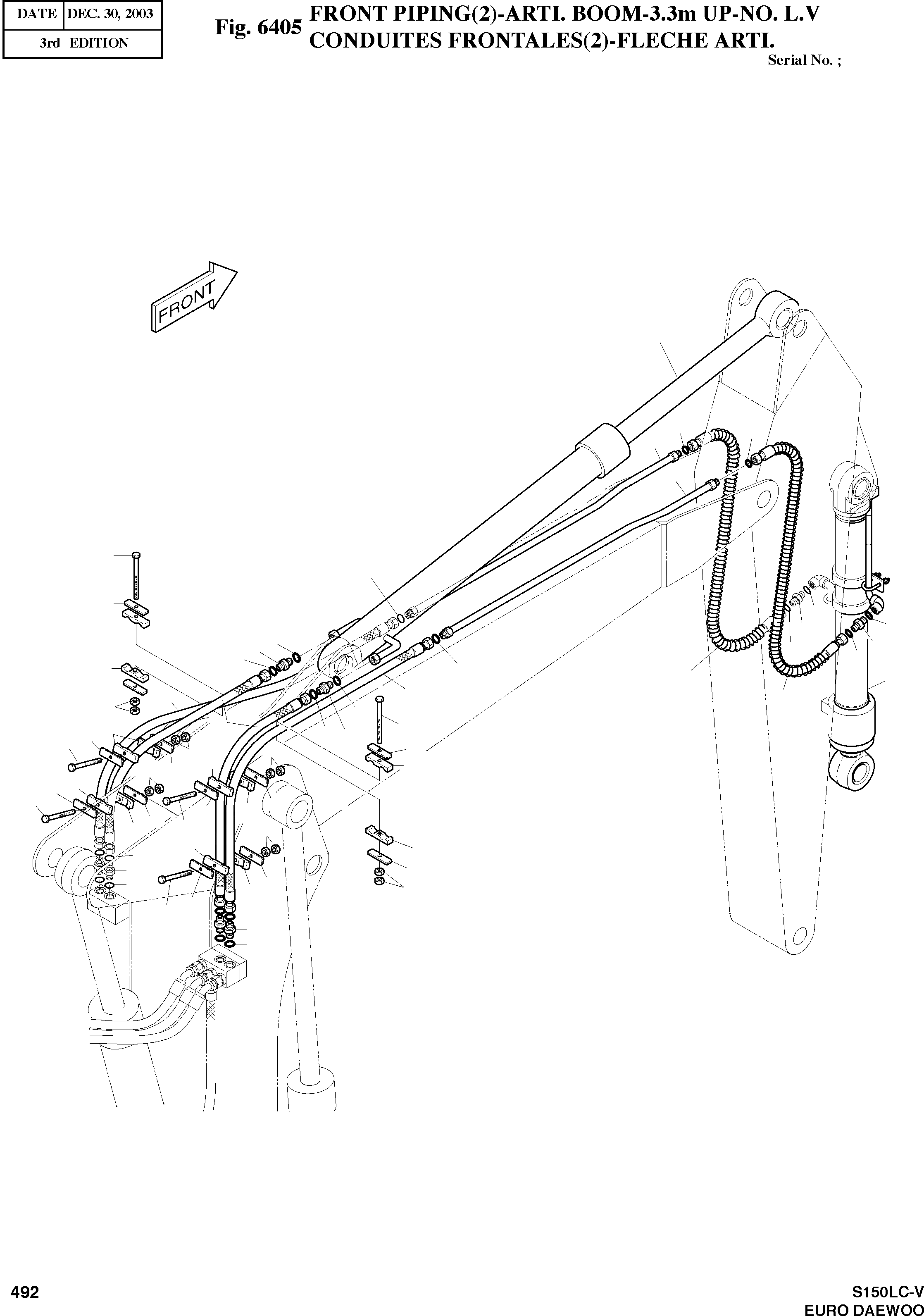

Запчасти Doosan Daewoo FRONT PIPING(2)-ARTI. BOOM-3.3M UP-NO. L.V OPTION PARTS

-

400-00579

FRONT PIPING

SC: D

-2шт.

1

2183-3427

PIPE

desc: TUYAU

2шт.

8

2184-1196D164

HOSE PF3/4-2650L

desc: TUYAU ADAPTATEUR

2шт.

11

2124-1226

CLAMP;RUBBER

desc: COLLIER

12шт.

13

S0559553

BOLT M10X1.5X100

desc: BOULON A 6 PANS

6шт.

14

S4012633

NUT M10X1.5

desc: ECROU

12шт.

41

S8000241

O-RING P24

desc: JOINT TORIQUE

6шт.

45

2191-4291

PLATE

desc: PLAQUE

12шт.

46

2181-2627D1

ADAPTER UNF1 3/16-PF3/4

desc: ROCCORD ADAPTATEUR

2шт.

49

2184-1196D57

HOSE 1600L

desc: TUYAU FLEXIBLE

2шт.

50

2181-4133D5

ADAPTER UNF1 3/16-PF3/4

desc: ROCCORD ADAPTATEUR

6шт.

55

440-00111

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

56

2440-9233B

CYLINDER;BUCKET

SERIAL: 1-50280

1шт.

56

440-00398

CYLINDER;BUCKET

SERIAL: 50281

1шт.

57

2184-1196D11

HOSE;ARM CYL. 2150L

desc: TUYAU FLEXIBLE

2шт.

64

S8030121

O-RING UNF1 3/16

desc: JOINT TORIQUE

12шт.

65

S8000231

O-RING P22.4

desc: JOINT TORIQUE

2шт.
