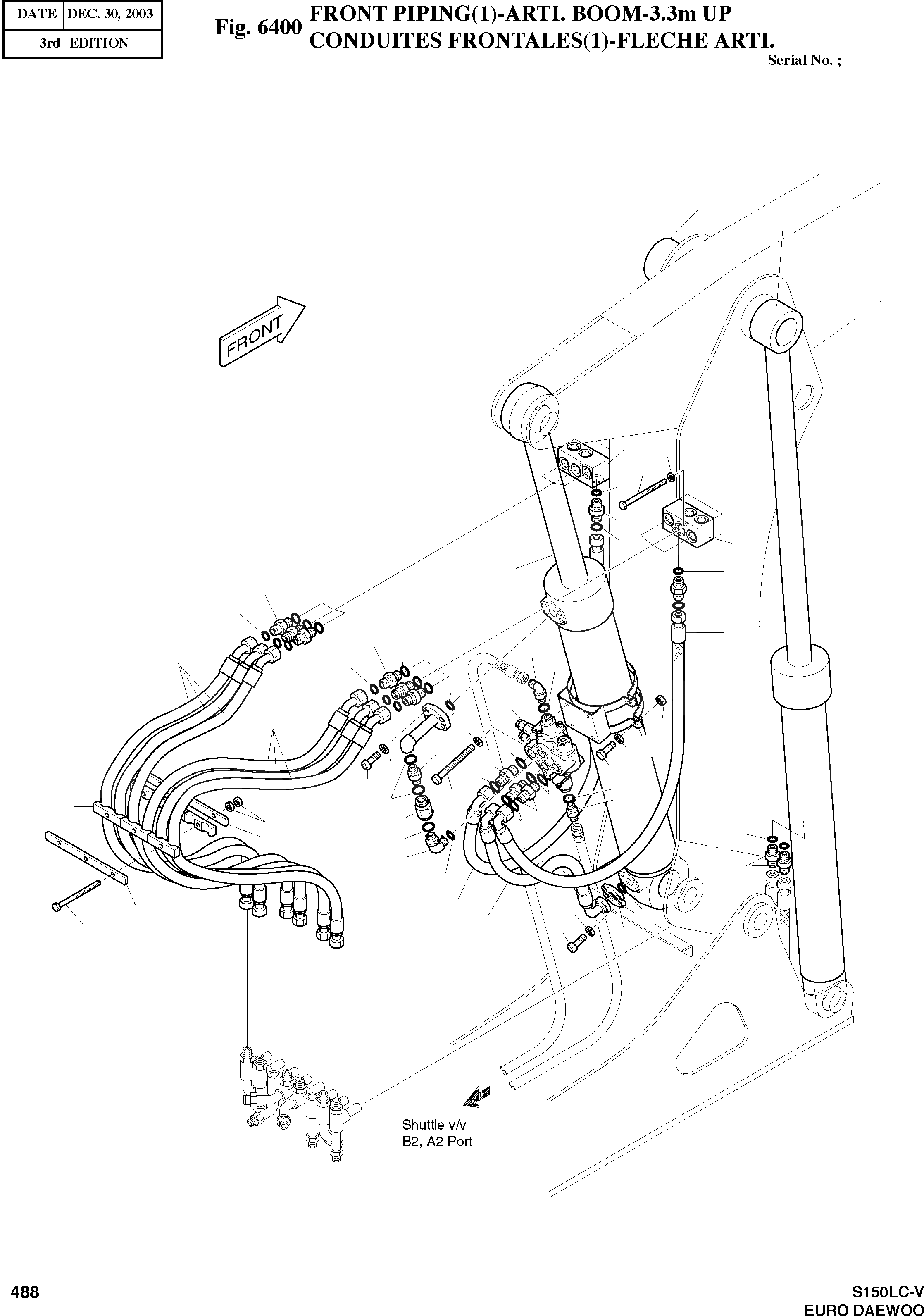

Запчасти Doosan Daewoo FRONT PIPING(1)-ARTI. BOOM-3.3M UP-NO. L.V OPTION PARTS

-

400-00579

FRONT PIPING

SC: D

-2шт.

11

2124-1226

CLAMP;RUBBER

desc: COLLIER

6шт.

13

S0559553

BOLT M10X1.5X100

desc: BOULON A 6 PANS

3шт.

14

S4012633

NUT M10X1.5

desc: ECROU

10шт.

16

S5110601

WASHER;SPRING M10

SERIAL: 1-50200

8шт.

16

S5110603

WASHER;SPRING

SERIAL: 50201

8шт.

17

2184-1212D3

HOSE 1900L

desc: TUYAU FLEXIBLE

6шт.

18

2184-1197D4

HOSE 1100L

desc: TUYAU FLEXIBLE

2шт.

19

2423-1435

BLOCK(L.H)

desc: BLOC

1шт.

22

2423-1436

BLOCK(R.H)

desc: BLOC

1шт.

23

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

11шт.

24

2420-9365

VALVE;ARTI

desc: VANNE DE REFRACTION

1шт.

25

S0759353

BOLT M10X1.25X90

desc: BOULON A 6 PANS

7шт.

26

2195-4410

BRACKET

desc: SUPPORT

1шт.

27

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

28

2183-3842A

PIPE

desc: TUYAU

1шт.

29

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1-50200

4шт.

29

S2212366

BOLT;SOCKET

SERIAL: 50201

4шт.

30

2181-1702D4

ELBOW 2-PF1/4

desc: COUDE

1шт.

31

2181-2421

ELBOW 2-PF3/4

desc: COUDE

1шт.

33

2181-4133D12

ADAPTER PF1-1 3/16UNF

desc: RACCORD ADAPTATEUR

1шт.

35

2181-1126D14

ADAPTER 2-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

36

2184-1202D25

HOSE 630L

desc: TUYAU FLEXIBLE

1шт.

37

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

38

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1-50200

4шт.

38

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 50201

4шт.

39

2180-1026D2

O-RING D24.99X3.53

desc: JOINT TORIQUE

1шт.

40

S8010301

O-RING PF3/4

desc: JOINT TORIQUE

1шт.

41

S8000241

O-RING P24

desc: JOINT TORIQUE

14шт.

42

S8000111

O-RING P11

desc: JOINT TORIQUE

2шт.

43

S8000291

O-RING P29

desc: JOINT TORIQUE

1шт.

44

2191-4290

PLATE

desc: PLAQUE

2шт.

47

2420-9101A

VALVE;SLOW RETURN

desc: CLAPET RETOUR BASSE

1шт.

50

2181-4133D5

ADAPTER UNF1 3/16-PF3/4

desc: RACCORD ADAPTATEUR

10шт.

51

2181-1126D6

ADAPTER PF1/2

desc: RACCORD ADAPTATEUR

4шт.

52

2440-9097A

CYLINDER;ARTI

desc: VERIN DE REFRACTION

1шт.

53

2440-9132A

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE DROIT

1шт.

54

2440-9133A

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE GAUCHE

1шт.

58

2181-1938D11

ADAPTER PF3/4

desc: ROCCORD ADAPTATEUR

1шт.

64

S8030121

O-RING UNF1 3/16

desc: JOINT TORIQUE

11шт.

66

S8000181

O-RING P18

desc: JOINT TORIQUE

4шт.
