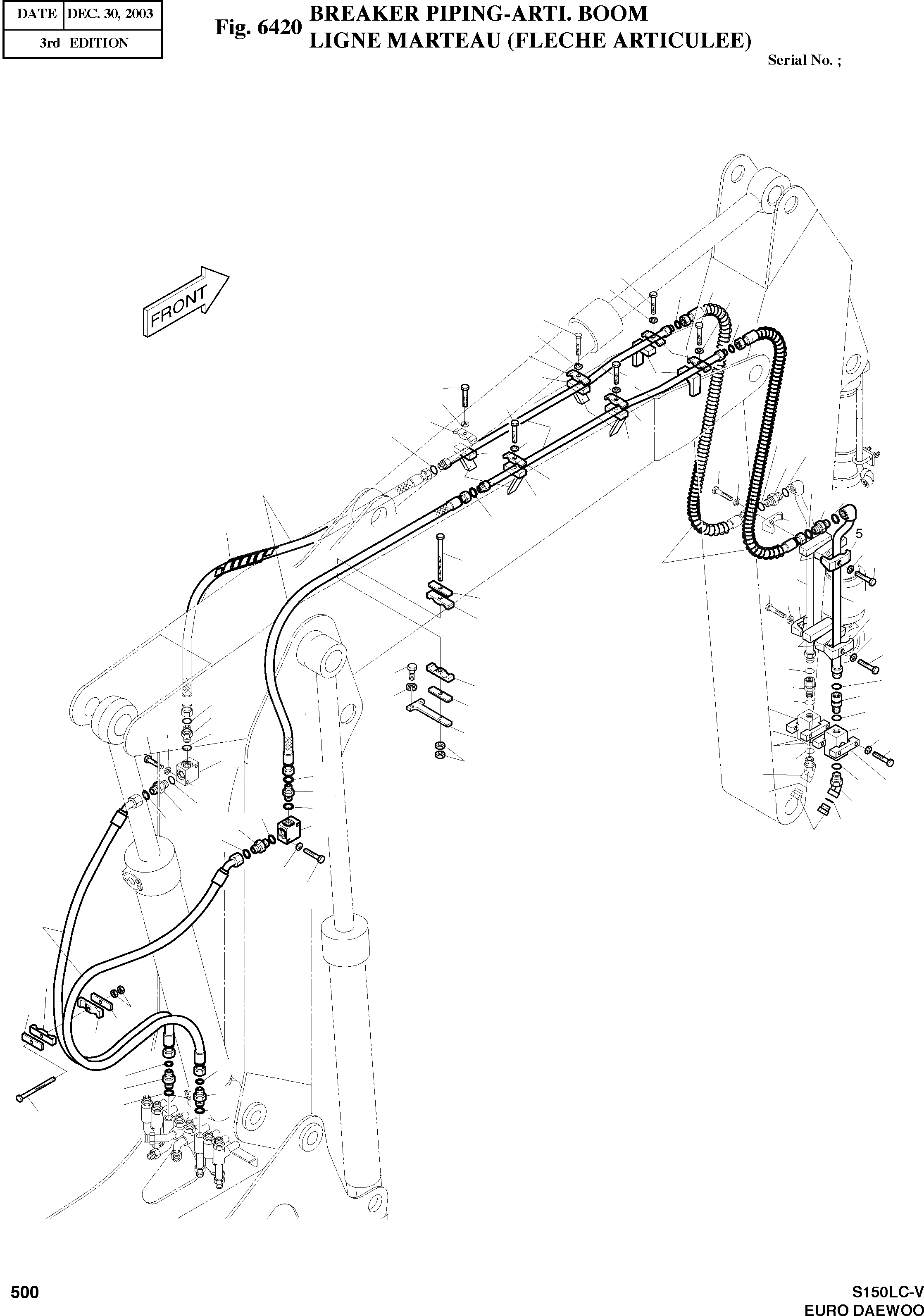

Запчасти Doosan Daewoo BREAKER PIPING-ARTI. BOOM-2.8M UP OPTION PARTS

-

9400-1064

BREAKER PIPING FOR ARTI.BOOM

desc: LIGNE MARTEAU(FLECH. ARTI.)

-2шт.

1

2183-3427

PIPE

desc: TUYAU

2шт.

2

9195-1160

SUPPORT

desc: SUPPORT

2шт.

3

184-2026DW180

HOSE

desc: TUYAU FLEXIBLE

2шт.

4

2191-1219D30

SEAT;SCREW

desc: VIS

4шт.

5

2124-1026D2

CLAMP;PIPE

desc: COLLIER

4шт.

6

S5102703

WASHER;SPRING M12

desc: RONDELLE GROWER

18шт.

7

S0560753

BOLT M12X1.25X50

desc: BOULON A 6 PANS

10шт.

8

2184-1196D11

HOSE; 1 3/16 UNF-12-2150L

desc: TUYAU FLEXIBLE

2шт.

9

2181-2817D1

PLUG; ORS 3/4

desc: BOUCHON

2шт.

10

2191-3692

PLATE

desc: PLAQUE

2шт.

11

2124-1226

CLAMP

desc: COLLIER

6шт.

12

181D2419D5

ELBOW

desc: ECROU

2шт.

13

S0559553

BOLT M10x1.5X100

desc: BOULON A 6 PANS

3шт.

14

S4012633

NUT M10X1.5

desc: ECROU

6шт.

15

191D002D5

SCREW;SET

desc: TUYAU

4шт.

16

183D1115D5

PIPE; ARM

desc: TUYAU

2шт.

17

2184-1212D3

HOSE;3/4-1900L

desc: TUYAU FLEXIBLE

2шт.

18

181D22006D4

ADAPTER;UNION

desc: RACCORD

2шт.

19

420D9602

VALVE;STOP

desc: VANNE

2шт.

20

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

21

191D003D4

SCREW;SEAT

desc: BOULON A 6 PANS

2шт.

22

191D004D2

CLAMP

desc: RONDELLE GROWER

2шт.

23

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

4шт.

24

S0561363

BOLT M12X1.75X80

desc: BOULON A 6 PANS

4шт.

25

S8000241

O-RING

desc: JOINT TORIQUE

12шт.

26

2191-4291

PLATE

desc: PLAQUE

4шт.

27

2181-4133D5

ADAPTER

desc: RACCORD

8шт.

28

2158-1003D6

PROTECTOR;HOSE

desc: PROTECTION

2шт.

29

S8030121

O-RING

desc: JOINT TORIQUE

16шт.

30

2423-1437

BLOCK

desc: BLOC

2шт.

31

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

4шт.

32

2124-1025D3

CLAMP;PIPE

desc: COLLIER

6шт.

33

891D1543

PLATE

desc: COLLIER

4шт.
