Запчасти Doosan Daewoo LOCK VALVE PIPING-BOOM 4.6M FRONT PARTS

-

9400-1124

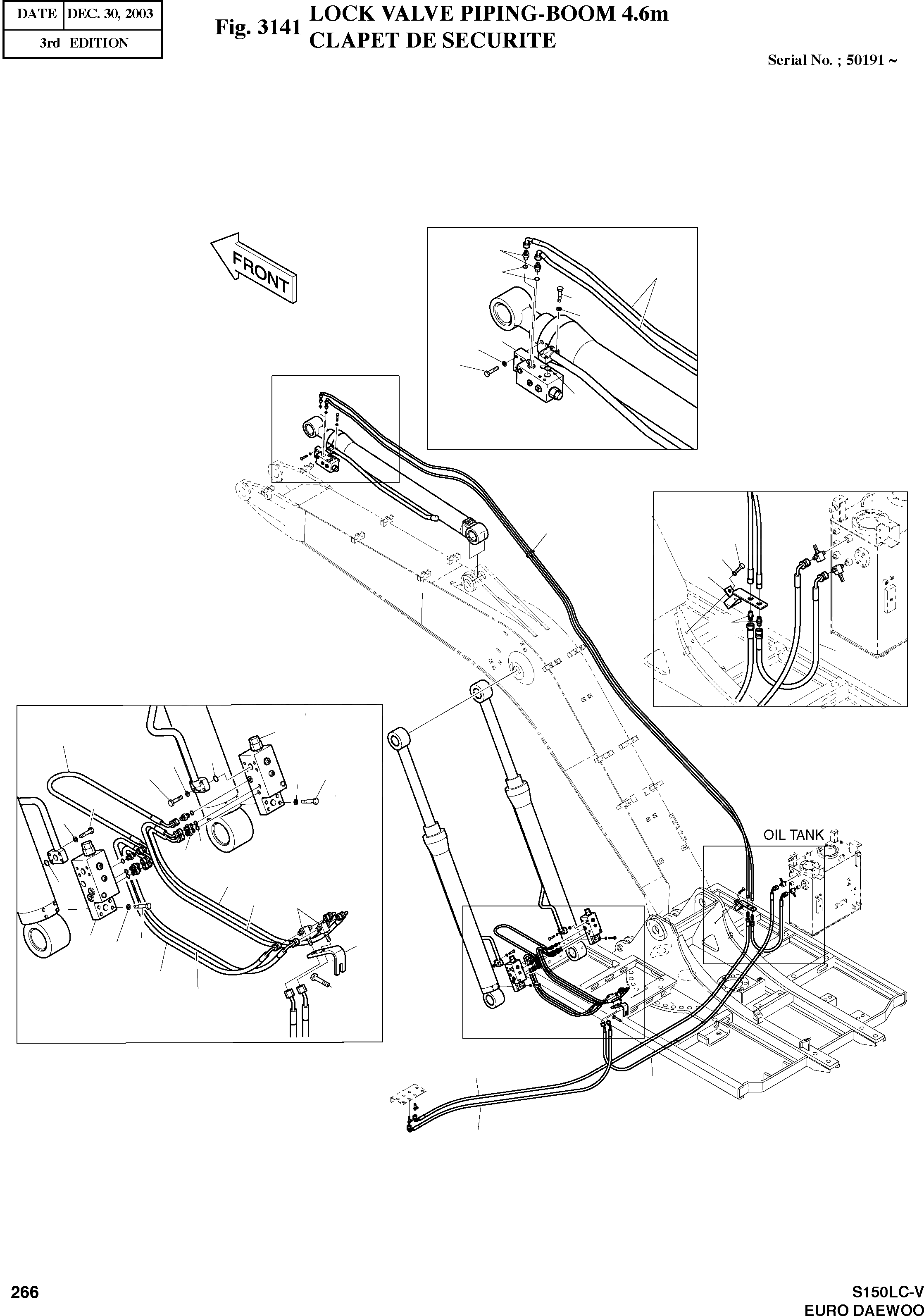

LOCK VALVE PIPING-BOOM 4.6m

SERIAL: 50191

-2шт.

28

S2212566

BOLT;SOCKET M10X1.5X45

desc: BOULON A 6 PANS

8шт.

35

9420-6018A

LOCK VALVE;BOOM

desc: CLAPET DE SECURITE

3шт.

36

2181-1126D14

ADAPTER

desc: RACCORD

2шт.

37

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

38

2124-1084D2

CLIP;BAND

desc: ATTACHE TUYAU

15шт.

39

S5110603

WASHER;SPRING

desc: RONDELLE GROWER

24шт.

40

S8000281

O-RING

desc: JOINT TORIQUE

3шт.

41

195-00068

BRACKET

desc: SUPPORT

1шт.

42

S0511953

BOLT M10X1.5X22

desc: BOULON A 6 PANS

2шт.

43

181-00007

ADAPTER

desc: RACCORD

2шт.

44

S2212666

BOLT M10X1.5X50

desc: BOULON A 6 PANS

16шт.

45

181-00008

TEE

desc: TE

2шт.

46

DS2059383

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1061D277

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

2шт.

48

2184-1036D405

HOSE PF1/4-5550L

desc: TUYAU FLEXIBLE

2шт.

49

2184-1036D25

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

50

2184-1076D54

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

1шт.

51

DS2058208

HOSE PF3/8-1850L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1046D273

HOSE PF3/8-810L

desc: TUYAU FLEXIBLE

1шт.

53

197-00068

SUPPORT

desc: SUPPORT

1шт.

54

S5102603

WASHER;SPRING

desc: RONDELLE GROWER

2шт.

55

DS2059385

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

56

2181-1126D102

ADAPTER

desc: RACCORD

6шт.
