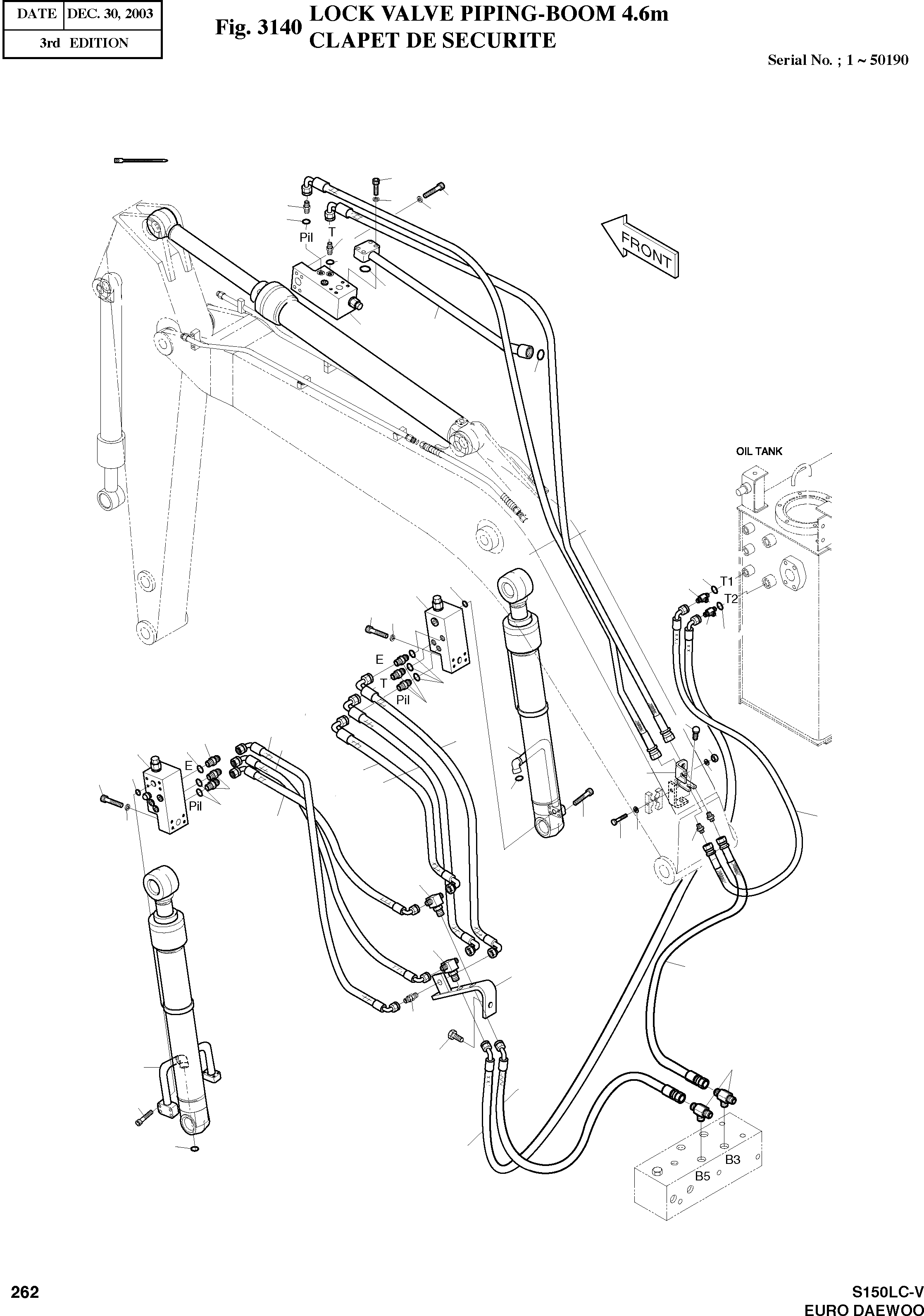

Запчасти Doosan Daewoo LOCK VALVE PIPING-BOOM 4.6M FRONT PARTS

-

9400-1051B

LOCK VALVE ASS'Y-4.6m & ALL

SERIAL: 1-50190

-2шт.

1

9420-6018A

LOCK VALVE;ARM

desc: CLAPET DE SECURITE

1шт.

2

S5110613

WASHER;SPRING M10

desc: RONDELLE GROWER

8шт.

3

S2212663

BOLT;SOCKET M10X50

desc: BOULON A 6 PANS CREUX

4шт.

4

2181-1126D14

ADAPTER

desc: RACCORD

8шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

6

S2212463

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

7

2124-1084D2

CLIP;BANE

desc: ATTACHE TUYAU

20шт.

8

9184-1009D25

HOSE PF1/4-3880L

desc: TUYAU FLEXIBLE

2шт.

9

9184-1010D49

HOSE BSP3/8-2550L

desc: TUYAU FLEXIBLE

1шт.

10

S0560963

BOLT M12X60

desc: BOULON A 6 PANS

1шт.

11

S0515463

BOLT M12X40

desc: BOULON A 6 PANS

1шт.

12

9195-1125

BRACKET

desc: SUPPORT

1шт.

13

S0516663

BOLT M12X100

desc: BOULON A 6 PANS

1шт.

14

S4012733

NUT

desc: ECROU

1шт.

15

S5010713

WASHER M12

desc: RONDELLE

2шт.

16

9181-1033

DOUBLE-UNION

desc: RACCORD

2шт.

17

9195-1149

SUPPORT

desc: SUPPORT

1шт.

18

9181-1034

TEE

desc: TE

2шт.

19

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

20

9181-1037

ADAPTER

desc: RACCORD

1шт.

21

S8030121

O-RING

desc: JOINT TORIQUE

1шт.

22

9184-1014D16

HOSE-800L

desc: TUYAU FLEXIBLE

1шт.

23

9184-1014D14

HOSE-650L

desc: TUYAU FLEXIBLE

1шт.

24

S2209263

BOLT M12X30

desc: BOULON A 6 PANS

8шт.

25

9183-1085

PIPE ASS'Y

desc: TUYAU

1шт.

26

9184-1022D22

HOSE-2000L

desc: TUYAU FLEXIBLE

1шт.

27

9184-1050D11

HOSE-1500L

desc: TUYAU FLEXIBLE

1шт.

28

9181-1011D3

TEE

desc: TE

2шт.

29

2181-1951D21

TEE

desc: TE

2шт.

30

9420-6021

LOCK VALVE;BOOM

desc: CLAPET DE SECURITE

2шт.

31

9183-1107

PIPE ASS'Y(R.H)

desc: TUYAU

1шт.

32

9183-1108

PIPE ASS'Y(L.H)

desc: TUYAU

1шт.

33

2180-1026D30

O-RING

desc: JOINT TORIQUE

2шт.

34

S2209663

BOLT;SOCKET M8X50

desc: BOULON A 6 PANS

8шт.

35

S5110513

WASHER;SPRING

desc: RONDELLE GROWER

8шт.

36

9184-1014D15

HOSE-750L

desc: TUYAU FLEXIBLE

1шт.

37

9184-1009D28

HOSE-2250L

desc: TUYAU FLEXIBLE

1шт.

38

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

39

9184-1014D17

HOSE-650L

desc: TUYAU FLEXIBLE

1шт.

40

9184-1014D18

HOSE-750L

desc: TUYAU FLEXIBLE

1шт.

41

9184-1014D19

HOSE-800L

desc: TUYAU FLEXIBLE

1шт.

42

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

101

9180-7028

SEAL KIT VALVE(9420-6021)

desc: KIT DE JOINTS

1шт.

102

9180-7025

SEAL KIT VALVE(9420-6018)

desc: KIT DE JOINTS

1шт.
