Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

9400-1118A

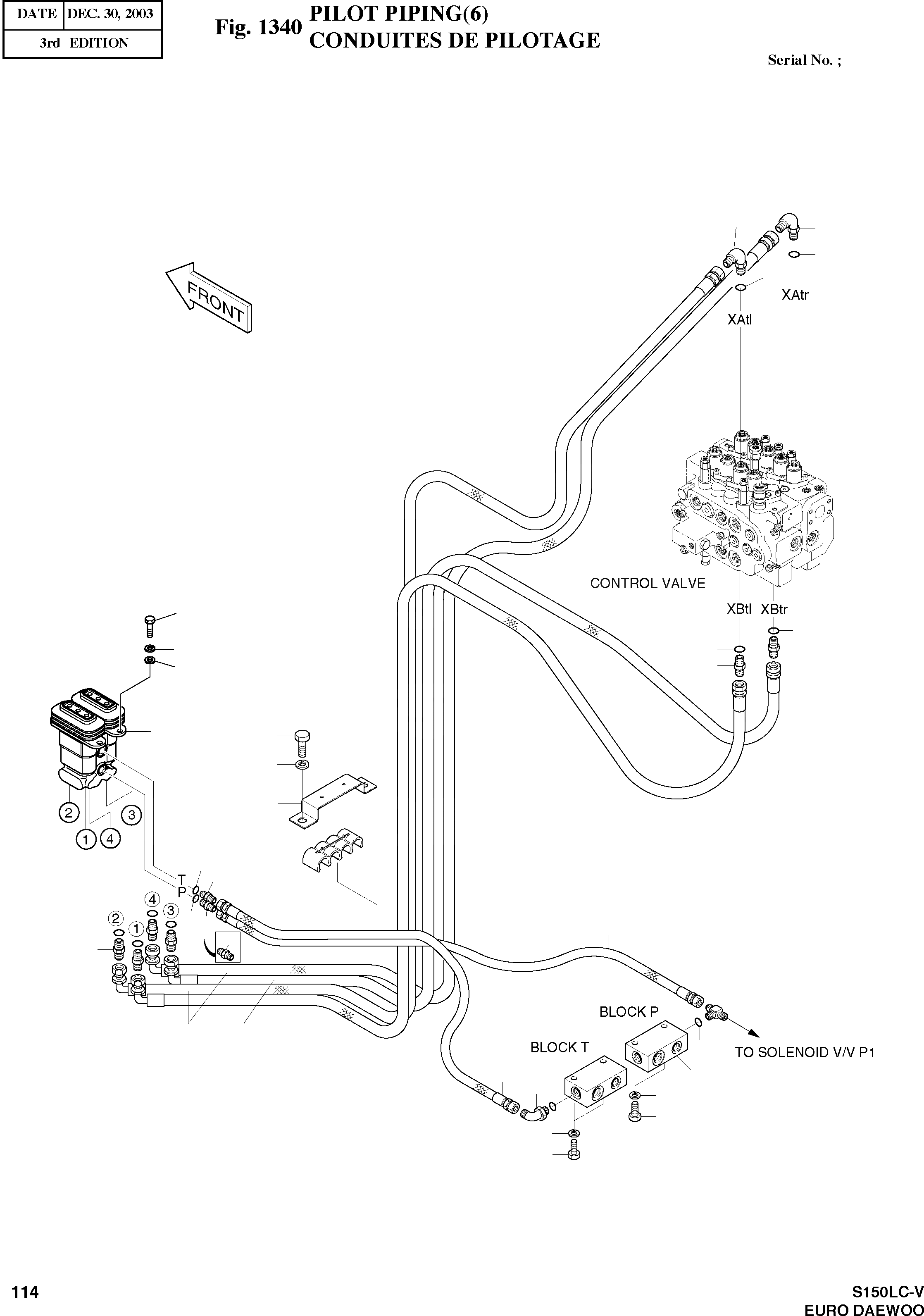

PILOT PIPING

SC: D

-2шт.

8

S8000141

O-RING 3/8

desc: JOINT TORIQUE

6шт.

13

S8000111

O-RING 1/4

desc: JOINT TORIQUE

6шт.

14

2181-1126D14

ADAPTER PFO1/4 PF1/4

SERIAL: 1-50168

5шт.

14

2181-1126D14

ADAPTER PFO1/4 PF1/4

SERIAL: 50169

6шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER

2шт.

24

2181-1702D10

ELBOW PFO3/8 PF1/4

desc: COUDE

3шт.

25

2181-1126D36

ADAPTER PFO3/8 PF1/4

desc: RACCORD

2шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER M10

4шт.

38

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

39

2124-1594A

CLAMP;HOSE

desc: ATTACHE DE TUYAU

1шт.

40

2124-1595A

CLAMP;HOSE

desc: ATTACHE DE TUYAU

1шт.

42

2471-1133

ADAPTER;FILTER PFO PF1/4

SERIAL: 1-50168

1шт.

50

2181-2281D4

TEE PFO 3/8 2-PF1/4

desc: TE

1шт.

51

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

52

2423-1470

BLOCK

desc: BLOC

2шт.

66

2184-1045D38

HOSE S-S 1/4-425L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1045D38

HOSE S-S 1/4-425L

desc: TUYAU FLEXIBLE

1шт.

70

2184-1046D180

HOSE S-90 1/4-2700L

desc: TUYAU FLEXIBLE

2шт.

71

2184-1046D188

HOSE S-90 1/4-2400L

desc: TUYAU FLEXIBLE

2шт.

108

2420-9501A

PEDAL VALVE

SERIAL: 1-50180

1шт.

108

420-00030

PEDAL VALVE

SERIAL: 50181

1шт.

109

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1-50180

4шт.

109

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 50181

4шт.

110

S5110601

WASHER;SPRING

desc: RONDELLE GROWER

4шт.

127

S5010613

WASHER;PLAIN

SERIAL: 50168

4шт.
