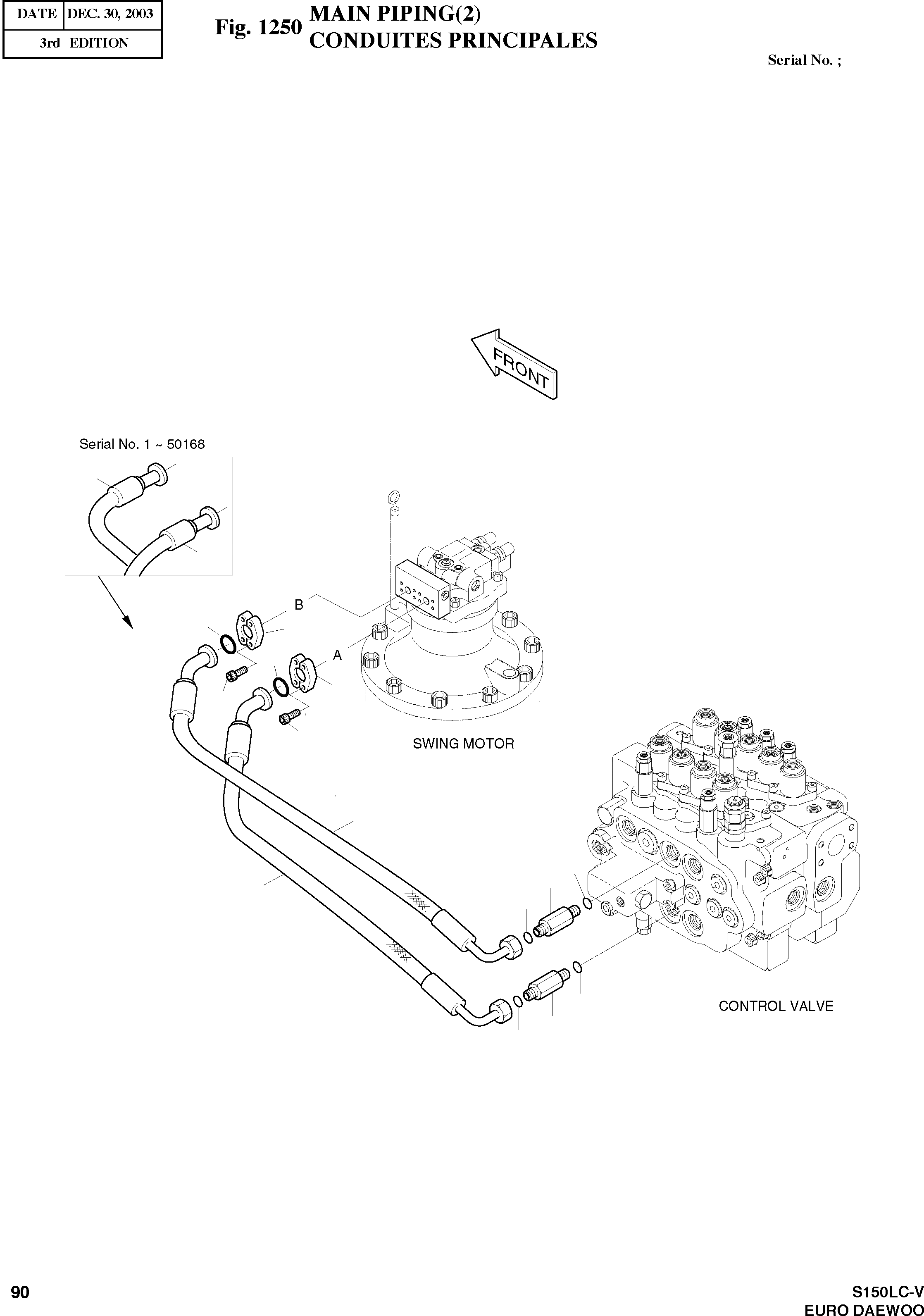

Запчасти Doosan Daewoo MAIN PIPING(2) BODY PARTS

-

2400-1800A

MAIN PIPING

SC: D

-2шт.

-

9400-1122A

MAIN PIPING

SC: D

-2шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

27

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

33

2184-1201D27

HOSE;SWING(L) PF1/2-450L

SERIAL: 1-50168

1шт.

33

2184-1216D17

HOSE;SWING(L) PF1/2-420L

SERIAL: 50169

1шт.

34

2184-1201D28

HOSE; SWING(R)PF1/2-550L

SERIAL: 1-50168

1шт.

34

2184-1216D18

HOSE; SWING(R)PF1/2-500L

SERIAL: 50169

1шт.

52

2181-2627D8

ADAPTER PFO3/4-PF1/2

desc: RACCORD

2шт.

58

2181-9089

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

59

S2209961

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

8шт.

60

2180-1026D30

O-RING 1/2

desc: JOINT TORIQUE

2шт.
