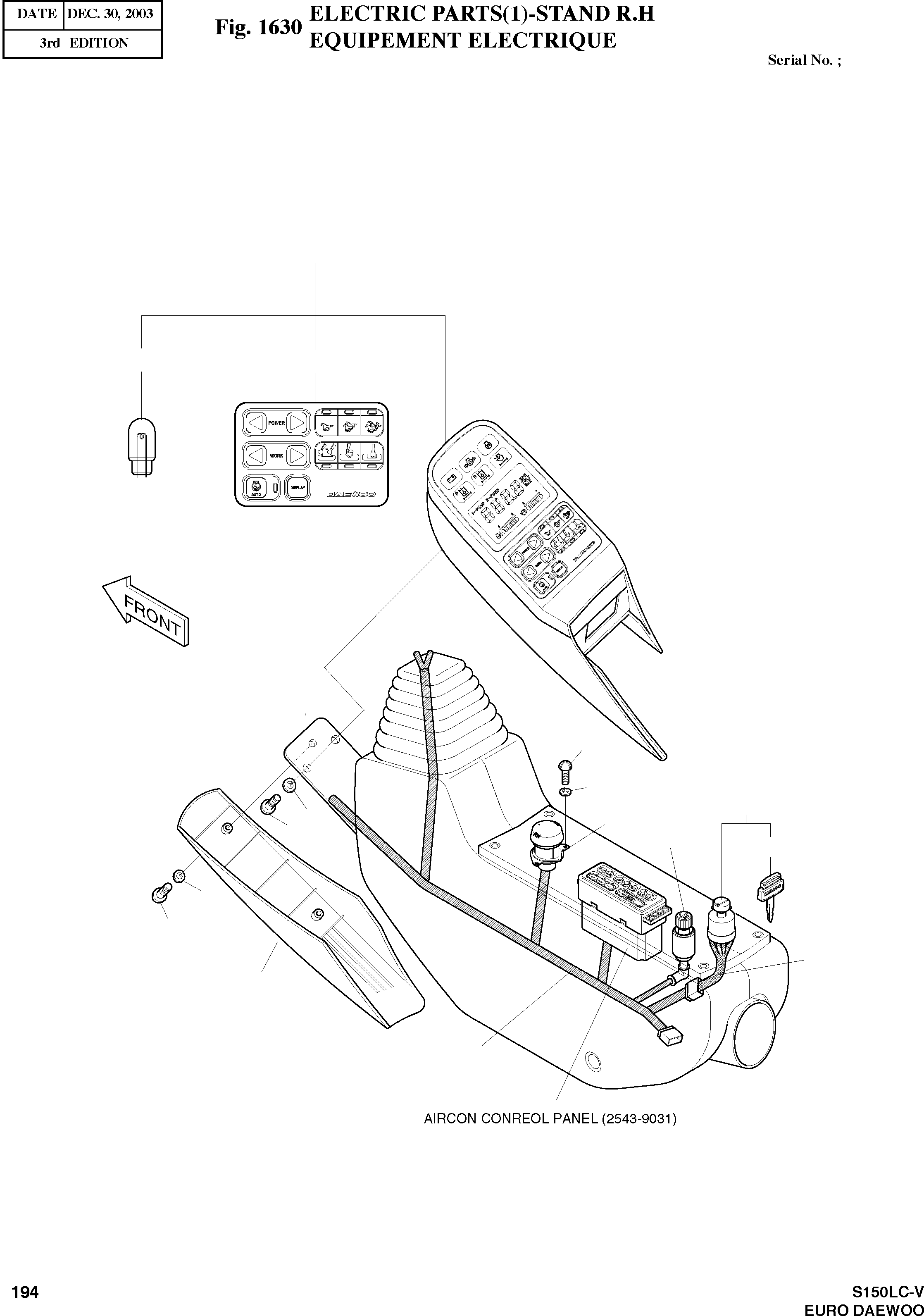

Запчасти Doosan Daewoo ELECTRIC PARTS(1)-STAND R.H BODY PARTS

-

2500-1178E

ELECTRIC PARTS(1)-STAND R.H

SC: D

-2шт.

1

2539-1068A

PANEL;LCD GAUGE

desc: CONSOLE

1шт.

1A

2190-3166

SHEET;SWITCH

desc: . PLAQUE

1шт.

1B

S862203H

BULB 24V 3W

desc: . AMPOULE

6шт.

2

S3450953

SCREW M6X10X14

desc: VIS

4шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE GROWER

4шт.

4

2621-3740

COVER;GAUGE PANEL

desc: COUVERCLE

1шт.

5

S3450823

SCREW M5X0.8X10

desc: VIS

2шт.

6

S5100203

WASHER;SPRING M5

desc: RONDELLE GROWER

2шт.

7

2552-1004

DIAL;ENGINE CONTROL

desc: CADRAN

1шт.

8

S3450583

SCREW M4X0.7X12

desc: VIS

2шт.

9

S5100103

WASHER;SPRING M4

desc: RONDELLE GROWER

2шт.

10

2549-1152

SWITCH;STARTER

desc: INTERRUPTEUR

1шт.

10A

2172-1134

KEY;STARTER SWITCH

desc: . CLE DE DEMARRAGE

2шт.

11

545-00001

LIGHTER;CIGAR

desc: ALLUME-CIGARE

1шт.

31

2530-1601A

HARNESS;STAND(R.H)

desc: FAISCEAU

1шт.

34

2530-1427

HARNESS;STARTER SW

desc: FAISCEAU

1шт.
