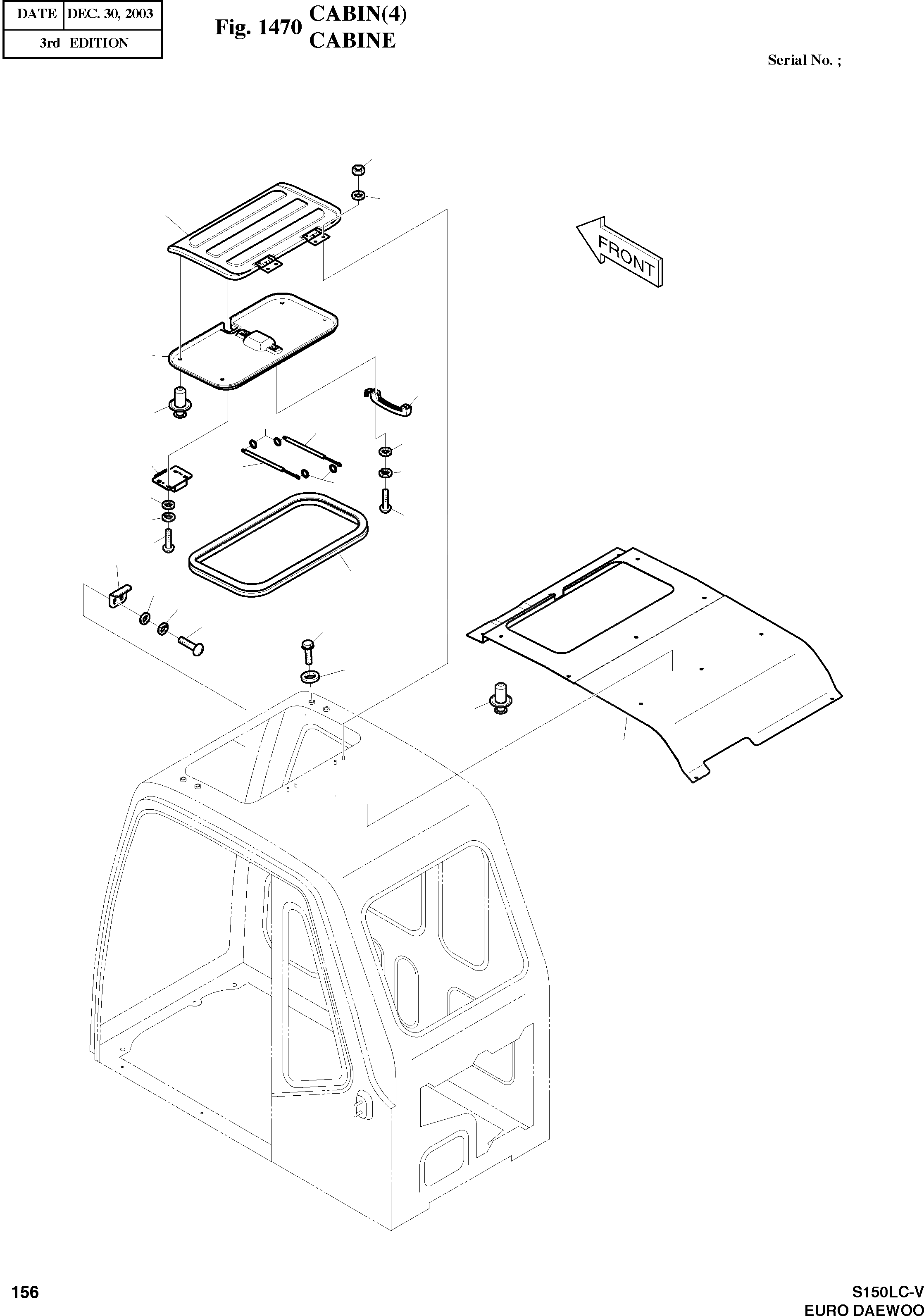

Запчасти Doosan Daewoo CABIN(4) BODY PARTS

-

2622-1432J

CABIN ASS'Y

SERIAL: 1-50143

1шт.

-

2622-1432P

CABIN ASS'Y

SERIAL: 50144-50180

1шт.

-

2622-1432Q

CABIN ASS'Y

SERIAL: 50181-50190

1шт.

-

2622-1432R

CABIN ASS'Y

SERIAL: 50191

1шт.

1-9

2621-3767A

PANEL ASM;COVER ROOF

desc: . PORTE

1шт.

1-10

S4012533

NUT M8X1.25

desc: . ECROU

4шт.

1-11

S5010513

WASHER;PLAIN

desc: . RONDELLE

4шт.

24

2162-1065

STRIP;WEATHER

desc: TAMPON

1шт.

37

S3450973

SCREW M6X1.0X16

desc: VIS M6X1.0X20

2шт.

38

S5010313

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

39

S5102303

WASHER;SPRING

desc: RONDELLE GROWER

4шт.

46

2120-2166D4

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

57

S3450833

SCREW M5X0.8X12

desc: VIS

4шт.

58

S5010213

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

59

S5102203

WASHER;SPRING

desc: RONDELLE GROWER

4шт.

72

2161-2198

PAD;ROOF

desc: CAOUTCHOUC

1шт.

73

2161-2199

PAD;ROOF

desc: CAOUTCHOUC

1шт.

85

2172-1112

HANDLE;ROOF

desc: POIGNEE

1шт.

86

S3450993

SCREW

desc: VIS

2шт.

97

2125-9057

LOCK

desc: VERROU

1шт.

98

2142-1122A

STRIKER;COVER ROOF

desc: FRAPPER

1шт.

99

2440-9251

SPRING;GAS

desc: RESSORT

2шт.

100

S6540600

RING;RETAINING

desc: BAGUE CIRCLIPS

4шт.

150

2114-1058D45

WASHER; PLAIN

desc: RONDELLE PLATE

4шт.

153

2120-2174

SCRIVET

desc: RIVET

19шт.
