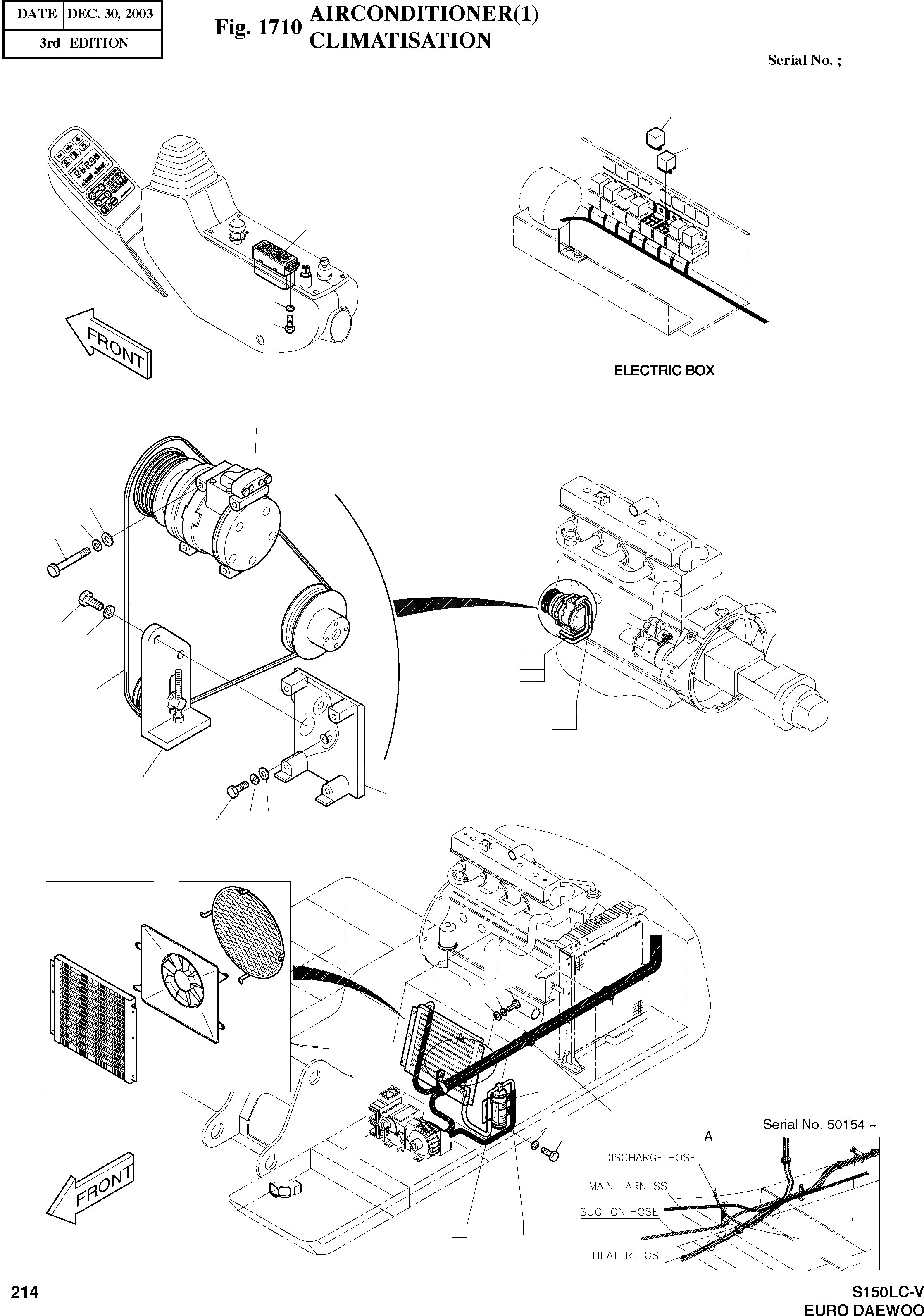

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

2920-1080

COOLER & HEATER ASS'Y

SC: D

-2шт.

1

2543-9031

PANEL;AIRCON CONTROL

SERIAL: 1-50119

1шт.

1

2543-9031A

PANEL;AIRCON CONTROL

SERIAL: 50120

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN M4

desc: RONDELLE PLATE

4шт.

4

2544-9033

RELAY;COMPRESSOR

desc: RELAIS COMPRESSEUR

1шт.

5

2544-9033

RELAY;CONDENSER FAN

desc: RELAIS VENTILATEUR DE COND

1шт.

6

2208-6013B

COMPRESSOR 10PA 15C(4PK)

desc: COMPRESSEUR

1шт.

7

S0557553

BOLT M8X1.25X110

SERIAL: 1-50125

4шт.

7

S0557153

BOLT M8X1.25X110

SERIAL: 50126

4шт.

8

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER

4шт.

9

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

10

2197-1798B

BRACKET;COMPRESSOR

desc: SUPPORT

1шт.

11

S0712153

BOLT M10X1.25X28

desc: BOULON A 6 PANS

1шт.

12

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

1шт.

13

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

1шт.

14

2107-6006

PULLEY ASS'Y;IDLE 4PK

desc: ENSEMBLE POULIE FOU

1шт.

15

S0759853

BOLT M10X1.25X115

desc: BOULON A 6 PANS

2шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

2шт.

17

2106-1019D10

BELT;V 4PK 900L

desc: COURROIE-V

1шт.

18

2185-1705

HOSE;DISCHARGE L1900

desc: TUYAU FLEXIBLE

1шт.

18A

2180-6088

O-RING(COMP)

desc: . JOINT TORIQUE

1шт.

18B

2180-6089

O-RING(COND)

desc: . JOINT TORIQUE

1шт.

19

2185-1702A

HOSE;SUCTION L2450

desc: FLEXIBLE

1шт.

19A

2180-6086

O-RING(COMP)

desc: . JOINT TORIQUE

1шт.

19B

2180-6087

O-RING(EVA)

desc: . JOINT TORIQUE

1шт.

20

2520-6004

CONDENSER ASS'Y 9500 Kcal/h

desc: ENSEMBLE COMPRESSEUR

1шт.

20A

2520-6005

CONDENSER CORE ASS'Y

desc: . ENSEMBLE COMPRESSEUR

1шт.

20B

2538-6018

MOTOR ASS'Y;FAN 24V 160W

desc: . MOTEUR

1шт.

20C

2520-6006

NET;CONDENSER

desc: . ENSEMBLE COMPRESSEUR

1шт.

21

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

6шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

6шт.

23

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

6шт.

24

2185-1697D2

HOSE;LIQUID(1) L530

desc: FLEXIBLE

1шт.

24A

2180-6090

O-RING

desc: . JOINT TORIQUE

2шт.

25

2185-1698D1

HOSE;LIQUID(2) L450

desc: FLEXIBLE

1шт.

25A

2180-6090

O-RING

desc: . JOINT TORIQUE

2шт.

26

2204-6039A

RECEIVER DRIER

desc: RESERVOIR DESSICATEUR

1шт.

27

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

28

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWER

2шт.

40

2124-1622D3

CLIP;BAND L280

desc: ATTACHE

5шт.

42

2124-1509D3

CLIP

SERIAL: 50154

1шт.

43

2124-1509D6

CLIP

SERIAL: 50154

1шт.

44

2121-1305

NUT M8X1.25

SERIAL: 50154

1шт.
