Запчасти Doosan Daewoo MAIN PIPING-ROTATING&TILTING&ARTI. BOOM OPTION PARTS

-

400-01436

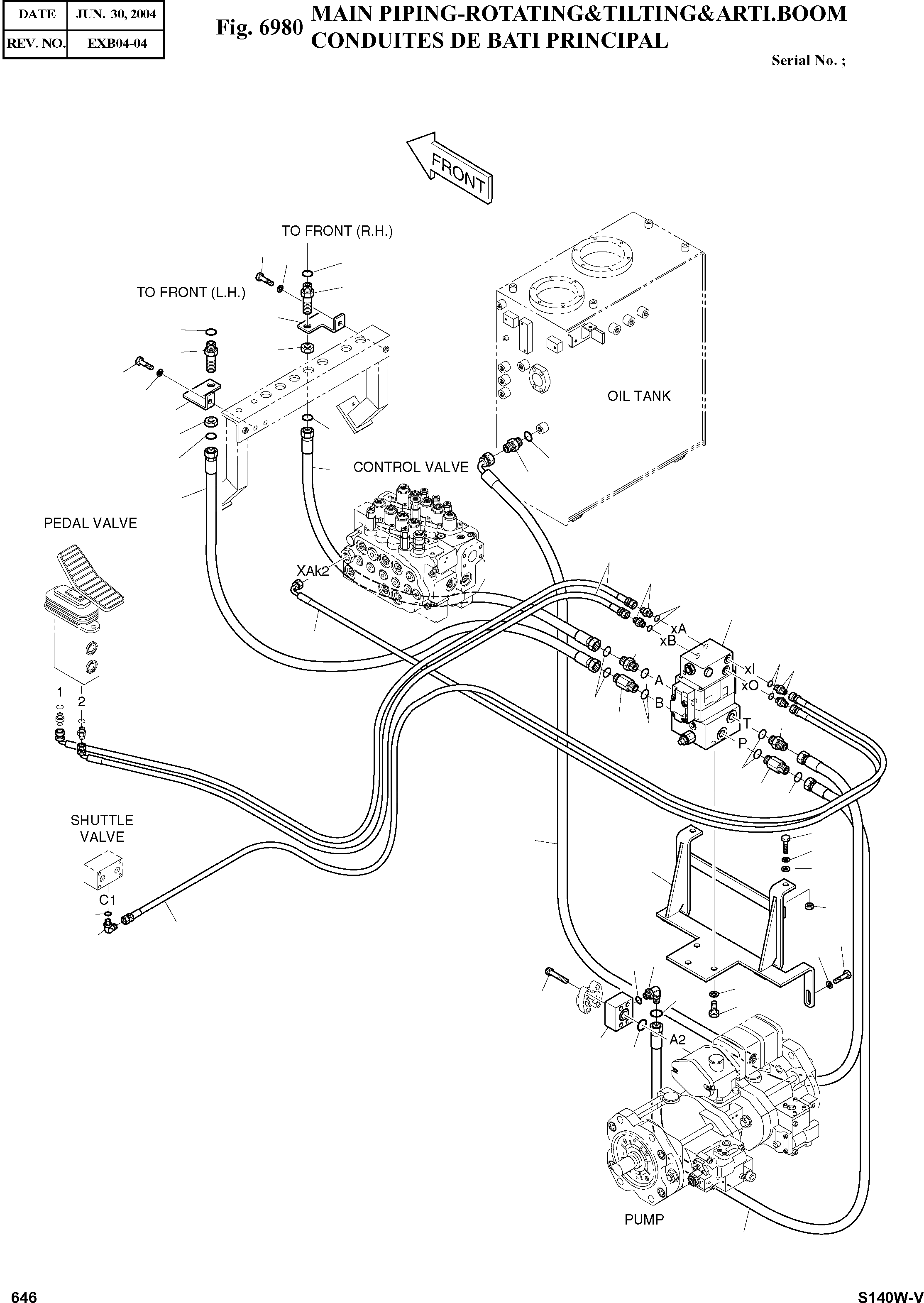

MAIN PIPING-ROTATING&TILTING&ARTI. BOOM

desc: CONDUITES DE BATI PRINCIPAL

-2шт.

1

DS2011304

HOSE(ST-ST) 2700L

desc: TUYAU FLEXIBLE

1шт.

2

2184-1196D149

HOSE(ST-ST) 2300L

desc: TUYAU FLEXIBLE

1шт.

3

DS2011291

HOSE(ST-ST) 1200L

desc: TUYAU FLEXIBLE

1шт.

4

DS2055663

HOSE(90-ST) 2200L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1046D186

HOSE(90-ST) 3900L

desc: TUYAU FLEXIBLE

2шт.

6

2184-1045D94

HOSE(ST-ST) 3900L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1046D180

HOSE(90-ST) 2700L

desc: TUYAU FLEXIBLE

1шт.

8

420-00322C

VAVLE;OPTION

desc: VANNE

1шт.

9

423-00122

BLOCK

desc: BLOC

1шт.

10

195-01835A

BRACKET

desc: SUPPORT

1шт.

11

2181-1126D6

ADAPTER

desc: ADAPTEUR

2шт.

12

S8000181

O-RING

desc: JOINT TORIQUE

6шт.

13

2181-1126D14

ADAPTER

desc: ADAPTEUR

4шт.

14

S8000111

O-RING

desc: JOINT TORIQUE

7шт.

15

S0512453

BOLT M10X1.5X40

desc: BOULON A 6PANS

3шт.

16

S5100603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

17

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

18

S4012633

NUT;HEX M10X1.5

desc: ECROU

2шт.

19

S0515256

BOLT M12X1.75X30

desc: BOULON A 6PANS

4шт.

20

S0515456

BOLT M12X1.75X40

desc: BOULON A 6PANS

1шт.

21

S5100703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

5шт.

22

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON A 6 PANS CREUX

4шт.

23

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

24

2181-4133D3

ADAPTER

desc: ADAPTEUR

1шт.

25

2181-4133D37

ADAPTER

desc: ADAPTEUR

2шт.

26

2181-2815D3

ELBOW ORS1/2-PF1/2

desc: COUDE

1шт.

27

195-02861

BRACKET

desc: SUPPORT

1шт.

28

195-02862

BRACKET

desc: SUPPORT

1шт.

29

DS2415008

ADAPTER

desc: ADAPTEUR

2шт.

30

121-00010D5

NUT

desc: ECROU

2шт.

31

S8030081

O-RING

desc: JOINT TORIQUE

8шт.

32

2181-1702D4

ELBOW

desc: ECROU

1шт.
