Запчасти Doosan Daewoo MAIN PIPING-ROTATING & TILTING OPTION PARTS

-

400-00675A

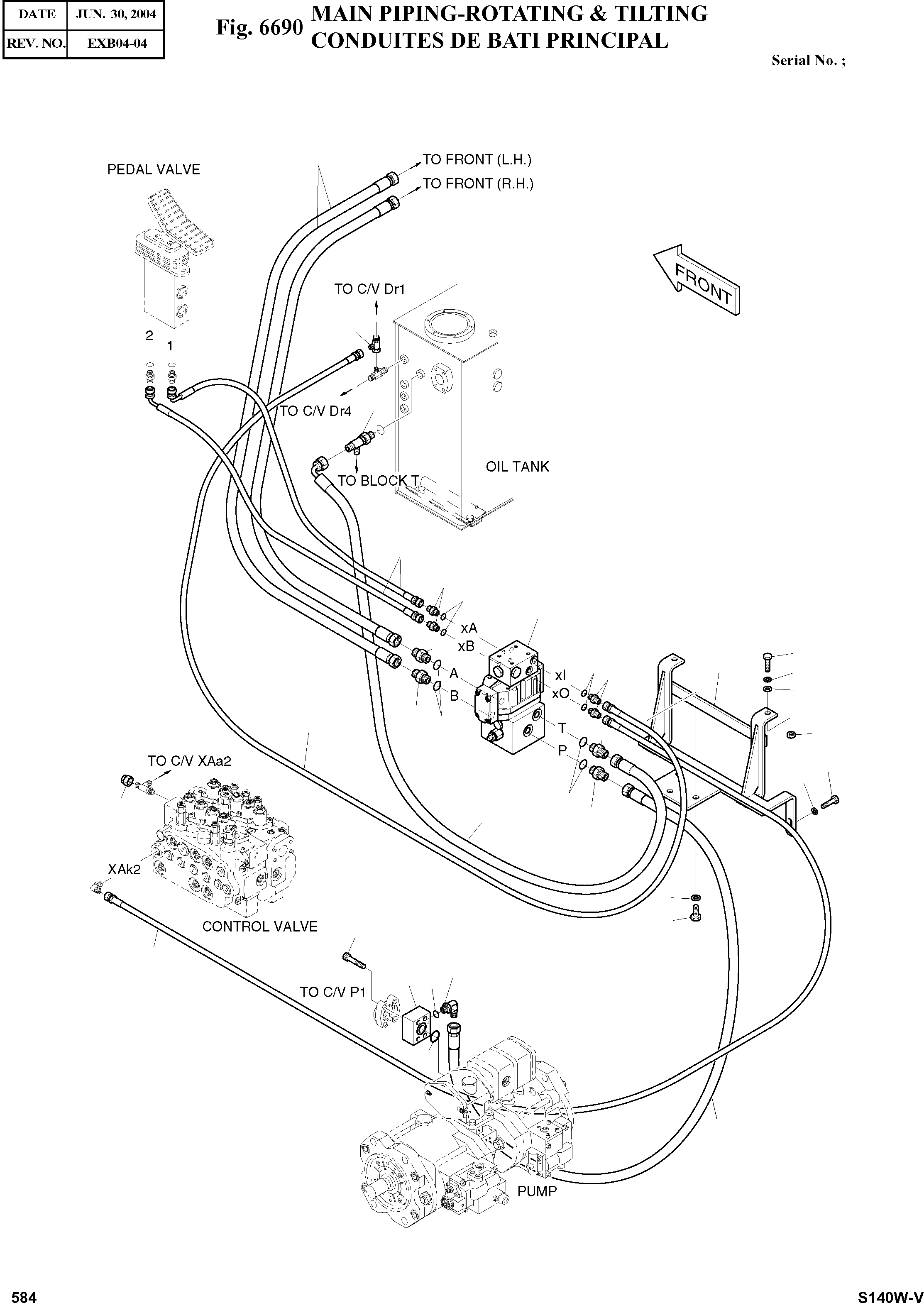

MAIN PIPING-ROTATION & TILTING

SC: D

-2шт.

1

DS2011304

HOSE PF1/2-2700L

desc: TUYAU FLEXIBLE

2шт.

2

DS2011291

HOSE PF1/2-1200L

desc: TUYAU FLEXIBLE

1шт.

3

DS2055663

HOSE PF1/2-2200L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1046D186

HOSE PF1/4-3900L

desc: TUYAU FLEXIBLE

2шт.

5

2184-1046D180

HOSE PF1/4-2700L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1045D152

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

7

420-00322A

VAVLE;OPTION

SERIAL: 1001-1006

1шт.

7

420-00322C

VAVLE;OPTION

SERIAL: 1007

1шт.

8

423-00122

BLOCK

desc: BLOC

1шт.

9

195-01835A

BRACKET;VALVE

desc: SUPPORT

1шт.

10

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: ADAPTEUR

1шт.

11

2181-1951D5

TEE PFO1/2-2PF1/2

desc: TE

1шт.

12

S8000181

O-RING

desc: JOINT TORIQUE

5шт.

13

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

4шт.

14

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

15

181-00673D1

TEE;UNION PFU1/4-2PF1/4

desc: TE

1шт.

16

S0512453

BOLT M10X1.5X40

desc: BOULON A 6PANS

3шт.

17

S5100603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

18

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

19

S4012633

NUT

desc: ECROU

2шт.

20

S0515256

BOLT M12X1.75X30

desc: BOULON A 6PANS

3шт.

21

S5100703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

22

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON A 6 PANS CREUX

4шт.

23

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

24

2181-2820D1

CAP

desc: CHAPEAU

1шт.

25

2181-4133D3

ADAPTER PF1/2

desc: ADAPTEUR

1шт.

26

2181-4133D37

ADAPTER PF1/2

desc: ADAPTEUR

2шт.

27

2181-2815D3

ELBOW PF1/2

desc: COUDE

1шт.
