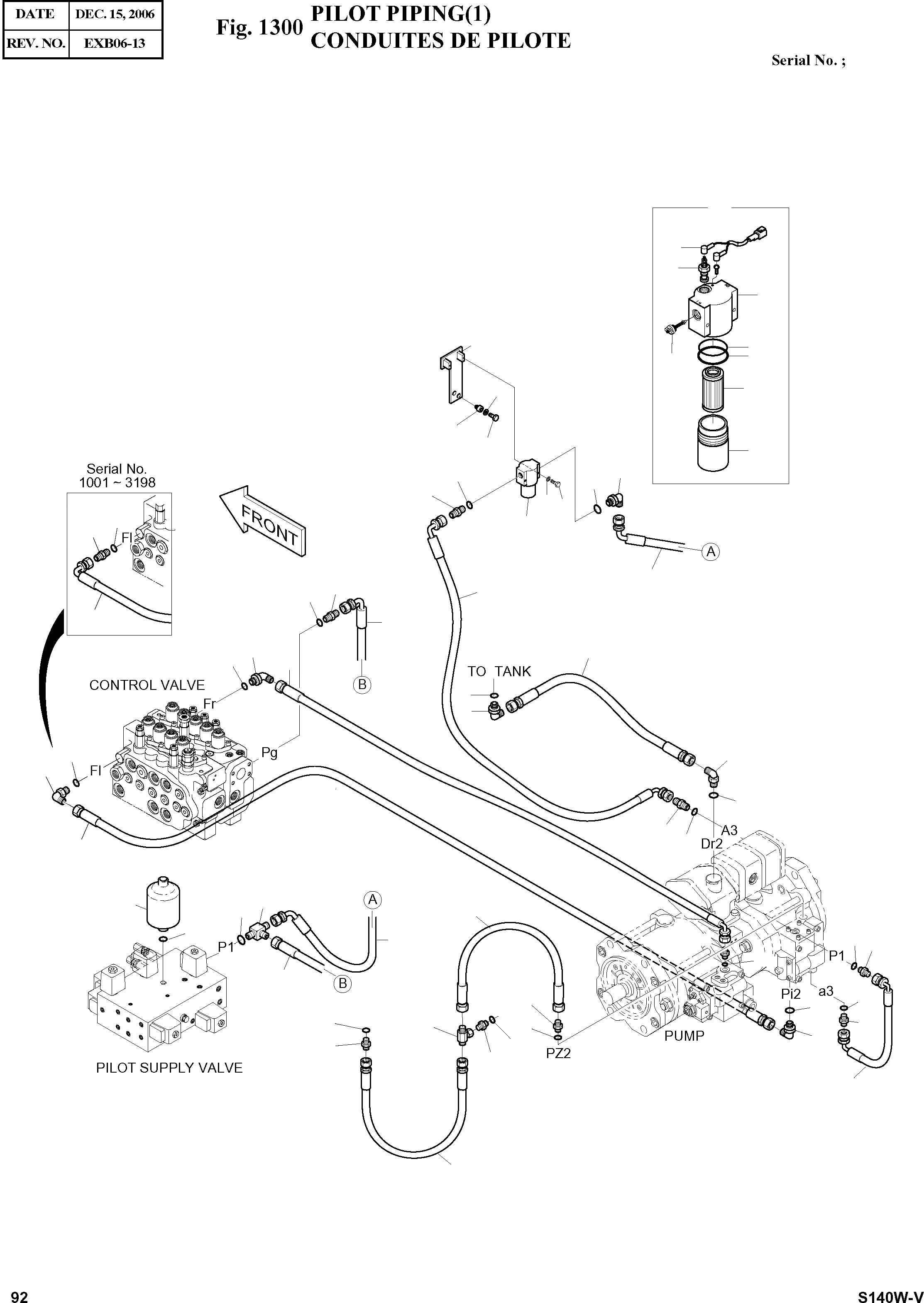

Запчасти Doosan Daewoo PILOT PIPING(1) BODY PARTS

-

400-01165A

PILOT PIPING

SC: D

-2шт.

1

2471-1153

FILTER;PILOT

desc: FILTRE

1шт.

1A

-

HEAD

desc: . CULLASSE

1шт.

1B

2472-7003

CASE

desc: . CARTER

1шт.

1C

2471-1154

ELEMENT

desc: . ELEMENT

1шт.

1D

2426-1237

BYPASS VALVE

desc: . VANNE

1шт.

1E

2471-1155

INDICATOR

desc: . INDICATEUR

1шт.

1F

Y-3738-05

RING;BACK-UP

desc: . BAGUE ANTIEXTRUSION

1шт.

1G

Y-3738-04

O-RING

desc: . JOINT TORIQUE

1шт.

1J

2530-1735

HARNESS;PILOT FILTER

desc: . HARNAIS

1шт.

2

S0553753

BOLT M6X1.0X55

desc: BOULON

2шт.

3

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

4

2181-1702D1

ELBOW PFO3/4-PF3/4

desc: COUDE

2шт.

5

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

6

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1001-3198

8шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 3199

7шт.

18

2460-9054

ACCUMULATOR 0.32L

desc: ACCUMULATEUR

1шт.

21

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: ADAPTEUR

2шт.

43

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 1001-3198

2шт.

43

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 3199

3шт.

44

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

66

2184-1061D268

HOSE PF1/4-550L

SERIAL: 1001-3198

1шт.

66

2184-1061D253

HOSE PF1/4-500L

SERIAL: 3199

1шт.

68

2184-1096D147

HOSE PF1/2-480L

desc: TUYAU FLEXIBLE

1шт.

69

2184-1046D79

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1026D164

HOSE PF3/4-850L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1046D148

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1046D62

HOSE PF1/4-1850L

SERIAL: 1001-3198

1шт.

73

2184-1045D105

HOSE PF1/4-1900L

SERIAL: 3199

1шт.

75

DS2059384

HOSE PF1/2-2170L

desc: TUYAU FLEXIBLE

1шт.

150

2181-1951D19

TEE PFO1/2-PF1/2-PF1/4

desc: TE

1шт.

151

195-01268

PLATE

desc: PLAQUE

1шт.

152

S0512253

BOLT M10X1.5X30

desc: BOULON

2шт.

172

2114-1058D10

WASHER

desc: RONDELLE

2шт.

173

198-00016

RUBBER

desc: CAOUTCHOUC

2шт.

175

2184-1045D112

HOSE PF1/4-510L

desc: TUYAU FLEXIBLE

2шт.

176

2181-4125

TEE PF1/4-PF1/4-PF1/4

desc: TE

1шт.
