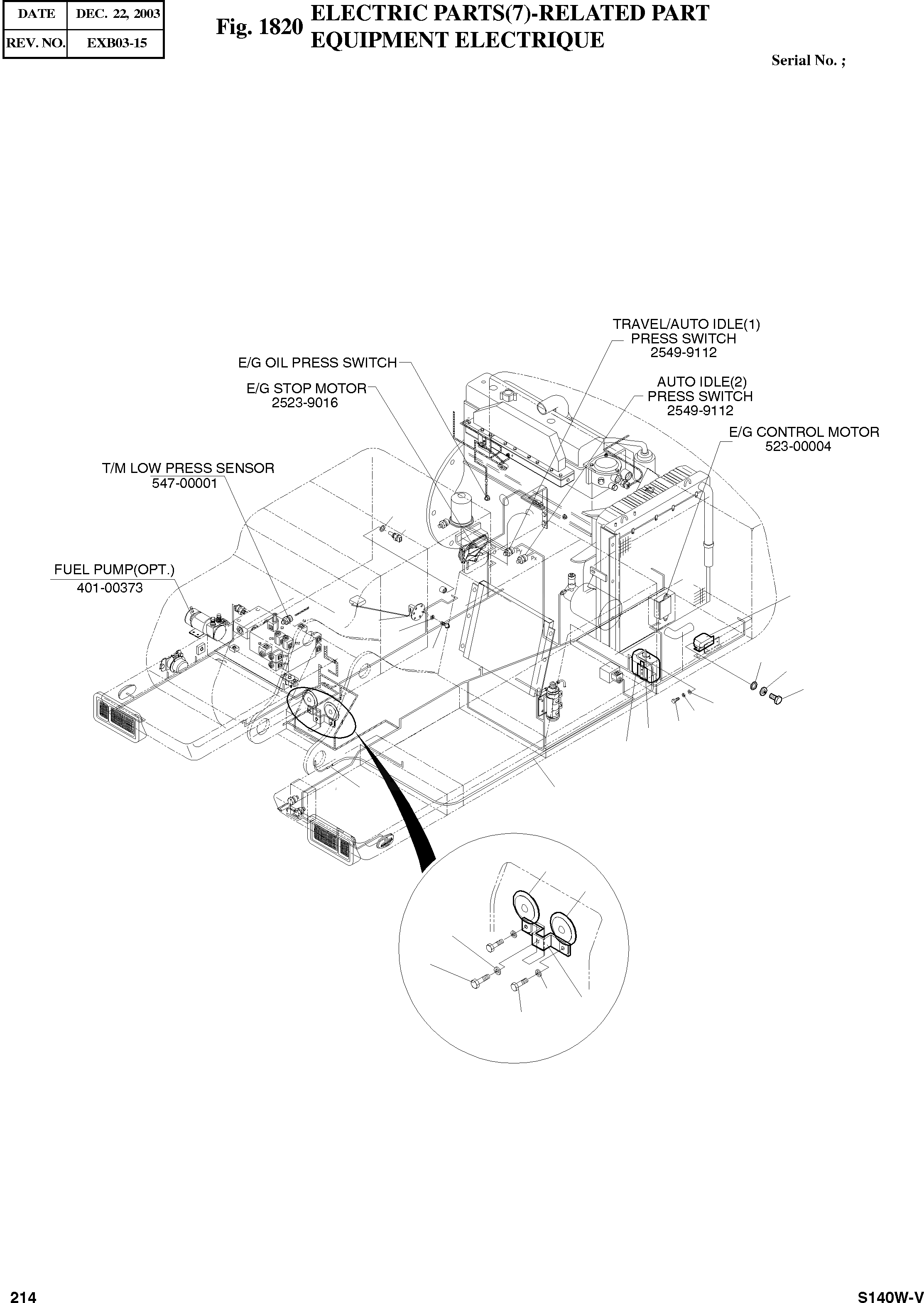

Запчасти Doosan Daewoo ELECTRIC PARTS(7)-RELATED PART BODY PARTS

-

500-00198

ELECTRIC PARTS

SC: D

-2шт.

26

2554-9005A

WINDOW-WASHER

desc: FENETRE

1шт.

27

2195-1534

BRACKET

desc: SUPPORT

1шт.

28

S0504453

BOLT M6X1.0X12

desc: BOULON A 6PANS

2шт.

29

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

30

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

2шт.

31

2415-1018

ADAPTER;HOSE

desc: ADAPTEUR

1шт.

32

2185-1681D4

TUBE;CORRUGATE

desc: TUBE

1шт.

47

2197-1897A

BRACKET

desc: SUPPORT

1шт.

48

S0512053

BOLT M10X1.5X12

desc: BOULON A 6PANS

1шт.

49

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

50

516-00005

HORN;HIGH

SERIAL: 1001-1849

1шт.

50

516-00014

HORN;HIGH

SERIAL: 1850

1шт.

51

516-00006

HORN;LOW

SERIAL: 1001-1849

1шт.

51

516-00015

HORN;LOW

SERIAL: 1850

1шт.

52

S0508653

BOLT M8X1.25X16

desc: BOULON A 6PANS

2шт.

53

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

54

516-00011

BUZZER;BACK

desc: VIBREUR

1шт.

55

S0508453

BOLT M8X1.25X12

desc: BOULON A 6PANS

2шт.

56

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

57

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

2шт.

58

2547-9035

SENSOR;FUEL

SERIAL: 1001-1879

1шт.

58

2547-9035A

SENSOR;FUEL

SERIAL: 1880

1шт.

59

S3450833

BOLT M5X0.8X12

desc: BOULON A 6PANS

6шт.

60

S5100203

WASHER;SPRING M5

desc: RONDELLE ELASTIQUE

6шт.

63

2547-9038B

SENSOR;OIL TEMP

desc: CAPTEUR

1шт.

64

S8180251

PACKING

desc: EMBALLAGE

1шт.
