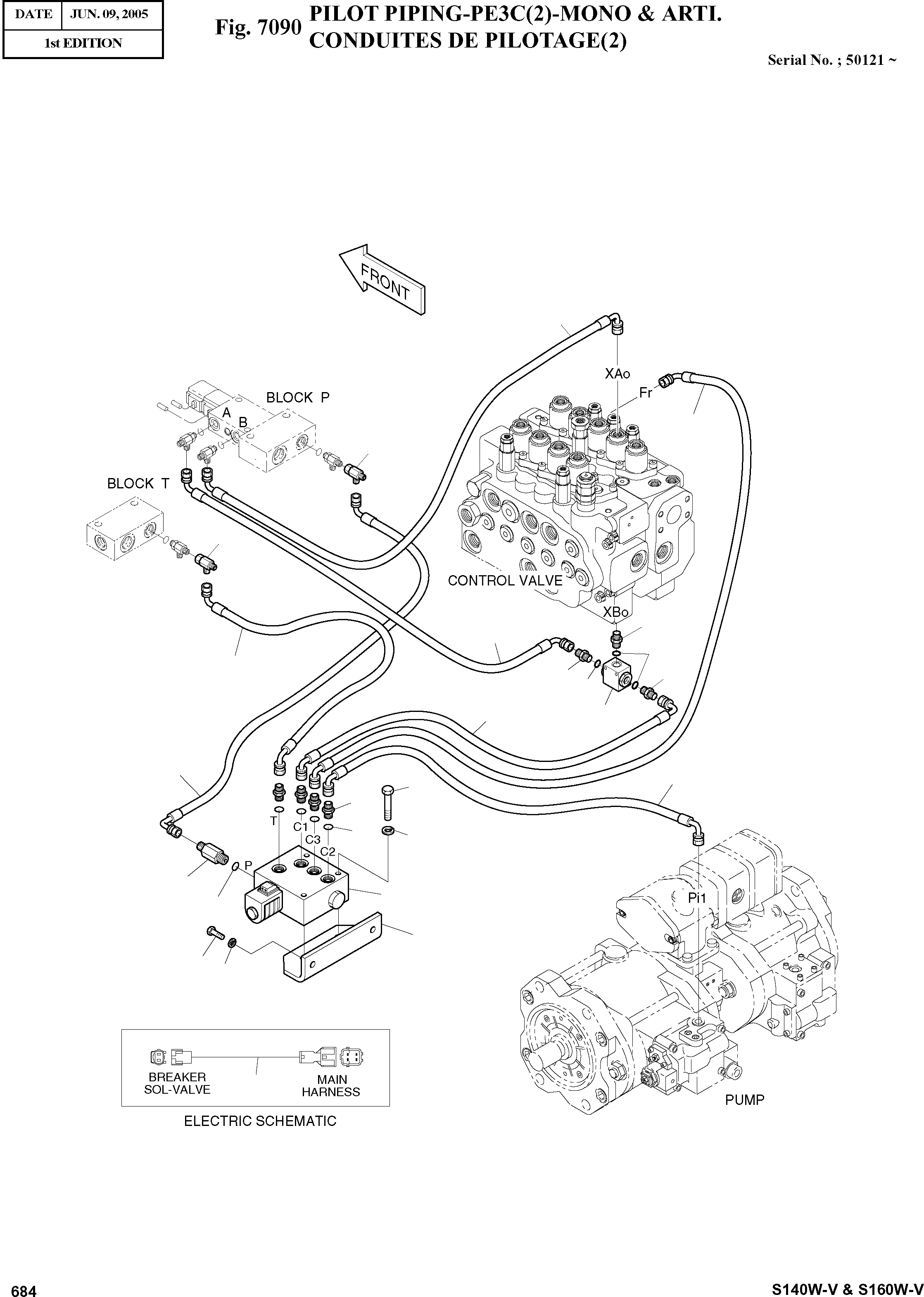

Запчасти Doosan Daewoo PILOT PIPING-PE3C(2)-MONO & ARTI OPTION PARTS

-

9400-1350F1

PILOT PIPING-PE3C-MONO & ARTI

SERIAL: 50121

-2шт.

1

9420-6031C

VALVE;PACKAGE

desc: VANNE

1шт.

2

2891-1403

PLATE

desc: PLAQUE

1шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

4

S0558953

BOLT M10X1.5X70

desc: BOULON

2шт.

5

S0512053

BOLT M10X1.5X25

desc: BOULON

2шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

7

2181-1126D14

ADAPTER

desc: ADAPTEUR

6шт.

8

2181-1126D34

ADAPTER;LONG

desc: ADAPTEUR

1шт.

11

2184-1061D247

HOSE(90-90) 1750L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1061D248

HOSE(90-90) 1850L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1061D8

HOSE(90-90) 2700L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D61

HOSE(90-ST) 1750L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1061D47

HOSE(90-90) 1100L

desc: TUYAU FLEXIBLE

1шт.

16

DS2059008

HOSE(90-90) 2900L

desc: TUYAU FLEXIBLE

1шт.

17

DS2059086

HOSE(90-90) 2600L

desc: TUYAU FLEXIBLE

1шт.

18

9420-9014

TEE;SHUTTLE

desc: TE

1шт.

19

530-00330

HARNESS;BREAKER

desc: HARNAIS

1шт.

20

111-00031D3

ADAPTER

desc: ADAPTEUR

1шт.

21

9180-1001D2

SEAL

desc: JOINT

3шт.

35

181-00673D3

TEE

desc: TE

2шт.
