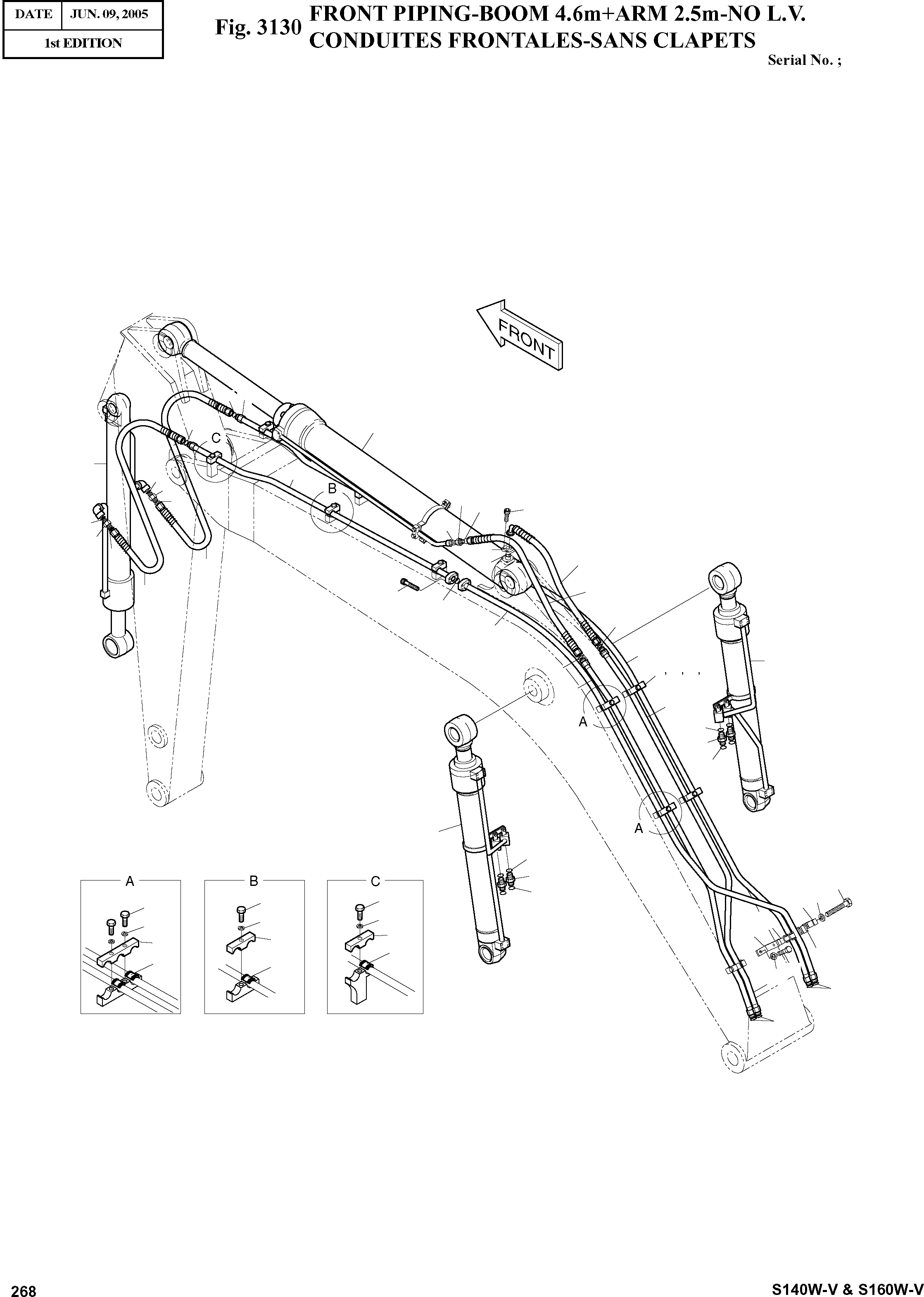

Запчасти Doosan Daewoo FRONT PIPING-BOOM 4.6M+ARM 2.5M- NO L.V FRONT PARTS

-

400-00097

FRONT PIPING

SC: D

-2шт.

1

440-00297

CYLINDER;BOOM(L)

desc: VERIN DE FLECH

1шт.

2

440-00298

CYLINDER;BOOM(R)

desc: VERIN DE FLECH

1шт.

3

2440-9232A

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

4

440-00398

CYLINDER;BUCKET

desc: VERIN DE GODET

1шт.

5

2140-1296B

PIPE;ARM CROWD

desc: TUYAU

1шт.

6

2140-1297B

PIPE;ARM DUMP

desc: TUYAU

1шт.

7

2140-1298A

PIPE;BUCKET CROWD

desc: TUYAU

1шт.

8

2140-1299A

PIPE;BUCKET DUMP

desc: TUYAU

1шт.

10

2140-1269B

PIPE;BUCKET

desc: TUYAU

2шт.

11

2184-1200D31

HOSE 730L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1196D65

HOSE 870L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1196D57

HOSE PF1 3/16-1600L

desc: TUYAU FLEXIBLE

2шт.

14

2197-1519A

BRACKET

desc: SUPPORT

2шт.

15

2124-1599

CLAMP

desc: ATTACHE DE TUYAU

2шт.

17

124-00171

CLAMP

desc: ATTACHE DE TUYAU

6шт.

18

2161-2250A

RUBBER

desc: CAOUTCHOUC

36шт.

20

2181-9079

FLANGE;SPLIT

desc: BRIDE

2шт.

21

2181-2627D1

ADAPTER

desc: ADAPTEUR

3шт.

22

S8030121

O-RING

desc: JOINT TORIQUE

11шт.

23

S8000231

O-RING

desc: JOINT TORIQUE

3шт.

24

2181-4133D3

ADAPTER

desc: ADAPTEUR

4шт.

25

S8030081

O-RING

desc: JOINT TORIQUE

4шт.

26

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

27

2180-1026D2

O-RING

desc: JOINT TORIQUE

3шт.

28

S2212366

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

8шт.

29

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

30

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

2шт.

31

S0560853

BOLT M12X1.75X55

desc: BOULON A 6 PANS

14шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

18шт.

33

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

2шт.

34

124-00166

CLAMP;PIPE

desc: FIXATION DE TUYAU

4шт.
