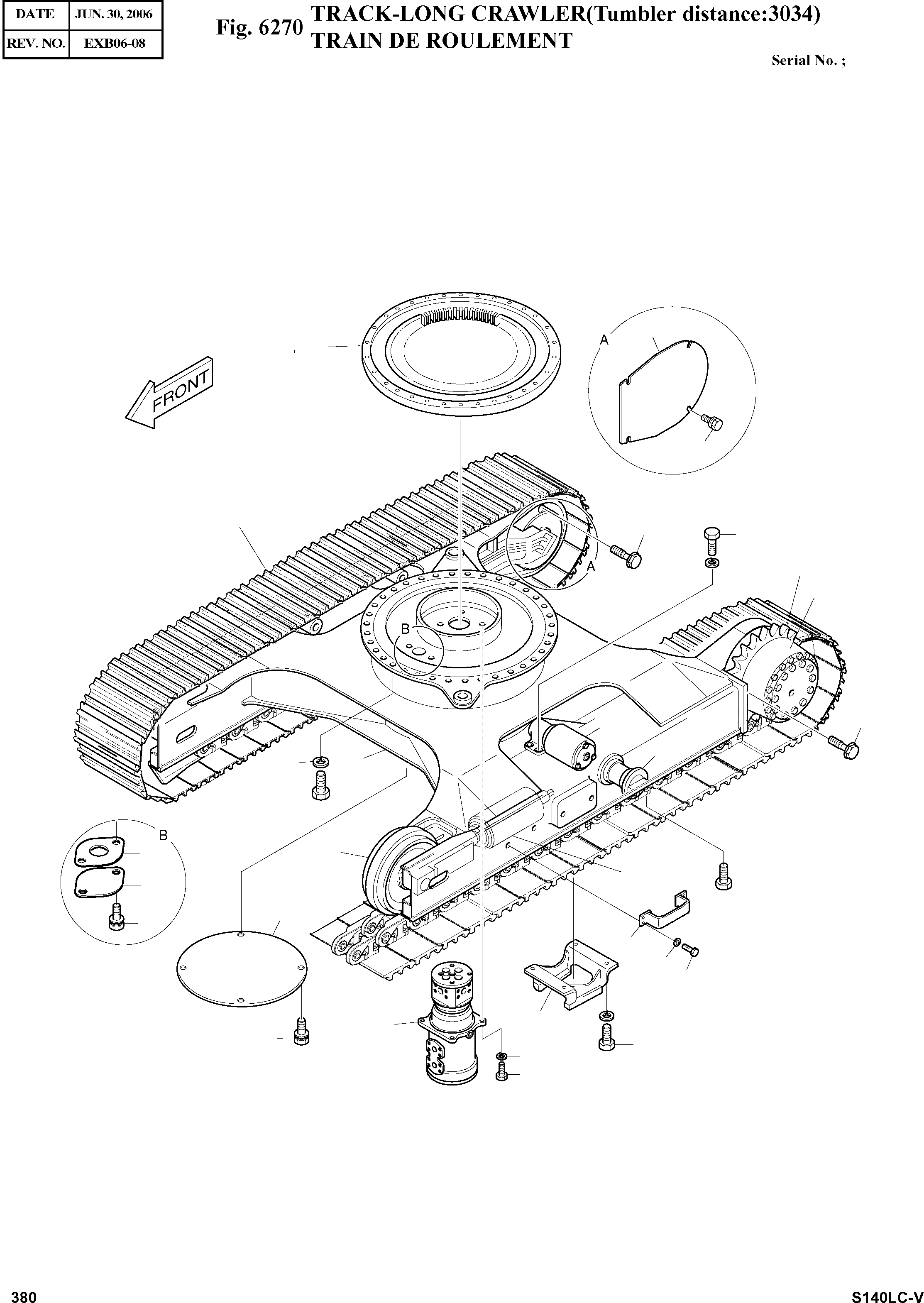

Запчасти Doosan Daewoo TRACK-LONG CRAWLER(TUMBLER DISTANCE:3034) OPTION PARTS

-

2604-1374

TRACK ASS'Y-LONG CRAWLER

SC: D

-2шт.

1

604-00180

FRAME;TRACK

desc: TRAIN DE ROULEMENT

1шт.

2

109-00165

BEARING;SWING

desc: PALIER D'ORIENTATION

1шт.

2A

180-00297D3

SEAL

desc: . JOINT

1шт.

3

2401-9121B

MOTOR;TRAVEL

desc: MOTEUR DE TRANSLATION

2шт.

4

2108-1040B

SPROCKET

desc: COURONNE DENTEE

2шт.

5

2274-1034C

TRACK SPRING ASS'Y

SERIAL: 1001-1154

2шт.

5

K1001025

TRACK SPRING ASS'Y

SERIAL: 1155

2шт.

6

2270-1052

IDLER ASS'Y

SERIAL: 1001-1154

2шт.

6

K1000779

IDLER ASS'Y

SERIAL: 1155-1698

2шт.

6

K1000779A

IDLER ASS'Y

SERIAL: 1699

2шт.

7

2272-1080D2

TRACK SHOE ASS'Y-600G

desc: ENSEMBLE CHENILLE

2шт.

8

2270-1061

ROLLER;LOWER

desc: ENSEMBLE GALET INFERIEUR

14шт.

9

2270-1062

ROLLER;UPPER

desc: ENSEMBLE GALET SUPERIEUR

2шт.

10

2480-6060

CENTER JOINT

desc: JOINT TOURNANT

1шт.

11

2623-1208B

GUARD

desc: PROTECTION

2шт.

13

2403-1002

PLATE

desc: COUVERCLE

1шт.

14

2180-1017A

PACKING

desc: RONDELLE ETANCHE

1шт.

15

2621-1428B

COVER

desc: COUVERCLE

1шт.

16

2621-3734

COVER

desc: COUVERCLE

2шт.

23

2114-9012A

WASHER;HARDEN

desc: RONDELLE

36шт.

25

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

28шт.

26

S5102903

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

27

2120-2196D1

BOLT;SET M10X1.5X20

desc: BOULON A 6 PANS

2шт.

28

2120-2196D2

BOLT;SET M10X1.5X20

desc: BOULON A 6 PANS

20шт.

29

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

30

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

24шт.

31

S0721466

BOLT M16X1.5X40

desc: BOULON A 6 PANS

8шт.

32

S0765766

BOLT M16X1.5X75

desc: BOULON A 6 PANS

56шт.

33

120-00050B

BOLT;FLANGE

desc: BOULON A 6 PANS

70шт.

34

S0770266

BOLT M20X1.5X70

desc: BOULON A 6 PANS

36шт.

35

2195-2527AD1

BRACKET

desc: SUPPORT

4шт.
