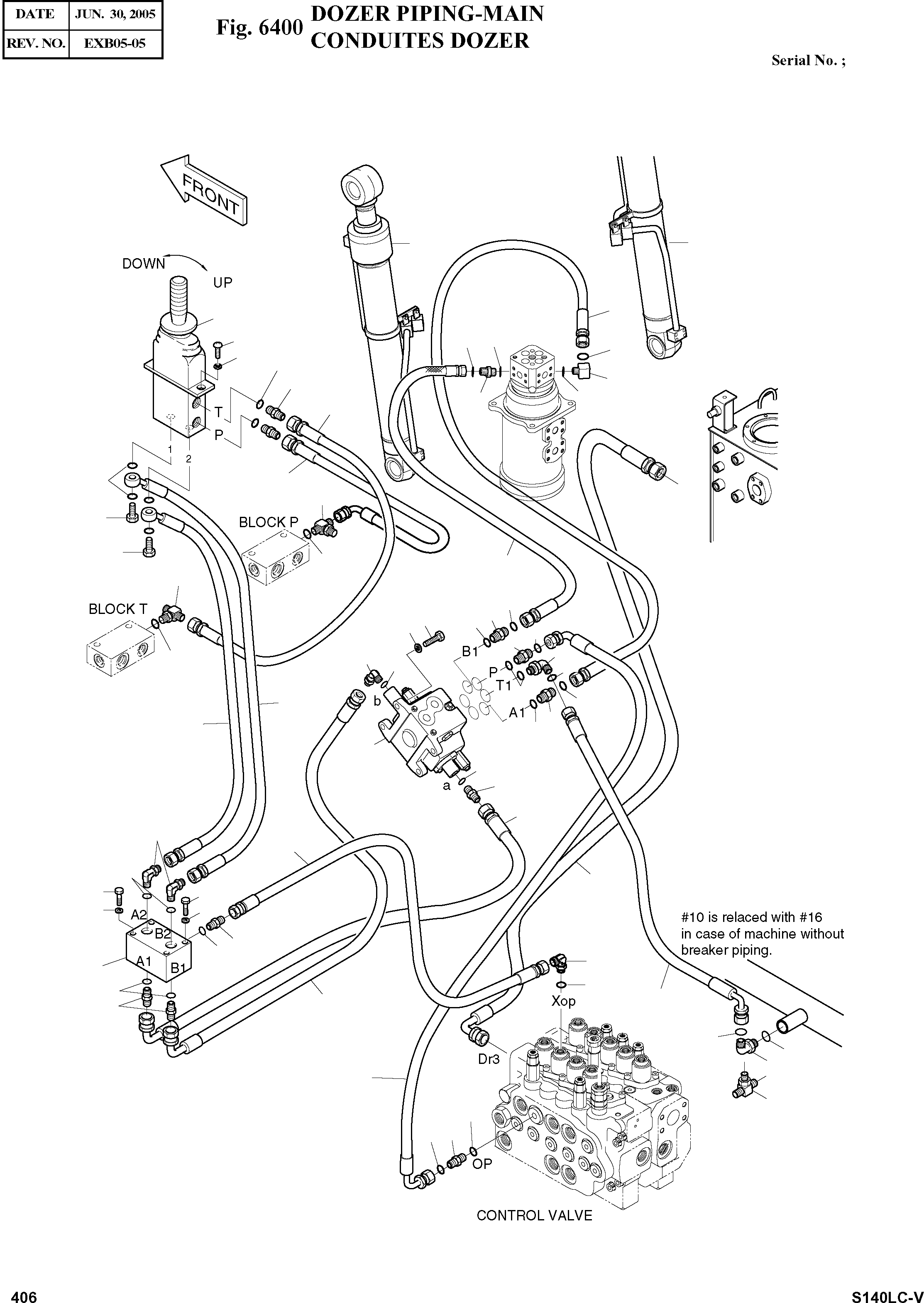

Запчасти Doosan Daewoo DOZER PIPING-MAIN OPTION PARTS

-

400-01711

DOZER PIPING

SC: D

-2шт.

1

K1004312

VALVE;CONTROL

desc: VANNE

1шт.

2

420-00377

VALVE;REMOCON

desc: VANNE

1шт.

3

2420-9158

VALVE;SHUTTLE

desc: VANNE

1шт.

4

S0558353

BOLT M10X1.5X40

desc: BOULON A 6 PANS

4шт.

5

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

6

S3450973

SCREW

desc: VIS

2шт.

7

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

8

S0556553

BOLT M8X1.25X60

desc: BOULON A 6 PANS

2шт.

9

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

10

2181-2293D3

TEE

desc: TE

1шт.

11

2181-2627D1

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

12

S8000231

O-RING

desc: JOINT TORIQUE

5шт.

13

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

14

2181-2294D6

ELBOW

desc: COUDE

1шт.

15

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

16

2181-2294D10

ELBOW;S

desc: COUDE

1шт.

17

2181-2627D2

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

18

S8030081

O-RING

desc: JOINT TORIQUE

4шт.

19

2181-4133D3

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

20

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

21

2181-2815D3

ELBOW

desc: COUDE

1шт.

22

S8180221

PACKING

desc: JOINT

6шт.

23

S8000111

O-RING

desc: JOINT TORIQUE

7шт.

24

2181-1917D4

ADAPTER;S

desc: RACCORD ADAPTATEUR

2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

26

2181-1702D4

ELBOW

desc: COUDE

3шт.

27

2120-1475

BOLT;HOLLOW

desc: BOULON A 6 PANS

2шт.

28

2181-1126D14

ADAPTER;S

desc: RACCORD ADAPTATEUR

4шт.

29

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

30

2181-2281D4

TEE PF3/8-2PF1/4

desc: TE

1шт.

31

2184-1198D60

HOSE UNF3/16-1200L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1197D32

HOSE UNF3/16-1100L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1196D141

HOSE UNF13/16-590L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1196D130

HOSE UNF13/16-850L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

37

2184-9081

HOSE;BANJO PF1/4-1400L

desc: TUYAU FLEXIBLE

2шт.

38

2184-1045D110

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1045D124

HOSE PF1/4-2100L

desc: TUYAU FLEXIBLE

1шт.

40

2440-9354A

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE

1шт.

41

2440-9355A

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE

1шт.

42

2184-1046D206

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

43

181-00488D1

TEE 2PF3/8-PF1/4

desc: TE

1шт.

44

2184-1046D121

HOSE PF1/4-2240L

desc: TUYAU FLEXIBLE

1шт.
