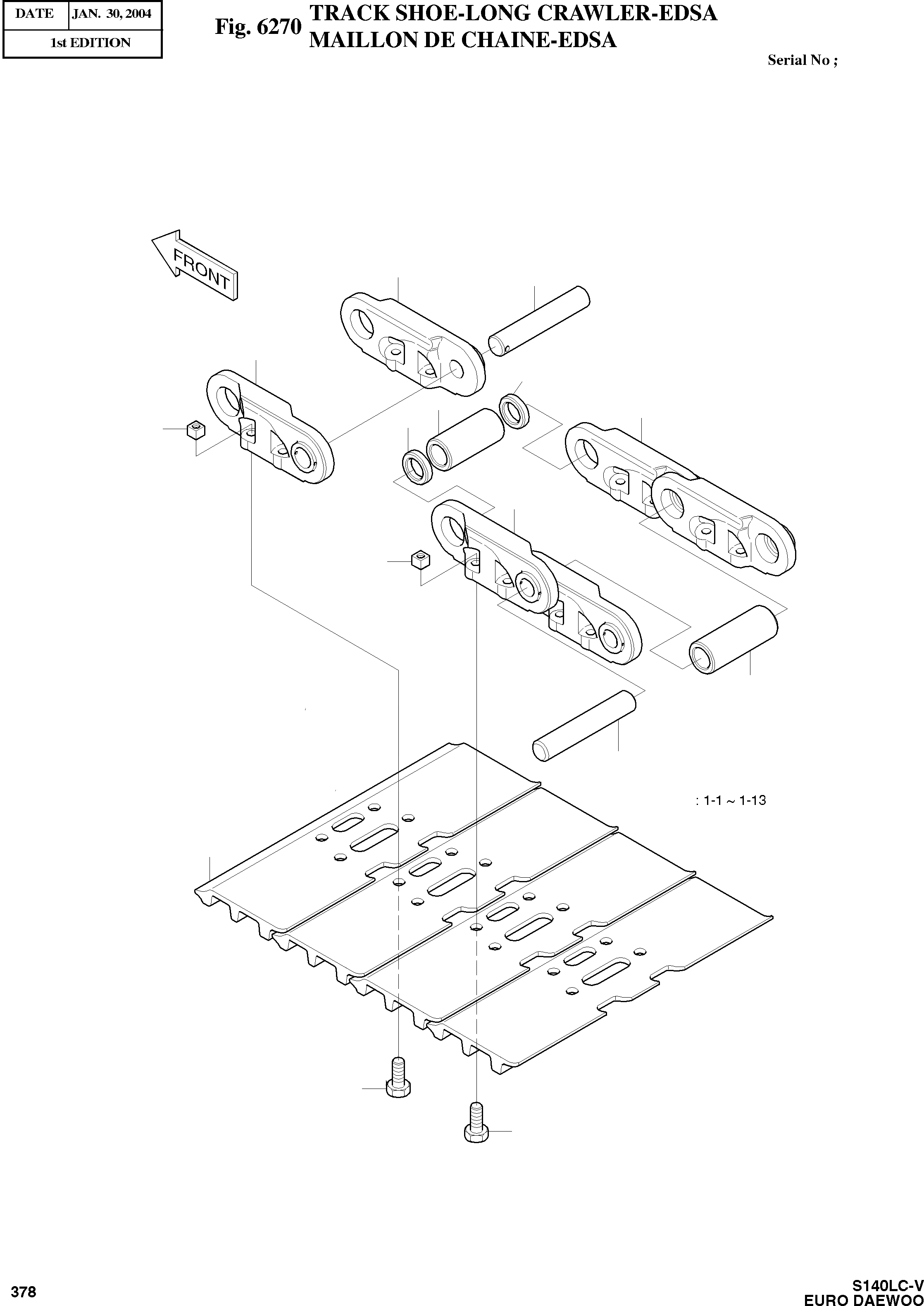

Запчасти Doosan Daewoo TRACK SHOE-LONG CRAWLER-EDSA OPTION PARTS

1

9273-6007D4

TRACK SHOE ASS'Y 500 (LC)

desc: ENSEMBLE CHENILLE

2шт.

1

9273-6007D6

TRACK SHOE ASS'Y 700 (LC)

desc: ENSEMBLE CHENILLE

2шт.

1

9273-6007D7

TRACK SHOE ASS'Y 800 (LC)

desc: ENSEMBLE CHENILLE

2шт.

1-1

9272-6017

LINK;TRACK(R.H)

desc: . MAILLON

45шт.

1-2

9272-6016

LINK;TRACK (RH)

desc: . MAILLON

45шт.

1-3

9123-6009

PIN;TRACK

desc: . GOUJON

45шт.

1-4

9110-6004

BUSHING;TRACK

desc: . MANCHON

45шт.

1-5

9123-6010

PIN;MASTER

desc: . GOUPILLE

1шт.

1-6

9110-6005

BUSHING;MASTER

desc: . DOUILLE

1шт.

1-7

9114-6006

SPACER

desc: . DOUILLE D'ESPACEMENT

2шт.

1-8

9272-6017

LINK;MASTER(R.H)

desc: . MAILLON

1шт.

1-9

9272-6016

LINK;MASTER(L.H)

desc: . MAILLON

1шт.

1-11

9120-6006D2

BOLT M16X15

desc: . BOULON A 6 PANS

184шт.

1-12

9121-6005D2

NUT

desc: . ECROU

184шт.

1-13

9272-6005D1

SHOE 500mm

desc: . SABOT

46шт.

1-13

9272-6005D3

SHOE 700mm

desc: . SABOT

46шт.

1-13

9272-6005D4

SHOE 800mm

desc: . SABOT

46шт.
