Запчасти Doosan Daewoo STEER PIPING POWER TRAIN

-

2400-2034

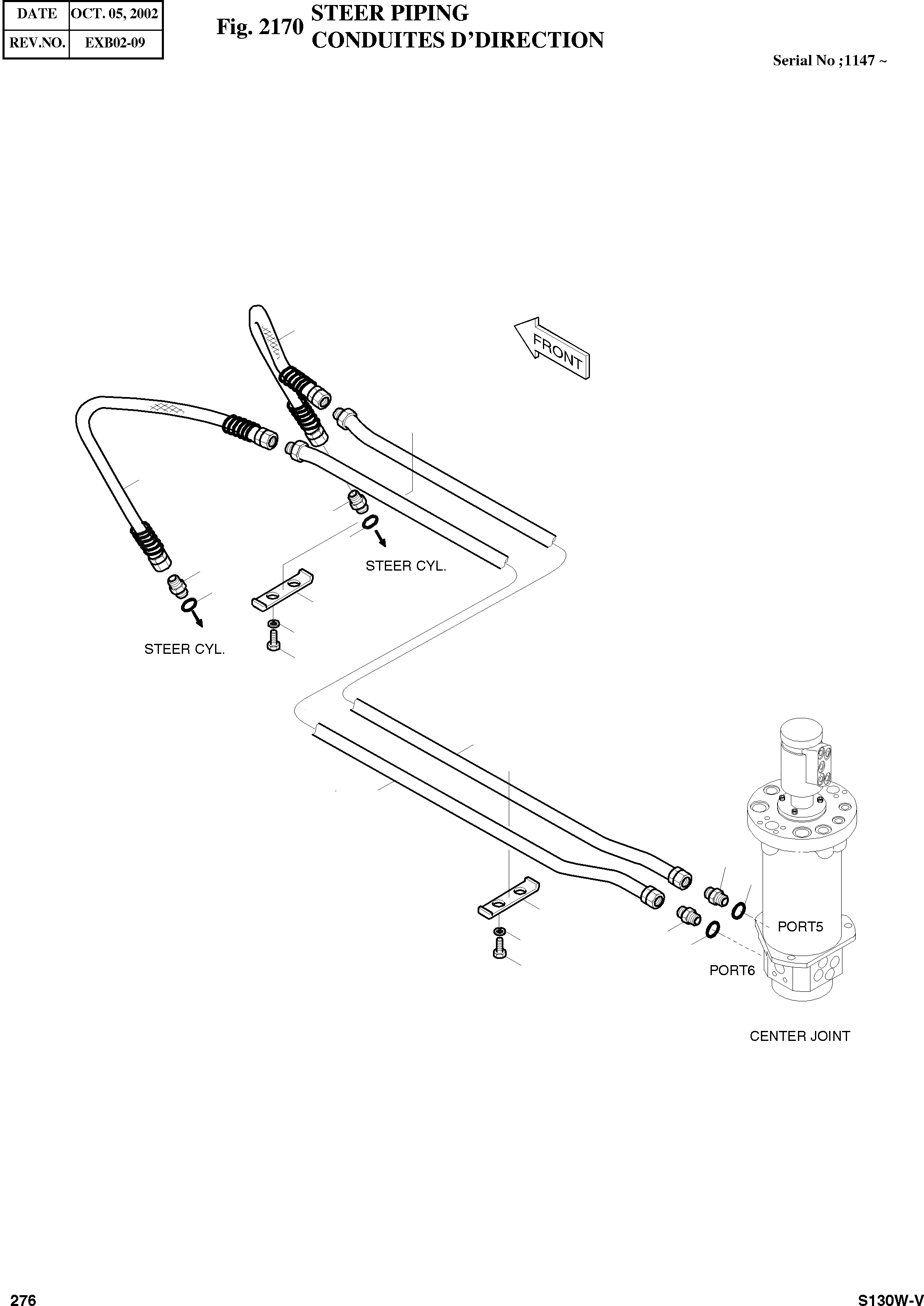

STEER & CHOCK PIPING

SERIAL: 1147

-2шт.

1

140-00076

PIPE

desc: TUYAU

1шт.

2

140-00077

PIPE

desc: TUYAU

1шт.

3

2184-1026D82

HOSE

desc: TUYAU FLEXIBLE

2шт.

4

2181-1126D30

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

5

S8000161

O-RING

desc: JOINT TORIQUE

2шт.

6

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

2шт.

7

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

19

2124-1486A

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

20

S0558253

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

21

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.
