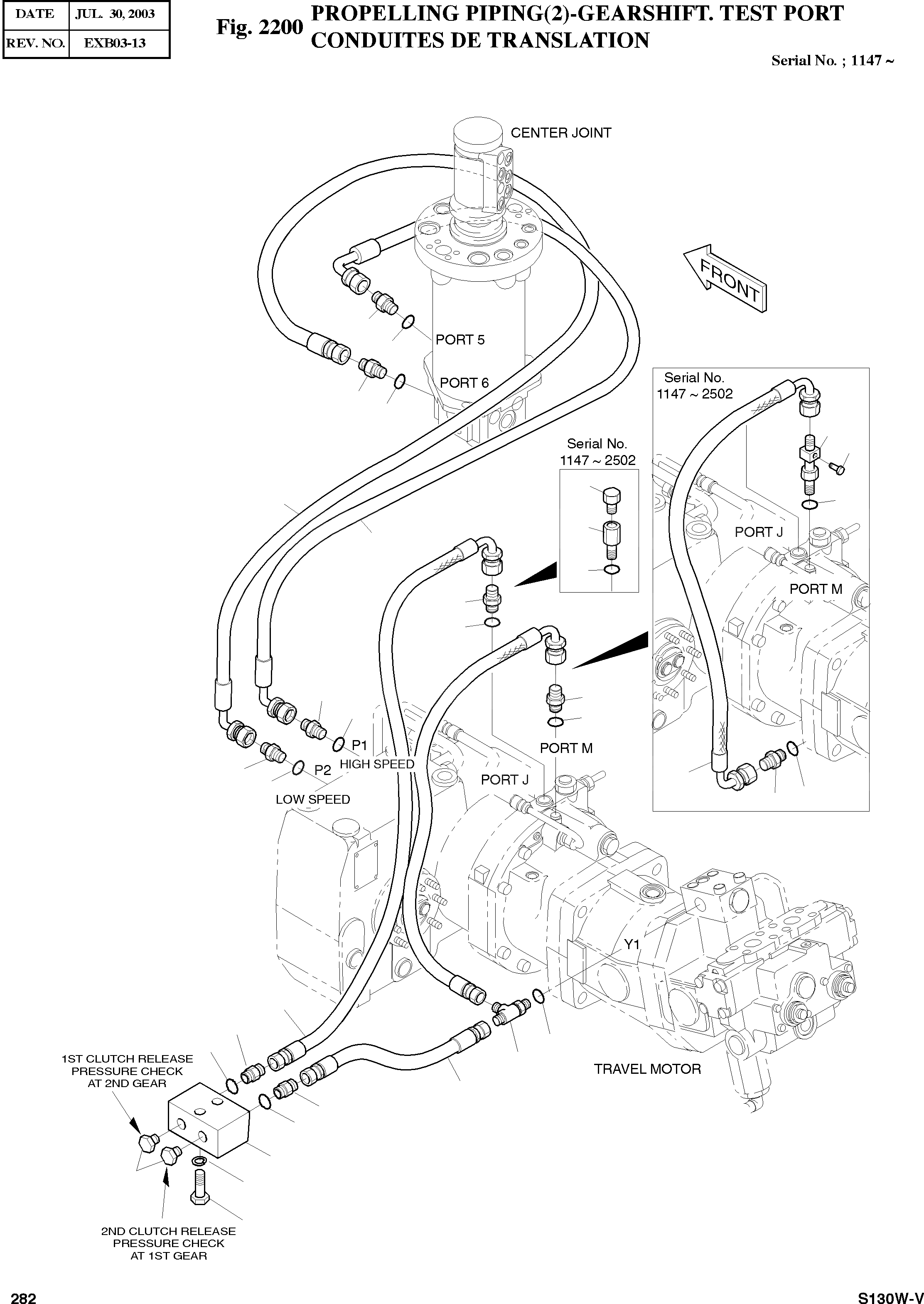

Запчасти Doosan Daewoo PROPELLING PIPING(2)-GEARSHIFT.TEST PORT POWER TRAIN

-

2400-2031

PROPELLING PIPING

SERIAL: 1147

-2шт.

2

2184-1036D2

HOSE PF3/8-600L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1061D297

HOSE PF1/4-450L

SERIAL: 1147-2502

1шт.

6

2184-1046D204

HOSE PF1/4-340L

SERIAL: 2503

1шт.

7

2184-1061D276

HOSE PF3/8-630L

desc: TUYAU FLEXIBLE

1шт.

14

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

2шт.

15

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

16

2181-1126D56

ADAPTER M16X1.5XPF1/2

desc: RACCORD ADAPTATEUR

2шт.

17

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1147-2502

1шт.

17

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 2503

2шт.

18

S8000111

O-RING

SERIAL: 1147-2502

1шт.

18

S8000111

O-RING

SERIAL: 2503

3шт.

21

S8000121

O-RING

desc: JOINT TORIQUE

2шт.

24

2181-2201D3

ADAPTER M14X1.5 M10X1.0

SERIAL: 1147-2502

1шт.

24

2181-1126D128

ADAPTER M14X1.5 PT1/4

SERIAL: 2503

2шт.

25

2181-2047

PLUG M10X1.0

desc: BOUCHON

1шт.

28

2181-2731

ADAPTER M14X1.5 PF1/4 M10X1.0

SERIAL: 1147-2502

1шт.

37

2423-1503

BLOCK

SERIAL: 2503

1шт.

38

S5102503

WASHER;SPRING M8

SERIAL: 2503

2шт.

39

S0556253

BOLT M8X1.25X45

SERIAL: 2503

2шт.

40

2181-1951D1

TEE 3PF1/4

SERIAL: 2503

1шт.

41

2184-1046D35

HOSE PF1/4-680L

SERIAL: 2503

1шт.

42

2184-1045D88

HOSE PF1/4-680L

SERIAL: 2503

1шт.
