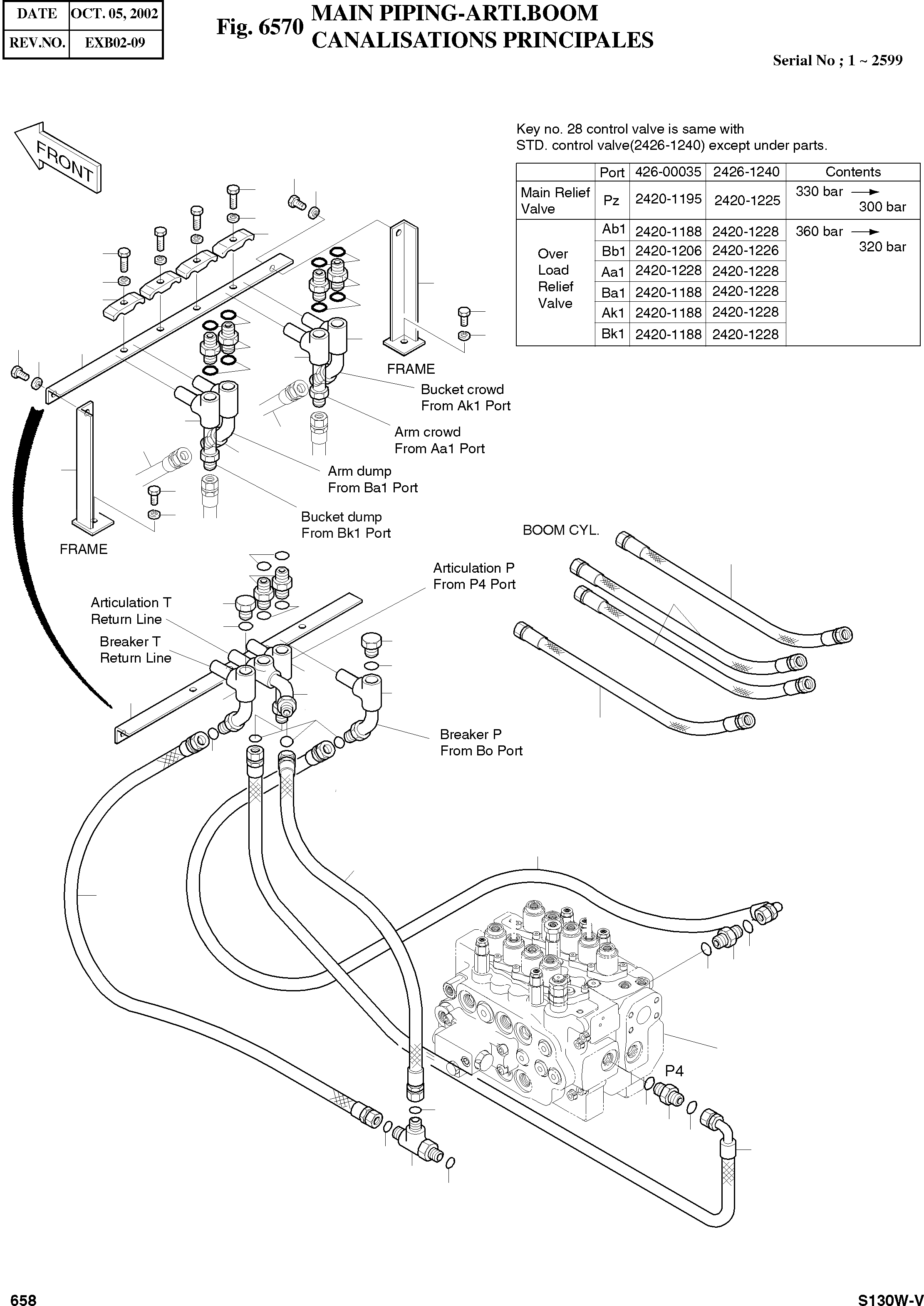

Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PARTS

-

2400-2057

ARTICULATION MAIN PIPING

SERIAL: 1-2599

-2шт.

1

2183-3474

PIPE

desc: CONDUITE

4шт.

2

2183-3470

PIPE

desc: CONDUITE

3шт.

5

2183-3473

PIPE

desc: CONDUITE

1шт.

7

2197-2523

SUPPORT

desc: SUPPORT

1шт.

8

2197-2474A

SUPPORT

desc: SUPPORT

1шт.

9

2197-2475A

SUPPORT

desc: SUPPORT

1шт.

12

2184-1196D69

HOSE PF3/4-1050L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1197D5

HOSE 1 3/16"12UN-28 1300L

desc: TUYAU FLEXIBLE

3шт.

14

2184-1197D7

HOSE PF3/4-1500L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1212D19

HOSE 3/4-1300L

desc: TUYAU FLEXIBLE

1шт.

16

2181-2293D1

TEE UNF1 3/16-12-PF3/4

desc: TE

1шт.

18

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

19

S0560953

BOLT M12X1.75X60

desc: BOULON A 6 PANS

4шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

21

2124-1025D3

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

22

2181-1950D5

PLUG PF3/4

desc: BOUCHON

2шт.

23

2181-4133D5

ADAPTER UNF1 3/16-12-PF3/4

desc: RACCORD ADAPTATEUR

8шт.

24

S8000241

O-RING P24

desc: JOINT TORIQUE

11шт.

25

S8030121

O-RING F12

desc: JOINT TORIQUE

14шт.

26

2184-1196D70

HOSE PF3/4-830L

desc: TUYAU FLEXIBLE

2шт.

27

2184-1196D71

HOSE PF3/4-870L

desc: TUYAU FLEXIBLE

2шт.

28

426-00035

CONTROL VALVE

SERIAL: 1024-1254

1шт.

28

426-00035A

CONTROL VALVE

SERIAL: 1255-1835

1шт.

28

426-00035B

CONTROL VALVE

SERIAL: 1836-2050

1шт.

28

426-00035C

CONTROL VALVE

SERIAL: 2051

1шт.
