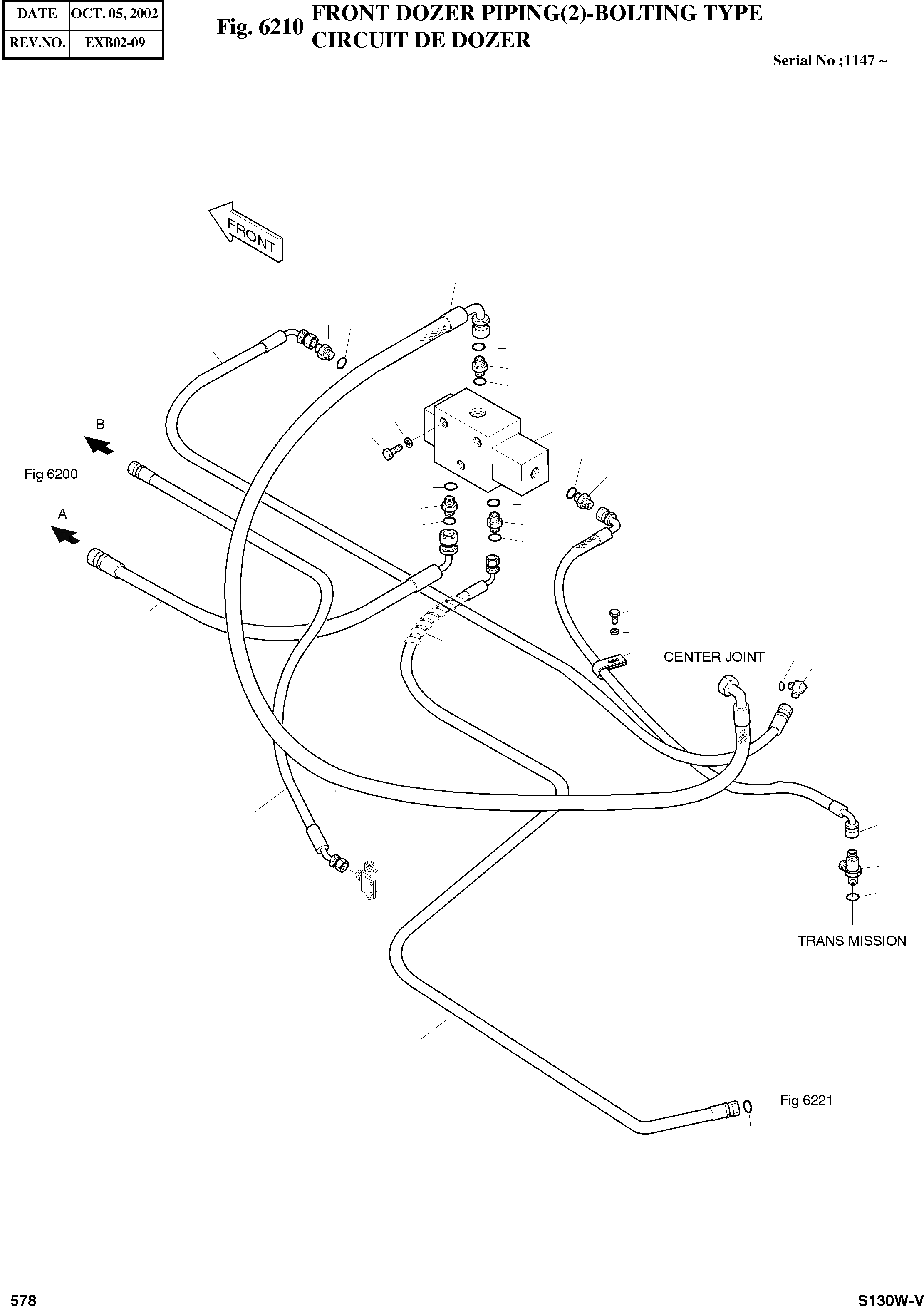

Запчасти Doosan Daewoo FRONT DOZER PIPING(2)-BOLTING TYPE OPTION PARTS

-

400-00081

FRONT DOZER PIPING

SERIAL: 1147

-2шт.

1

2426-9041

VALVE;SELECTOR

desc: VANNE

1шт.

2

S2213061

BOLT;SOCKET M10X1.5X70

SERIAL: 1147-2080

3шт.

2

S2213066

BOLT;SOCKET M10X1.5X70

SERIAL: 2081

3шт.

3

S5110601

WASHER;SPRING M10

SERIAL: 1147-2080

3шт.

3

S5110603

WASHER;SPRING M10

SERIAL: 2081

3шт.

18

2184-1212D39

HOSE 1/2-1350L

desc: TUYAU FLEXIBLE

1шт.

21

2184-1198D54

HOSE 1/2-1700L

desc: TUYAU FLEXIBLE

1шт.

23

2181-1951D37

TEE M14X1.5-PF1/2-PF1/4

desc: TE

1шт.

24

2181-2627D2

ADAPTER UNF13/16-PFO3/4

desc: RACCORD ADAPTATEUR

3шт.

25

S8000231

O-RING

desc: JOINT TORIQUE

3шт.

27

2184-1061D208

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

28

2184-1046D107

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1197D129

HOSE PF1/2-800L

desc: TUYAU FLEXIBLE

1шт.

32

2181-1702D4

ELBOW PF1/4

desc: COUDE

1шт.

33

S8000111

O-RING 1/4

desc: JOINT TORIQUE

3шт.

34

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

38

S8000121

O-RING

desc: JOINT TORIQUE

1шт.

42

2184-1197D128

HOSE PF1/2-2750L

desc: TUYAU FLEXIBLE

1шт.

45

2158-1003D34

PROTECTOR;HOSE 800L

desc: PROTECTEUR

1шт.

47

S8030081

O-RING UNF13/16

desc: JOINT TORIQUE

4шт.

49

S0508853

BOLT M8X1.25X20

SERIAL: 2030

1шт.

50

S5102503

WASHER;SPRING

SERIAL: 2030

1шт.

51

2124-1509D6

CLIP

SERIAL: 2030

1шт.
