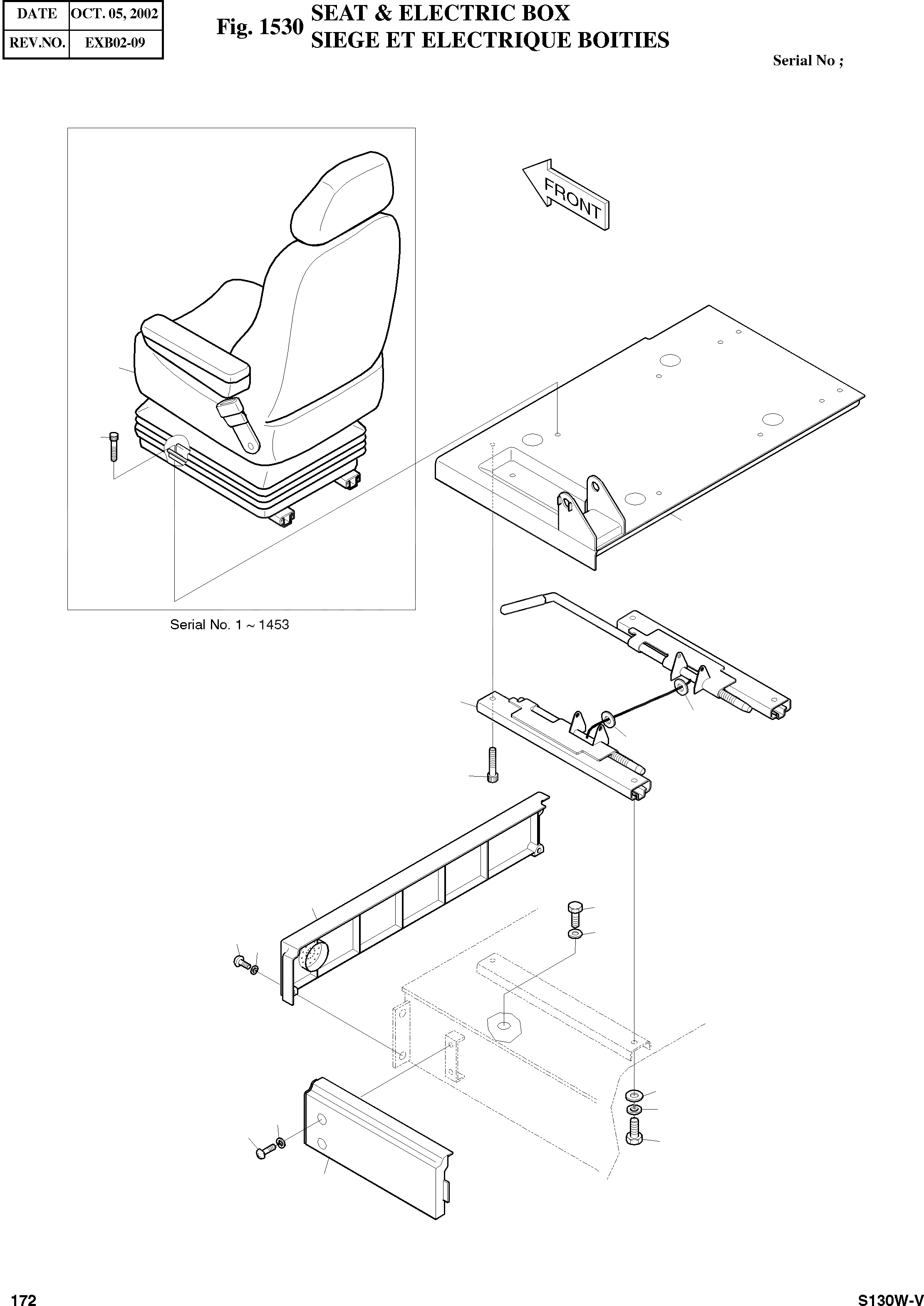

Запчасти Doosan Daewoo SEAT & ELECTRIC BOX BODY PARTS

-

2197-1825F1C

CONTROL STAND ASS'Y

SERIAL: 1-707

-2шт.

-

2197-1825F1E

CONTROL STAND ASS'Y

SERIAL: 708-750

-2шт.

-

2197-1825F1G

CONTROL STAND ASS'Y

SERIAL: 751-1250

-2шт.

-

2197-1825F1H

CONTROL STAND ASS'Y

SERIAL: 1251-2509

-2шт.

-

2197-1825F1K

CONTROL STAND ASS'Y

SERIAL: 2510

-2шт.

2

2194-9005A

RAIL;SEAT

SERIAL: 1-360

1шт.

2

2194-9005B

RAIL;SEAT

SERIAL: 361-1453

1шт.

2

2194-9005C

RAIL;SEAT

SERIAL: 1454

1шт.

3

2901-9026

SEAT(EUROPE & USA)

SERIAL: 1-1453

1шт.

3

2901-9034

SEAT(EXCEPT EUROPE&USA)

SERIAL: 751-1453

1шт.

4

2901-1078B

SEAT PLATE ASS'Y

SERIAL: 1-707

1шт.

4

2901-1078C

SEAT PLATE ASS'Y

SERIAL: 708-1453

1шт.

4

2901-1078E

SEAT PLATE ASS'Y

SERIAL: 1454

1шт.

21

2621-3743

COVER;BOX(FRONT)

desc: COUVERCLE

1шт.

22

2120-2166D7

SCREW

desc: BOULON A 6 PANS

6шт.

23

2114-1898D3

WASHER

desc: RONDELLE

6шт.

24

2621-3870

COVER;BOX(LH)

desc: COUVERCLE

1шт.

28

S0514853

BOLT M12X1.75X20

desc: BOULON A 6 PANS

4шт.

32

2120-2166D5

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

34

S5020513

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

37

2114-1898D4

WASHER

SERIAL: 361

2шт.

39

S2208761

BOLT;SOCKET M8X1.25X18

SERIAL: 1-1453

8шт.

39

S2208761

BOLT;SOCKET M8X1.25X18

SERIAL: 1454

4шт.

47

2114-1058D46

WASHER

desc: RONDELLE

4шт.
