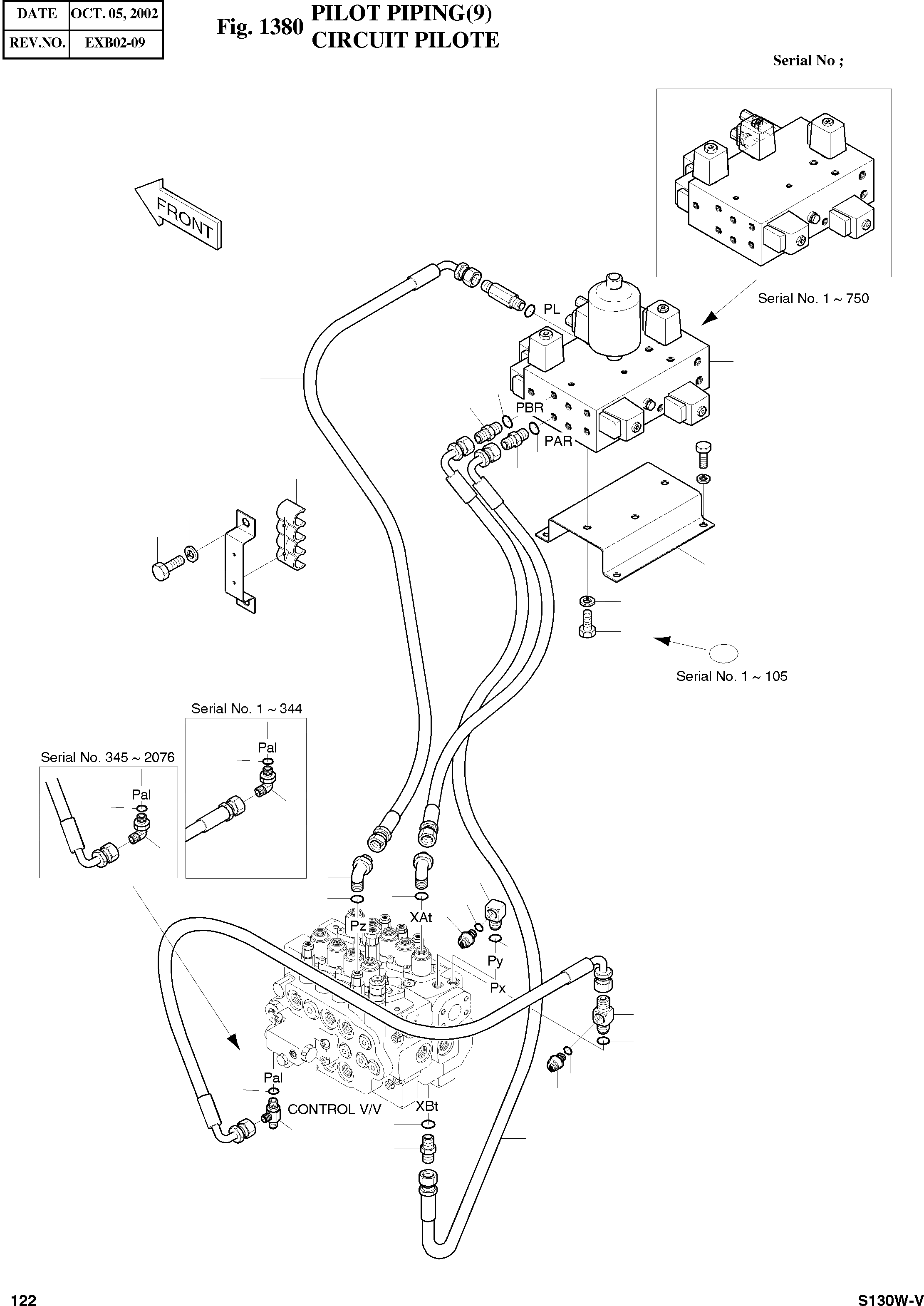

Запчасти Doosan Daewoo PILOT PIPING(9) BODY PARTS

-

2400-1781A

PILOT PIPING

SERIAL: 1-2050

-2шт.

-

2400-1781B

PILOT PIPING

SERIAL: 2051

-2шт.

8

S8000141

O-RING 3/8

desc: JOINT TORIQUE

2шт.

13

S8000111

O-RING 1/4

desc: JOINT TORIQUE

9шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

24

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

25

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD

1шт.

26

2420-9248G

VALVE;PILOT SUPPLY

SERIAL: 1-750

1шт.

26

2420-9248H

VALVE;PILOT SUPPLY

SERIAL: 751

1шт.

27

S0511853

BOLT M10X1.5X20

SERIAL: 1-105

7шт.

27

S0511853

BOLT M10X1.5X20

SERIAL: 106

4шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

7шт.

29

2197-1497

BRACKET

desc: SUPPORT

1шт.

31

2181-1126D34

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

43

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 1-2076

2шт.

43

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 2077

1шт.

50

2549-9112

SWITCH;PRESS 19BAR

desc: INTERRUPTEUR

2шт.

51

2181-2295D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

52

2181-2635

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

84

2184-1046D73

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1046D121

HOSE PF1/4-2240L

desc: TUYAU FLEXIBLE

1шт.

97

2184-1046D81

HOSE PF1/4-650L

SERIAL: 1-344

1шт.

97

2184-1061D61

HOSE PF1/4-750L

SERIAL: 345-2696

1шт.

97

2184-1061D58

HOSE PF1/4-670L

SERIAL: 2697

1шт.

117

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

118

2124-1594A

CLAMP;HOSE

desc: ATTACHE DE TUYAU

1шт.

119

2124-1595A

CLAMP;HOSE

desc: ATTACHE DE TUYAU

1шт.

144

S0511653

BOLT M10X1.5X16

SERIAL: 196

3шт.

164

2181-1951D1

TEE 3-PF1/4

SERIAL: 2077

1шт.
