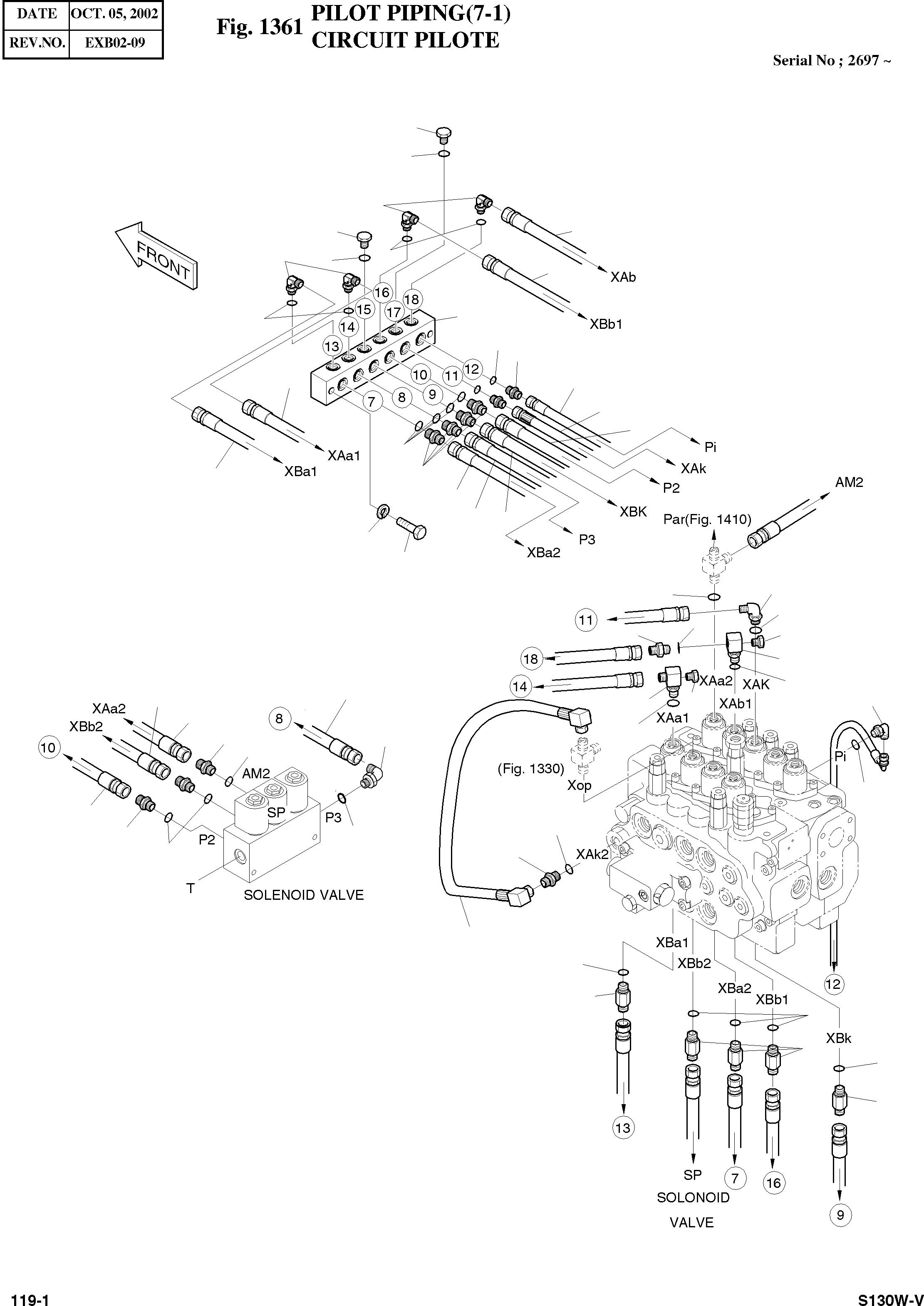

Запчасти Doosan Daewoo PILOT PIPING(7-1) BODY PARTS

-

2400-1781B

PILOT PIPING

SERIAL: 2697

-2шт.

8

S8000141

O-RING 3/8

desc: JOINT TORIQUE

27шт.

10

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

7шт.

11

2181-1126D27

ADAPTER;LONG PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

5шт.

12

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

6шт.

13

S8000111

O-RING 1/4

desc: JOINT TORIQUE

2шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

23

S0512953

BOLT M10X1.5X65

desc: BOULON A 6 PANS

2шт.

25

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE

2шт.

43

2181-1702D4

ELBOW

desc: COUDE

1шт.

60

181-00144D7

ADAPTER;ORIFICE

desc: RACCORD ADAPTATEUR

1шт.

63

2423-1550

BLOCK

desc: BLOC

1шт.

64

2181-1950D2

PLUG PFO3/8

desc: BOUCHON

2шт.

99

2184-1045D206

HOSE PF3/8-200L

desc: TUYAU FLEXIBLE

1шт.

105

2184-1045D206

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

3шт.

106

2184-1045D205

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

5шт.

107

2184-1045D215

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

108

2184-1129D26

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

109

2184-1046D73

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

139

2184-1045D63

HOSE PF3/8-3355L

desc: TUYAU FLEXIBLE

2шт.

153

2181-1702D51

ELBOW

desc: COUDE

1шт.

155

DS2459001

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

165

2181-2590D2

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

166

2181-2047

PLUG

desc: BOUCHON

2шт.
